Burger Motorsports Elite B58 Intake – BMW M240i / 340i / 440i (F2x / F3x)

OVERVIEW

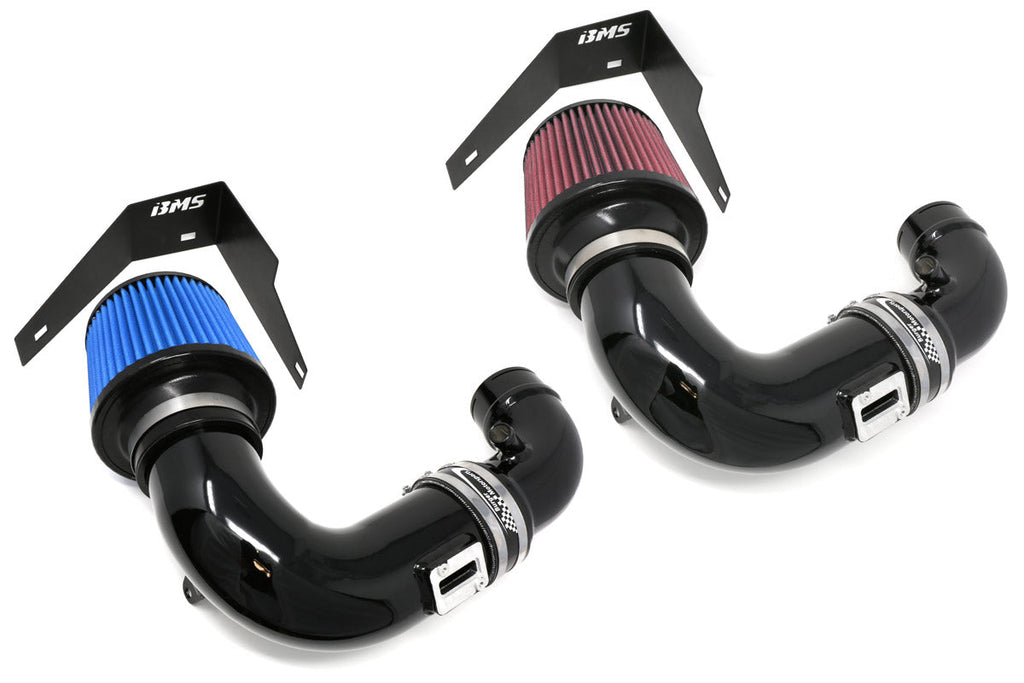

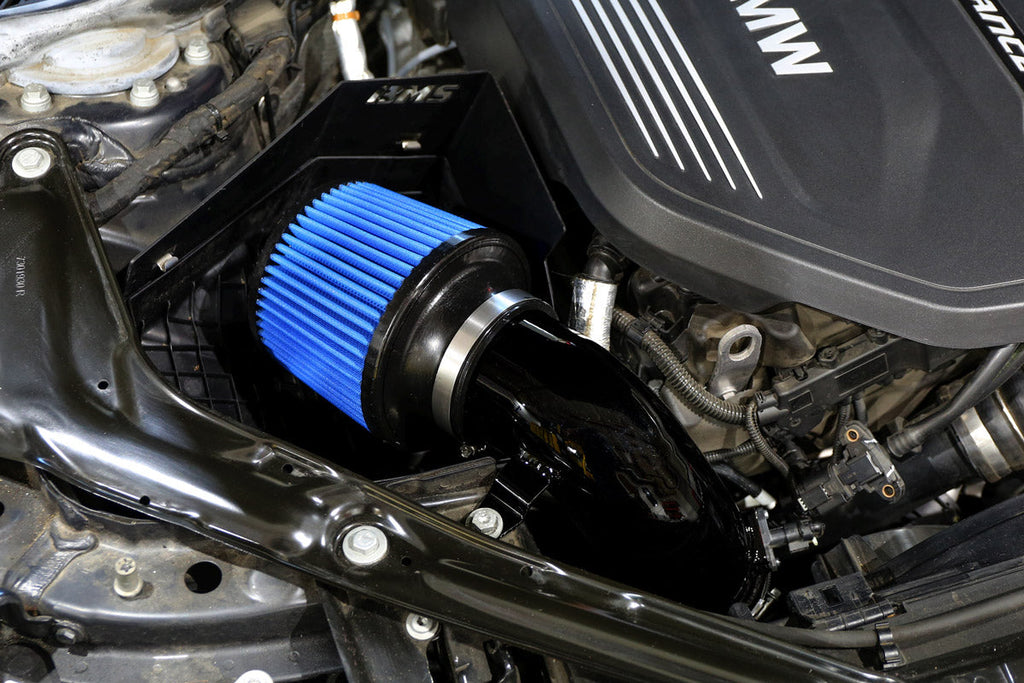

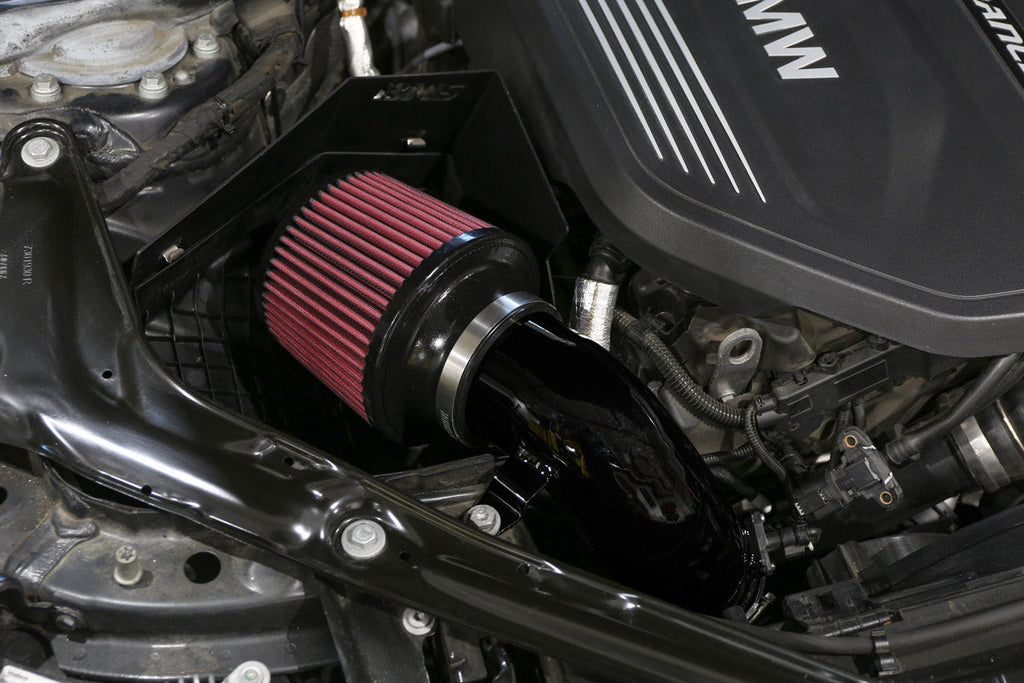

The intake keeps the useful parts of the factory system, the OEM cold air ducting and the airbox base, which acts as a heat shield. It replaces the restrictive upper section with larger high-flow ducting, an upper heat shield and a BMS inverted cone performance filter. In Burger Motorsports' dyno testing it matched or beat other B58 intakes, gaining up to 10+ wheel horsepower at 25+ psi. It also improved turbo spool and gave a big jump in induction sound.

Installation is straightforward and fully reversible. BMS found no meaningful change in intake air temperature compared with the factory intake, at cruise or at full throttle. The filter is cleaned every 15,000–20,000 miles and is designed to last the life of the car.

SPECS

• Adds up to 10+ wheel horsepower (BMS dyno, 25+ psi)
• Improved turbo spool and throttle response
• Dramatic induction sound improvement

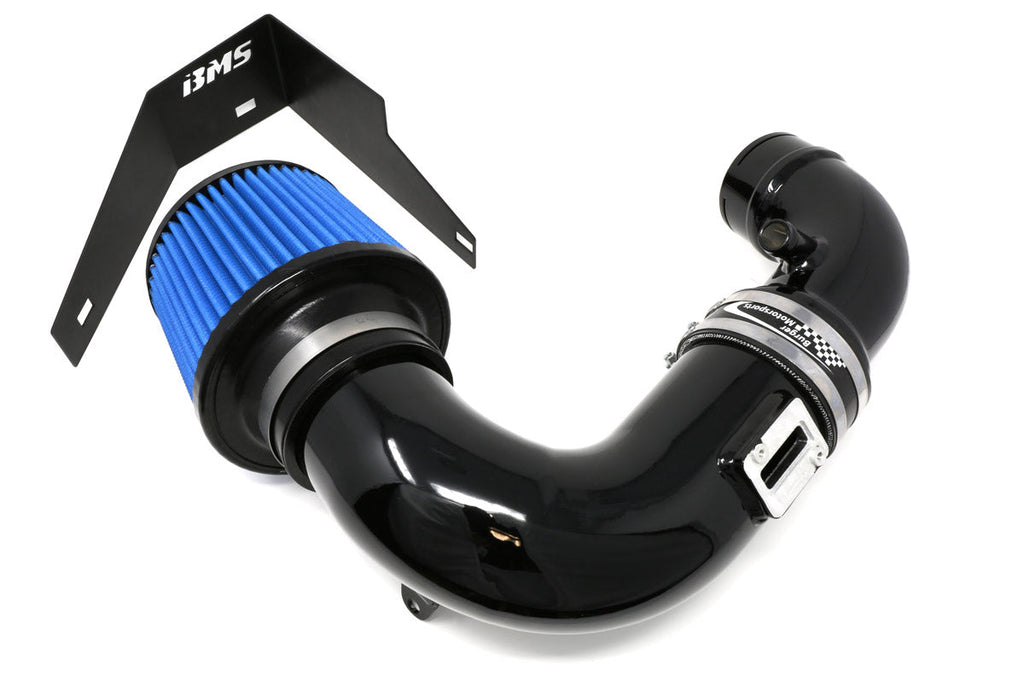

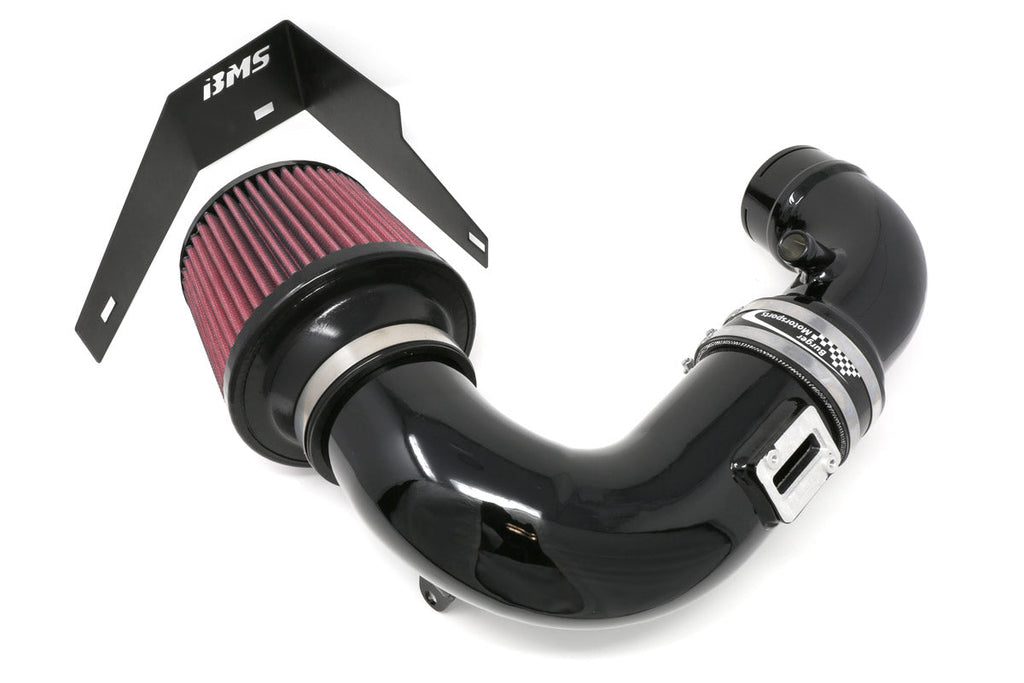

• BMS high-flow aluminum turbo inlet available as an option ("With Turbo Inlet")
• Retains OEM cold air ducting and OEM airbox base as a heat shield
• Upper heat shield included
• BMS cleanable, renewable inverted cone filter (blue or red)
• Fully reversible installation
• Made in the USA

PARTS INCLUDED

• (1) BMS Elite high-flow upper intake ducting
• (1) Upper intake heat shield

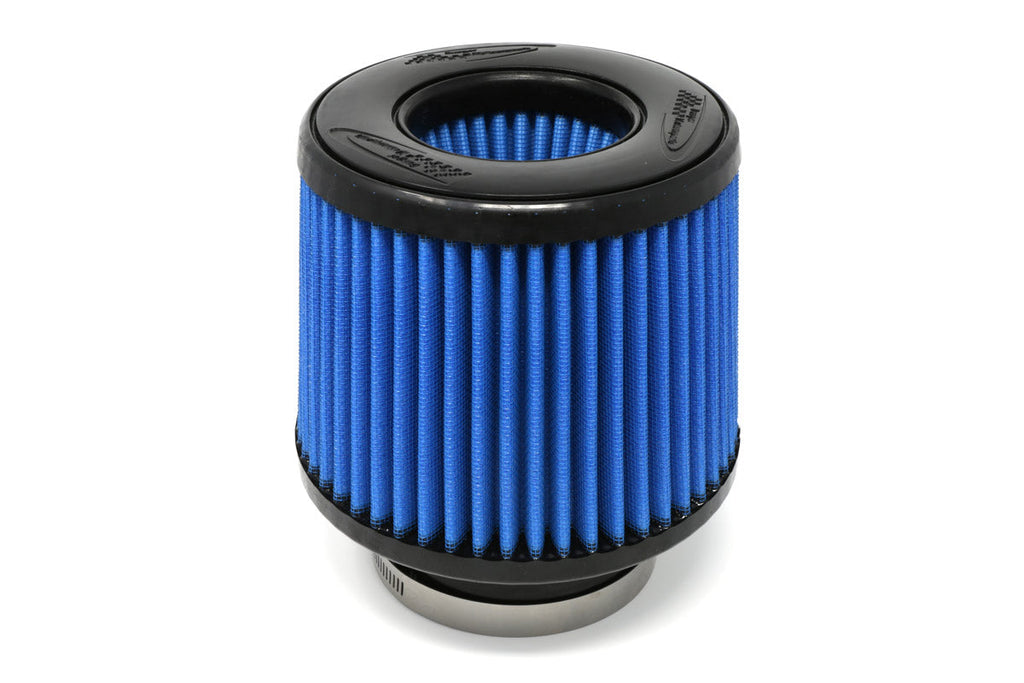

• (1) BMS inverted cone renewable performance filter (blue or red, per selection)

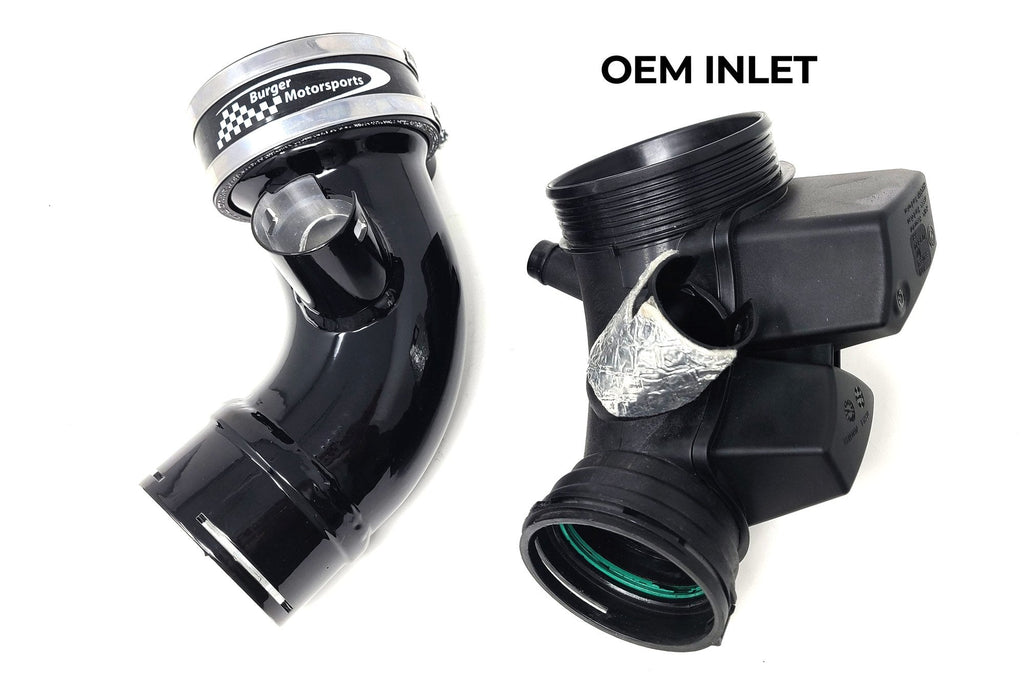

• (1) BMS F-chassis B58 aluminum turbo inlet pipe ("With Turbo Inlet" option only)

TECH RESOURCES

Additional Parts Required

• None. The kit reuses the OEM cold air duct and airbox base.
• Filter cleaning and oil kit, optional. Used to service the renewable filter every 15,000–20,000 miles. Contact Speed Logic for availability.
• Tools: basic hand tools.

Installation

• BMS Elite F-Chassis B58 Intake Install Guide (PDF)
• Burger Motorsports F-Chassis B58 Turbo Inlet Install Video (YouTube)

Notes

• Burger Motorsports does not publish an itemized hardware list for this kit; the components above are taken from the BMS product description.
• Gen 1 B58 F-chassis only. Does not fit the 2020+ G20 M340i.
• Burger Motorsports does not publish part numbers for this product, so none is listed.
