CSF Twin Charge-Air Coolers – BMW M5 / M6 (F10 / F06 / F12 / F13, S63)

OVERVIEW

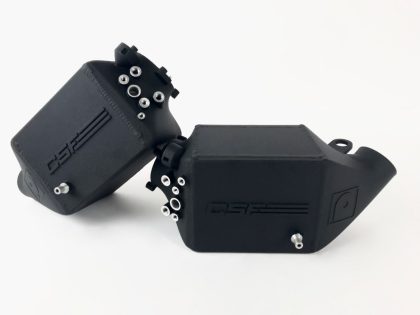

CSF’s twin charge-air-cooler set was the world’s first cast end tank high-performance charge-air-cooler set built for the BMW F1X M5 and M6. Each cooler uses a custom-designed CSF liquid-to-air intercooler core, developed with CFD analysis and testing, and is 28% larger than the OEM charge air cooler it replaces.

The cores run a top/bottom, cross-flow, dual-pass configuration with two-stage water cooling for maximum efficiency and intake temperature reduction. CSF designed the set using 3D scanning and rapid prototype technology to ensure precise fitment and maximum surface area utilization, so it drops in as an easy plug-and-play installation complete with OEM-style quick-connect water connections and sensor ports.

Additional E85 and methanol injection ports are built into the cast end tank design for cars running an auxiliary injection system. The set is offered in a professional crinkle black powder-coated finish (CSF #8109) or raw aluminum (CSF #8109R) if you plan to have it custom powder-coated.

SPECS

• World’s first cast end tank high-performance charge-air-cooler set for the BMW F1X M5/M6
• Custom-designed CSF liquid-to-air intercooler core (CFD analysis and testing completed)
• 28% increase in core size per charge cooler compared to the OEM charge air coolers
• Top/bottom, cross-flow, dual-pass core configuration with 2-stage water cooling
• Designed with 3D scanning and rapid prototype technology for precise fitment and maximum surface area utilization
• “Drop-in fit” design with OEM-style “quick connect” water connections and sensor ports
• Additional E85/methanol injection ports built into the cast end tank design
• Finish options: professional crinkle black powder coat (#8109) or raw aluminum ready for custom powder-coating (#8109R)
• Replaces BMW OEM part numbers 17517843119 (right) and 17517843123 (left)
• Warranty: 2 years to the original purchaser under normal use and service (CSF warranty term for #8109 / #8109R)

PARTS INCLUDED

• Two (2) CSF cast end tank charge-air-coolers — one left, one right
• Complete set as supplied by CSF Radiators, with OEM-style quick-connect water connections and sensor ports; see the installation instructions supplied in the box for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. CSF Radiators specifies no additional hardware for this set — both coolers are drop-in replacements that accept the OEM water connections and sensors.
• Service items you supply: fresh charge cooler coolant to refill and bleed the low-temperature circuit after installation.

Installation

• CSF does not publish a downloadable installation PDF for this set. Printed installation instructions are supplied in the box.
• Professional installation is recommended. Contact Speed Logic if you need help confirming fitment or sourcing OEM service parts before you start.

Notes

• Applications above follow CSF’s official fitment for #8109 / #8109R. Fits the F10 M5 and F06/F12/F13 M6 only — not the F90 M5 or F9x M8.

PART NUMBER

• 8109 — crinkle black powder-coated finish
• 8109R — raw aluminum finish

VEHICLE APPLICATIONS
