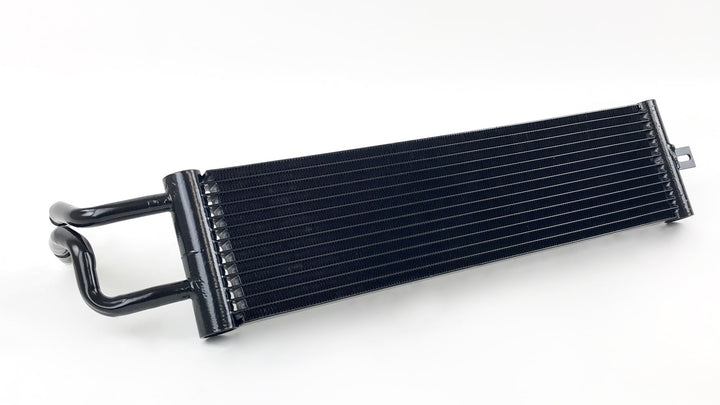

CSF Race-Spec Dual-Pass DCT Cooler – BMW M2 (F87)

OVERVIEW

CSF’s Race-Spec Dual-Pass DCT Cooler is the first true plug-and-play upgraded DCT oil cooler built for the BMW N55 engine in the F87 M2. It borrows CSF’s AC condenser technology, using a 1-row super-high-pressure 26mm multi-channel microtube in place of the OEM tube-and-fin design, so oil sees far more surface area on its way through the core.

Where the factory cooler runs a single pass with a return pipe over six cooling tubes, the CSF unit is a dual-pass core with ten cooling tubes and a high-density multi-louvered fin. CSF’s lab testing puts it at roughly 30% more efficient than the OEM cooler. It is a drop-in fit that accepts every attaching OEM component — oil-line connections, mounting brackets and the shroud/ducting all carry over.

SPECS

• Dual-pass high-performance core with 10 cooling tubes, versus the OEM single-pass, return-pipe 6-tube design
• Built with CSF’s AC condenser technology using a 1-row super-high-pressure 26mm multi-channel microtube
• High-density multi-louvered fin design
• Lab tested at approximately 30% more efficient than the OEM cooler
• “Drop-in fit” requiring no modifications — accepts all attaching OEM components including oil-line connections, mounting brackets and shroud/ducting
• Replaces BMW OEM part number 17212409076
• 2-year limited warranty to the original purchaser under normal use and service

PARTS INCLUDED

• Complete kit as supplied by CSF Radiators; see the installation instructions supplied in the box for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. CSF Radiators specifies no additional hardware for this part — it is a direct-fit replacement that reuses the OEM oil-line connections, brackets and ducting.
• Installer-supplied: standard hand tools and a drain pan for the transmission fluid displaced during the swap.

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions are supplied in the box with the cooler.
• Professional installation is recommended. Contact Speed Logic if you need help confirming fitment or sourcing OEM service parts before you start.

Notes

• Fitment and specifications above follow CSF’s current catalog entry for #8103. CSF now states a 10-tube dual-pass core and an approximately 30% efficiency gain, lists BMW 17212409076 as the number it replaces, and limits the application to the 2016–2018 F87 M2 with the DCT transmission. Earlier store copy quoted 12 cooling tubes, a 40%+ gain and OEM 17212409079; CSF’s figures are used here.

PART NUMBER

• 8103
