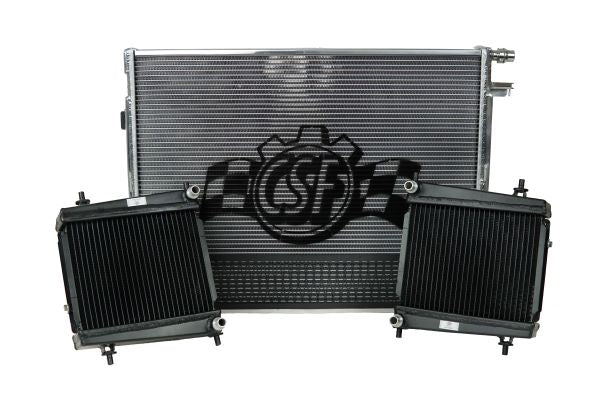

CSF Three-Piece Race-Spec Cooling Package – Toyota GR Supra (A90/A91)

OVERVIEW

CSF’s Three Piece Race-Spec Cooling Package bundles the three cooling upgrades that make the biggest difference on a hard-driven A90/A91 GR Supra: one high-performance front mount heat exchanger and two high-performance auxiliary radiators. Together they attack intake air temperature, coolant temperature and engine oil temperature at the same time.

The package is priced at $1,249, against an original MSRP of $1,357 USD for the three components purchased separately. Every piece is a drop-in fit that requires no modification to install.

The heat exchanger significantly reduces intake air temperature for maximum performance with faster heat soak recovery, and improves air flow to the rest of the cooling system for lower engine water and engine oil temperatures. The two auxiliary radiators replace the undersized OEM side coolers with 2-row, 42mm cores.

SPECS

• Heat exchanger: 2-row, 42mm ultra high-performance core with CSF’s exclusive B-Tube technology and 5mm tall multi-louvered fin
• Heat exchanger: significantly reduces intake air temperature (IAT) with faster heat soak recovery
• Heat exchanger: improves air flow to the rest of the cooling system for lower engine water and engine oil temperatures
• Heat exchanger: includes rock guard and transmission oil cooler mounting kit (industry exclusive)
• Heat exchanger: replaces Toyota OEM 16400-WAA03 and BMW OEM 17118666811
• Auxiliary radiators (qty 2): 2-row, 42mm ultra high-performance core with B-Tube technology and 5mm tall “Track-Spec” multi-louvered fin
• Auxiliary radiators: include detachable aluminum rock guards; fit both left and right side
• Auxiliary radiators: replace Toyota OEM 16400-WAA04 and BMW OEM 17118672237
• All three pieces: 100% all-aluminum TIG-welded construction with CNC-machined mounting brackets and OEM-style “quick connect” inlet/outlet
• All three pieces: drop-in fit requiring no modifications to install
• 2-year limited warranty on each component

PARTS INCLUDED

• One (1) CSF High-Performance Front Mount Heat Exchanger (CSF #8154), including rock guard and transmission oil cooler mounting kit
• Two (2) CSF High-Performance Auxiliary Radiators (CSF #8179), each with a detachable aluminum rock guard
• CNC-machined mounting brackets and OEM-style quick-connect fittings for each piece
• Complete kit as supplied by CSF Radiators; see the installation instructions supplied in the box for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. CSF Radiators specifies no additional hardware for this package — all three pieces are drop-in replacements for the OEM parts.
• Service items you supply: fresh coolant to refill and bleed the system after installation.
• Optional next step: add the transmission cooler for the four-piece Competition-Spec setup — see the CSF A90/A91 GR Supra Transmission Oil Cooler (CSF #8183).

Installation

• CSF does not publish a downloadable installation PDF for these parts. Printed installation instructions are supplied in the box with each component.
• Professional installation is recommended. Contact Speed Logic if you need help confirming fitment or sourcing OEM service parts before you start.

Notes

• This package is configured for the 3.0L GR Supra. The individual components are also sold separately for BMW G-Series cars — see each component listing for its own fitment, or contact Speed Logic.
