Dinan Carbon Fiber Cold Air Intake – BMW M2 / M3 / M4 (G8x, S58)

OVERVIEW

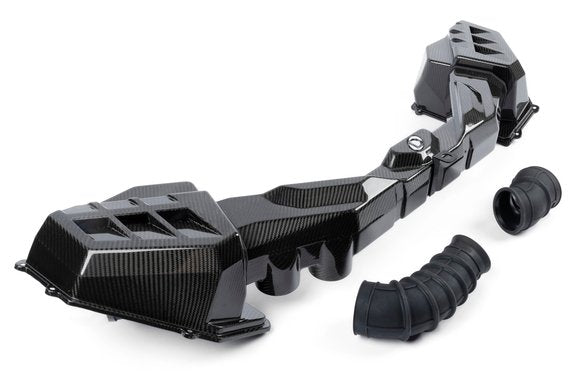

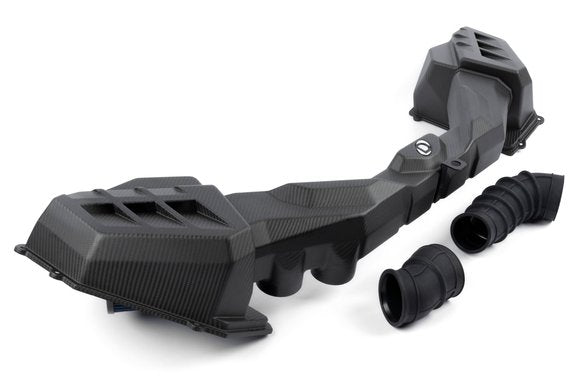

Dinan's carbon fiber cold air intake for the G8x M2, M3 and M4 replaces the restrictive factory airbox with a 2x2 twill carbon fiber housing and a larger, higher-flow filter, available in gloss or matte finish.

Dinan measures a 12% increase in airflow over stock (916 CFM vs. 815 CFM at 28" H2O) alongside an 11% increase in filter area, improving turbo efficiency and headroom for further modification.

SPECS

• 2x2 twill carbon fiber airbox, gloss or matte finish
• Flow: 916 CFM vs. 815 CFM stock (12% increase) at 28" H2O
• 11% increase in filter area over stock
• Not yet CARB-compliant — Dinan states 50-state testing is pending
• Estimated install time: about 1.5 hours

PARTS INCLUDED

• Dinan carbon fiber intake airbox assembly (gloss or matte per variant selected)
• High-flow filter
• Required clamps, couplers and mounting hardware

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part. Note: the OEM M4 CSL and M3 CS strut braces are not compatible with this intake — confirm your strut brace before ordering if you run either.

Installation

• Dinan installation instructions – D760-0063 (G8x S58 intake, gloss and matte)

PART NUMBER

• D760-0063 — Gloss Carbon Fiber Cold Air Intake, BMW G8x S58
• D760-0063-B — Matte Carbon Fiber Cold Air Intake, BMW G8x S58

VEHICLE APPLICATIONS
