Dinan Cold Air Intake – BMW M2 / M3 / M4 (F8x)

OVERVIEW

Dinan's carbon fiber cold air intake for the F8x M2 Competition, M3 and M4 replaces the factory intake with a sealed, free-flowing system designed to deliver as much cold outside air to the S55 as possible. An optimized carbon fiber tube gives the charge a straighter, less restrictive path into the engine, while dual airboxes roughly 20% larger than stock house cylindrical filters 30% larger than stock and feed through a larger MAF housing — insulating the intake charge from underhood heat while increasing flow.

The result is a slightly more audible, sportier induction tone and, according to Dinan, increased horsepower and torque throughout the power band. Installation is bolt-on using the factory mounting locations, and the exposed carbon tube makes the intake as much of a visual upgrade under the hood as a performance one.

SPECS

• Power gain: +14 HP @ 6000 RPM and +21 lb-ft @ 3000 RPM (coupled with engine tuning)
• Airbox volume approximately 20% larger than stock, fully sealed against underhood heat
• Cylindrical air filters 30% larger than stock for optimum flow
• Optimized carbon fiber intake tube
• Larger MAF housing
• Improved throttle response and a sportier induction sound
• Bolt-on installation
• Emissions status per Dinan: legal under the provisions of the EPA Tampering Policy dated November 23, 2020; NOT legal for sale or use in the State of California
• Dinan limited warranty: if the vehicle is still covered by the BMW new-car warranty, the part carries the remainder of that warranty up to 4 years / 50,000 miles; otherwise 2 years, unlimited mileage. Wear items are excluded.

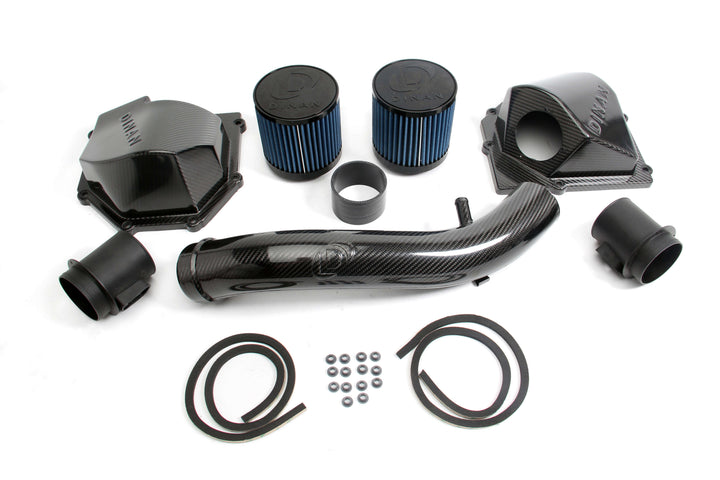

PARTS INCLUDED

• (1) MAF housing — D762-0204
• (1) Airbox lid, left — D762-0205
• (1) Airbox lid, right — D762-0206
• (1) Carbon fiber tube — D762-0207
• (1) Air filter — D401-0022
• (1) Silicone hose — D762-0208
• (1) Hardware kit — D763-0156 (9mm clamps, M4 button head screws, 7/8" loop clamp, vinyl cap, lid spacers, gaskets)

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part.
• Optional: Dinan states this intake shows consistent gains over Stage 1 when combined with a Stage 2 DINANTRONICS Performance Tuner (sold separately, where applicable).

Installation

• Dinan D760-0045 Cold Air Intake — Installation Instructions (INS760-0045, Rev. 01/08/19) (PDF)

Notes

• This part is legal for sale or use on Racing Use Only Vehicles. Racing Use Only Vehicles are vehicles that are used exclusively for competition, that are not registered, and that may never be used on the street.
• Years shown are taken from Dinan's official application list in the installation instructions for this part number. Dinan's current catalog page lists the same intake for 2015–2021 M2 Competition / M3 / M4 — please confirm fitment with Speed Logic before ordering.

PART NUMBER

• D760-0045

VEHICLE APPLICATIONS
