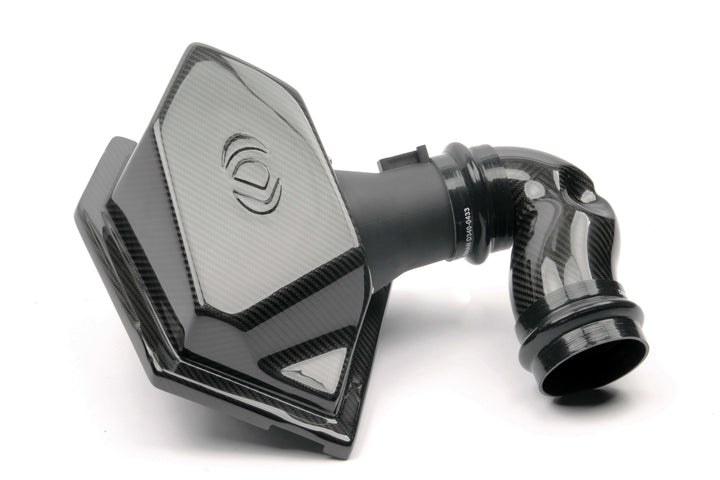

Dinan Cold Air Intake – BMW M240i / 340i / 440i (2015-2020)

OVERVIEW

Following the N55 intake that made Dinan’s reputation on the six-cylinder platform, the B58 carbon fiber cold air intake takes the same route to more power: a larger airbox and filter element that improve throttle response and reduce the strain on the turbocharger. As with every Dinan intake, the box is fully sealed so the engine draws as much cold outside air as possible rather than heat off the engine bay.

The intake tube received the bulk of the engineering attention. The factory tube carries internal baffling and a small Helmholtz chamber to suppress intake noise, and both create turbulence that costs power. Dinan developed a carbon fiber tube through several iterations that removes those restrictions and lets the intake tract breathe — and sound — freely. On an otherwise stock car the finished system is worth 15 HP and 13 lb-ft at 6000 RPM.

Unlike earlier six-cylinder Dinan intakes that mixed materials, the B58 system is carbon fiber throughout, and the grade of material and its coating were improved over previous generations so the engine bay still looks right years later.

SPECS

• More power: +15 HP @ 6000 RPM and +13 lb-ft @ 6000 RPM (+13 WHP and +11 WTQ) with no other modifications
• Airbox volume 30% larger than stock and fully sealed against underhood heat
• Filter area increased 34% — 102.1 in² versus 76.3 in² stock
• Carbon fiber airbox lid and optimized carbon fiber intake tube with the factory baffling and Helmholtz chamber removed
• Free-flowing injection-molded air mass meter housing, 8% larger than stock
• Improved throttle response and a sportier intake note
• Dinan published installation labor: 1.0 hour
• Shipping dimensions 24 in L × 18 in W × 10 in H; weight 8 lb
• Emissions: Dinan states “This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB.”
• Dinan also lists CARB EO D-176-56 as covering the 2019–21 F2x/F3x M240i/340i/440i application only
• Dinan warranty: on a vehicle still covered by the BMW new-car limited warranty (4 years/50,000 miles), Dinan products are warranted for the remaining term of that warranty; otherwise Dinan Performance Products carry a 2-year, unlimited-mileage warranty from the date of original purchase. Wear and maintenance items — friction materials, filters, fluids, spark plugs, drive belts and bulbs — are excluded.

PARTS INCLUDED

• 1 × D762-0213-G airbox lid
• 1 × D762-0214 air flow meter
• 1 × D762-0215-G intake tube
• 1 × D340-0433 silicone hose, AFM
• 1 × D340-0434 silicone hose, turbo inlet
• 1 × D401-0025 air filter
• 1 × D763-0091 hardware kit

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part — the air filter, silicone hoses and hardware kit are all supplied and no tune is required for the advertised gains.
• Installer-supplied tools: basic hand tools; no cutting or drilling of factory parts is required.

Installation

• Dinan installation instructions INS760-0046 (Rev 10/03/23): Download PDF

Notes

• Vehicle applications are taken from Dinan installation document INS760-0046 (Rev 10/03/23).

PART NUMBER

• D760-0046
