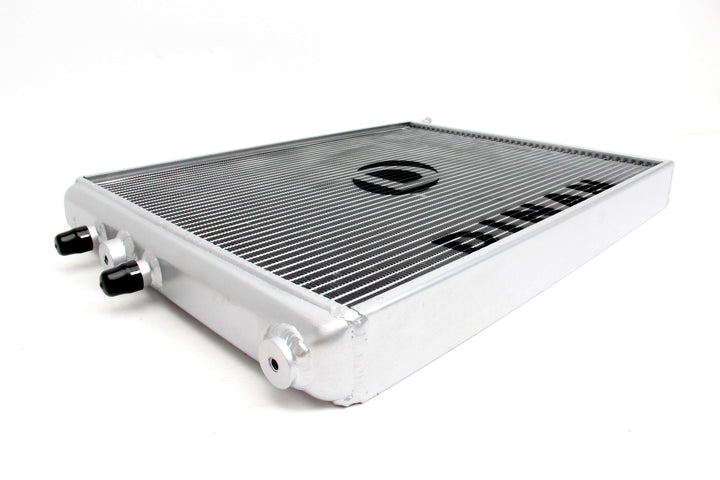

Dinan High-Performance Heat Exchanger – BMW M2 / M3 / M4 (F8x)

OVERVIEW

Heat is the enemy of performance on the S55. In stock trim the cooling system heat soaks after only three pulls, intake air temperatures climb, and the ECU pulls power to prevent detonation. Dinan's high performance heat exchanger carries 60% more core volume and 19% more face area than stock at 40mm thick (vs. 24mm stock) — sized deliberately so it doesn't restrict airflow to the main radiator behind it — and in Dinan's testing the car resisted heat soak through seven pulls, more than twice the effectiveness of stock.

The larger exchanger drops water temperature to the intercooler by an average of 9 degrees across the RPM range, which in turn allows the intercooler to cool intake air by an additional 6 degrees on average. That reduction is worth 10 HP and 20 lb-ft with no change to the engine tune, and unlocks further power when paired with the Stage 3 DINANTRONICS Performance Tuner where applicable.

SPECS

• Power gain: consistent +10 HP / +20 lb-ft on the stock engine tune
• 60% more core volume and 19% more face area than the stock heat exchanger
• 40mm core thickness vs. 24mm stock
• 9° average reduction in water temperature to the intercooler across the RPM range
• Allows intake air to be cooled an additional 6° on average across the RPM range compared to stock
• Significant reduction in the tendency to heat soak — no heat soak through 7 pulls in Dinan testing vs. 3 pulls stock
• Rubber mounted for vibration isolation
• Track tested for consistent performance under extreme conditions
• Emissions: legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
• Dinan limited warranty: if the vehicle is still covered by the BMW new-car warranty, the part carries the remainder of that warranty up to 4 years / 50,000 miles; otherwise 2 years, unlimited mileage. Wear items are excluded.

PARTS INCLUDED

• (1) Dinan heat exchanger assembly — D783-0021A
• (1) Hardware kit — D783-0020A, containing left upper, right upper, right lower and left lower brackets, (4) bushings (BMW 17 21 7 567 089), (4) oil cooler bushings (D572-0060), (2) O-rings (D781-0006), (2) spacer blocks (D782-0107) and the M8 bolts, nuts and washers

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part.
• Coolant top-up may be needed after the system is refilled and bled — supplied by the installer.

Installation

• Dinan D780-0001A High Performance Heat Exchanger — Installation Instructions (INS780-0001A, Rev. 07/22/20) (PDF)

Notes

• Years shown follow Dinan's official application list in the installation instructions for this part number. Please confirm fitment with Speed Logic before ordering.

PART NUMBER

• D780-0001A
