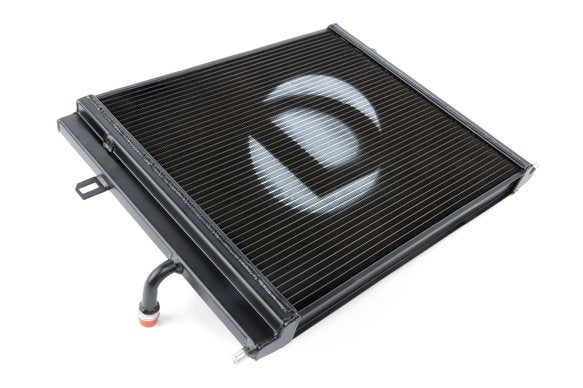

Dinan High-Performance Heat Exchanger – BMW 230i/M240i/330i/340i/430i/440i (F22/F23/F30/F32, B48/B58) #D780-0002

OVERVIEW

Dinan's high-performance heat exchanger is a direct-fit replacement for the factory charge-air heat exchanger on F-chassis B48/B58 cars, built with a thicker bar-and-plate core and more surface area to pull more heat out of the charge air under sustained load.

This F-chassis unit (D780-0002) uses a 48mm core versus the OEM 27mm core, 78% more heat transfer surface area, and has recorded up to 15°F lower intake air temperatures than stock, with unique L-shaped end tanks added for extra thermal mass.

SPECS

• 48mm core vs. 27mm OEM core
• 78% more heat transfer surface area than stock
• Up to 15°F IAT reduction recorded vs. stock
• Unique L-shaped end tanks for added thermal mass
• 100% TIG-welded aluminum, bar-and-plate construction, pressure tested
• Direct-fit replacement using factory mounting points
• Fits both RWD and xDrive drivetrains
• 49-state legal; California certification pending

PARTS INCLUDED

• One (1) Dinan D780-0002 high-performance heat exchanger
• xDrive-specific transmission oil cooler brackets (fits both RWD and xDrive applications)

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part. Minor plastic shroud trimming may be needed on some configurations — see the installation guide.

Installation

• Dinan installation instructions – D780-0002 (F-chassis heat exchanger)

Notes

• Estimated install time is approximately 4 hours.
• 49-state legal; California emissions certification pending at time of listing.
• This listing was split out from a previously bundled Dinan Engine Hardware listing that combined multiple unrelated part numbers as variants of one product; this SKU (D780-0002) now has its own standalone listing.

PART NUMBER

• D780-0002 — High-Performance Heat Exchanger, F-Chassis B48/B58
