OVERVIEW

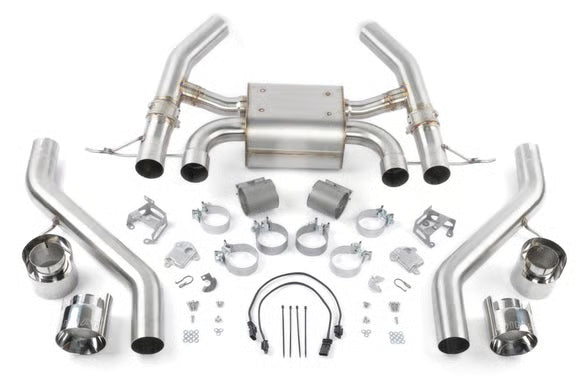

The Dinan Valved Axle-Back Exhaust for the G87 M2 opens up flow and deepens the exhaust note while retaining full control over volume through the factory-style electronic valve. Built to replace the factory axle-back section, it keeps OEM-quality fit and finish and drops noticeable weight over the stock system.
SPECS
- T304 stainless steel construction, TIG welded with a brush finish
- 76mm piping (up from 70mm stock)

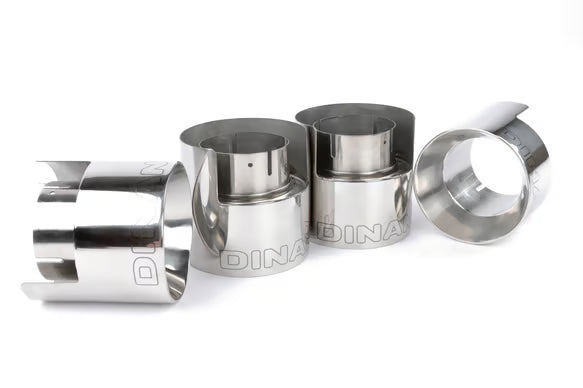

- Quad 4.5" (114mm) double-walled clamp-on tips, available in polished or black ceramic finish
- Approximately 6 lb lighter than the factory exhaust
- +6 hp / +5 lb-ft at 6,600 rpm over stock
- Computer-controlled electronic exhaust valve retained for on-demand volume control
- Direct bolt-on using factory hangers and connection points
- Approx. 2.7 hours of installation labor
PARTS INCLUDED
- Dinan valved axle-back exhaust section, tips in the selected finish
- Required clamps, gaskets, and mounting hardware
TECH RESOURCES
Additional Parts Required
- The Dinan Dual Exhaust Valve Remote (R660-0002) is sold separately and is required to manually override the electronic valve independent of drive mode.
Installation
- Installation instructions: PDF.
Notes
- Confirm tip finish before ordering — polished (D660-0100) and black ceramic (D660-0100-BLK) are separate part numbers.
PART NUMBER
- D660-0100 — Polished tips
- D660-0100-BLK — Black ceramic tips
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | M2 | G87 | S58 | 2023–2026 |
