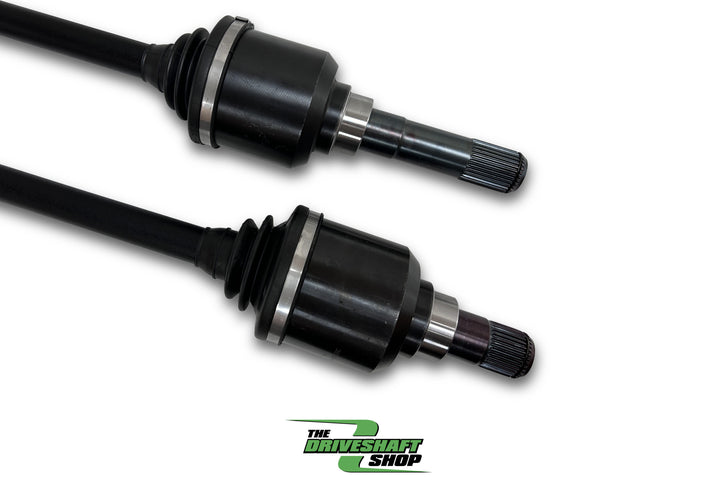

Driveshaft Shop Rear Axles – Toyota GR Supra (A90/A91) #510463

OVERVIEW

After three years of development and testing across numerous configurations, The Driveshaft Shop released what it calls the only proven MK5 Supra A90 axle set on the market. Since the 2019 launch of the platform DSS has been the leader in record-breaking axle options for these cars, and that data went into an economical solution that no longer requires OEM cores, additional aftermarket suspension components or vehicle modifications — a true plug-and-play set.

The set carries over the technology used on the proven 1-3/8″ 300M axle bars, combining a full chromoly inner housing with billet internals, 300M axle bars, 300M differential splined plugs and a proprietary 8-ball design forged outer CV housing with heat-treated hub splines. That combination is built to handle everything from an average daily driver and weekend track car up to a 1200 HP+ hardcore drag racer. No cores, no wait — in stock and ready to ship.

SPECS

• Full chromoly inner CV housings with billet internals
• 300M axle bars, built on the proven DSS 1-3/8″ 300M axle bar technology
• 300M differential splined plugs
• Proprietary 8-ball design forged outer CV housings
• Heat-treated hub splines on the outer CV housings
• Rated for use from daily driver and track duty through 1200 HP+ drag racing
• True plug-and-play fitment — no OEM cores required
• No additional aftermarket suspension components or vehicle modification required
• In stock and ready to ship — no build lead time
• Warranty: 1 year (The Driveshaft Shop)

PARTS INCLUDED

• Complete rear axle set as supplied by The Driveshaft Shop; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. The Driveshaft Shop specifies no additional hardware, OEM cores, aftermarket suspension components or vehicle modifications for this axle set.
• Professional installation is recommended. Axle, hub and differential fasteners are torque-critical and several BMW/Toyota axle nuts are single-use.

Installation

• The Driveshaft Shop does not publish a downloadable installation guide for this axle set. Contact Speed Logic or The Driveshaft Shop directly for fitment and torque guidance.

Notes

• Sold as a complete axle set. Confirm fitment for your exact model year and drivetrain with Speed Logic before ordering.

PART NUMBER

• 510463
