Driveshaft Shop 2.75″ 1-Pc Carbon Fiber Driveshaft – BMW 135i 6-Speed (E82/E88)

OVERVIEW

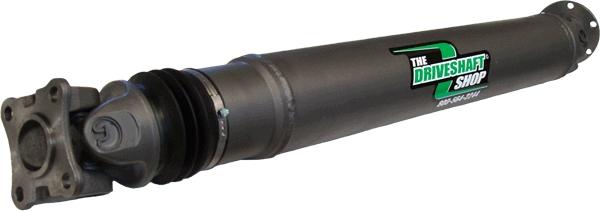

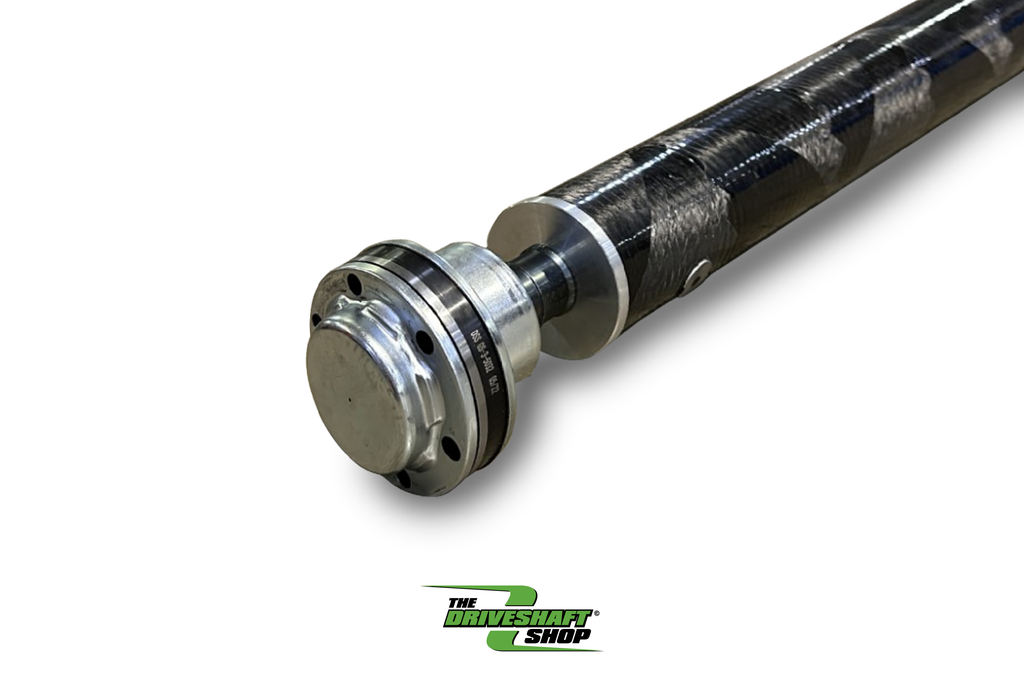

The Driveshaft Shop one-piece 2.75″ carbon fiber driveshaft for the BMW 135i with the 6-speed manual transmission. It replaces the factory two-piece driveshaft and eliminates the center support (hanger) bearing entirely, cutting rotating mass while adding strength.

The shaft uses a 108mm CV joint with an adapter plate and flange, and every unit is balanced on the DSS 9,500 RPM balancer before it ships.

SPECS

• 2.75″ one-piece carbon fiber tube
• 108mm CV joint with adapter plate and flange
• Deletes the factory center support (hanger) bearing
• Balanced on a 9,500 RPM balancer
• Built for the 6-speed manual transmission only
• Warranty: 1 year (The Driveshaft Shop)

PARTS INCLUDED

• One-piece carbon fiber driveshaft with 108mm CV
• Transmission adapter plate and flange
• Mounting hardware

TECH RESOURCES

Additional Parts Required

• None. The Driveshaft Shop ships this shaft complete with hardware and adapter plate for a direct bolt-in.
• Factory driveshaft and flange bolts are torque-to-yield and should be replaced rather than reused.
• Professional installation is recommended.

Installation

• The Driveshaft Shop does not publish a downloadable installation guide for this part number. Contact Speed Logic or The Driveshaft Shop directly for fitment and torque guidance.

Notes

• 6-speed manual only — not for automatic or DCT 135i models.
• Confirm transmission type and fitment with Speed Logic before ordering.

PART NUMBER

• 610164
• DSS Part #: BMWSH10-C
