Eventuri Black Carbon Intake System V2 – BMW M340i (G20, B58)

OVERVIEW

The BMW G20 B58 Eventuri intake was developed to give the turbo a less restrictive flow path while keeping inlet temperatures low. In the G20 the intake sits next to the exhaust manifold, which rapidly heat soaks the engine bay, and a turbo forced to build boost with heated, less dense air gives up performance. The only way to keep IATs to a minimum is a fully sealed intake, which normally creates a restriction because there is just one factory air feed to draw from. During development Eventuri found an additional opening into the wheel well area and added a secondary feed to the airbox, and maximized airbox volume with a recess left for potential strut braces. The convoluted stock intake tube is replaced by a smooth carbon tube of larger internal volume that tapers down to match the turbo inlet, finished with a custom high-flow dry filter that is ISO tested for filtration performance and has a larger filtration area than stock.

Crafted from prepreg carbon fiber, the airbox serves two objectives — to seal the filter against engine bay heat and to provide a dual cold air feed. Because the airbox sits next to the exhaust manifold it is critical that the filter be fully sealed, so Eventuri designed the box to encapsulate the filter while still providing a large internal volume. A laser cut plate with a rubber sealing strip secures to the airbox and seals around the intake tube where it passes through, preventing heated air from entering. An additional heat shield with a gold reflective layer on the exhaust manifold side combats radiant heat transfer.

SPECS

• Intake tube internal diameter increased from 80.8 mm (3.2 in) stock to 109 mm (4.3 in) — an 82% increase in cross-sectional area over stock, per Eventuri
• 100% pre-preg carbon fiber with no fiberglass, for a smooth internal surface that maintains laminar airflow
• Gloss black carbon finish
• Fully sealed prepreg carbon fiber airbox with dual cold air feeds
• Laser cut sealing plate with rubber sealing strip where the intake tube passes through the airbox
• Bespoke high flow dry cone filter — ISO tested, cleanable and reusable, larger filtration area than stock
• Heat shield with gold reflective backing on the exhaust manifold side
• CNC machined temperature sensor mount

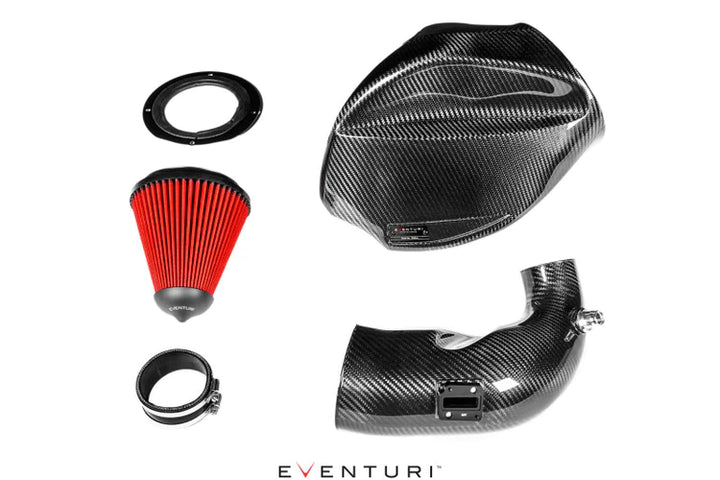

PARTS INCLUDED

• Carbon fiber airbox with dual feeds
• Carbon fiber inlet tube
• Bespoke high flow dry cone filter
• Heat shield with gold reflective backing
• CNC machined temperature sensor mount
• CNC machined breather adapters
• Silicone reducer with OEM specification clamps
• Laser cut stainless steel brackets

TECH RESOURCES

Additional Parts Required

• None. Eventuri specifies no additional hardware for this part — it is a complete bolt-on kit and no tune is required.
• Installer supplies basic hand tools.

Installation

• Eventuri BMW G20 B58 Intake — Installation Instructions (PDF)
• For a G20 M340i built before November 2018, order the V1 system instead: Eventuri BMW G20 M340i B58 Black Carbon Intake System – PRE November 2018

Notes

• DISCLAIMER: ** This item is not eligible for return ** This is the V2 system and fits G20 M340i built after November 2018.
• Eventuri states this system is not suitable for the 2025+ B58N engine. Check your vehicle's production date before ordering, and contact Speed Logic if you are unsure which version you need.

PART NUMBER

• EVE-G20B58-V2-INT — V2, built after November 2018
