Eventuri V2 Black Carbon Intake – BMW M5 (F90) / M8 (F92)

OVERVIEW

The Eventuri F9X M5 / M8 V2 intake system was developed through extensive real world testing and airflow simulation analysis. It features sealed filter housings that maintain a steady IAT even while the car is stationary. The carbon shrouds that seal the housings, combined with Eventuri's scoop and heat shield arrangement, ensure unrestricted airflow while keeping inlet temperatures low through cold air saturation.

Large carbon front air scoops transfer ambient air directly into the intake area so the engine does not suffer from heat soak, and the gold heat-reflective lined shields carry integrated flow guides that direct that ambient air into the filters. Eventuri also increased the inlet tube cross sectional area by over 30% compared to the stock intake, feeding through the openings in the factory strut braces. This lets the turbos work with less restriction and reduces wastegate duty cycles.

SPECS

• Airflow: 736 CFM at 28" H2O versus 620 CFM stock (Eventuri)
• Eventuri testing: 60–130 mph reduced by 0.22 seconds — 8.48 s stock versus 8.26 s with the Eventuri system
• Inlet tube cross sectional area increased by over 30% compared to stock
• Patented Eventuri carbon fiber Venturi housings with integrated tubes, sealed for steady IATs
• Two bespoke high flow Generation 2 filters
• Two carbon fiber filter shrouds sealing the housings
• Two carbon fiber air scoops feeding ambient air directly to the intake area
• Two laser cut heat shields lined with gold heat reflective material
• Laser cut air ramps integrated into the heat shields to guide air into the filters
• Two aluminum inlet cowls
• Silicone couplers with OEM specification hose clamps
• Sized to feed through the openings in the factory strut braces

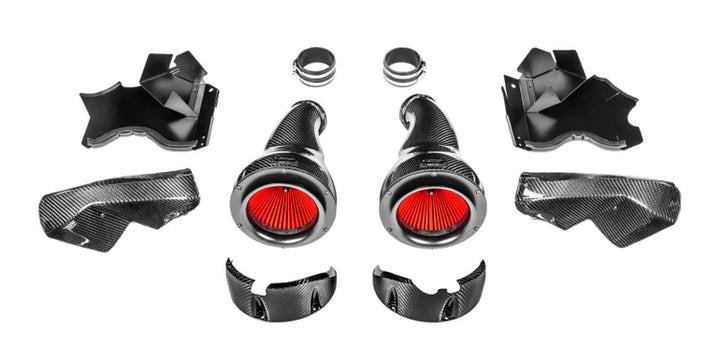

PARTS INCLUDED

• 2 x Carbon fiber Venturi housings with integrated tubes
• 2 x Bespoke high flow Generation 2 filters
• 2 x Carbon fiber filter shrouds
• 2 x Carbon fiber air scoops
• 2 x Laser cut heat shields lined with gold heat reflective material
• 2 x Laser cut air ramps integrated into the heat shields
• 2 x Aluminum inlet cowls
• High quality silicone couplers and OEM specification hose clamps

TECH RESOURCES

Additional Parts Required

• None. Eventuri specifies no additional hardware for this part.

Installation

• Eventuri BMW F90 M5 V2 Intake System – Installation Instructions (PDF) — the guide Eventuri supplies for both the F90 M5 and F9X M8

Notes

• ** This item is not eligible for return **

PART NUMBER

• EVE-F9XM5M8-CF-INT
