Eventuri Carbon Air Box Lid w/ Filters – BMW X3M / X4M (F97/F98)

OVERVIEW

The X3M / X4M intake setup fitted by BMW looks awkward at first sight, but it is a well designed system for the space available. The flow path from the filters to the turbo inlets is very direct and does not change direction as abruptly as most OEM airbox designs. Rather than a complete redesign, Eventuri focused on improving the factory airbox with less restrictive flow and better temperature efficiency.

Eventuri developed drop-in replacement filters made from non-woven mesh with a much higher flow rate than the stock paper elements. To reduce inlet air temperatures and force air into the airbox, large carbon front scoops sit behind the grilles and channel air into the ducts, effectively de-restricting the inlet side of the airbox. The final piece is the carbon airbox lid; while Eventuri states the lid does not itself add performance, it allows a more audible induction sound and gives the engine bay a significant aesthetic improvement.

SPECS

• Prepreg carbon fiber airbox lid, thinner and lighter than the stock lid
• Retains and improves the OEM airbox rather than replacing it
• Four direct replacement high flow air filters — two smaller and two larger cartridges
• Filter media is non-woven mesh housed in stainless steel mesh with urethane surrounds; higher flow rate than the stock paper filters
• Filters are replacement service items, not a washable element
• Two large carbon fiber scoops mount behind the grilles to force ambient air into the airbox ducts
• Laser cut stainless steel brackets
• Eventuri testing: 60–130 mph reduced by 0.2 seconds
• Carbon lid increases induction sound; Eventuri states it does not add performance on its own

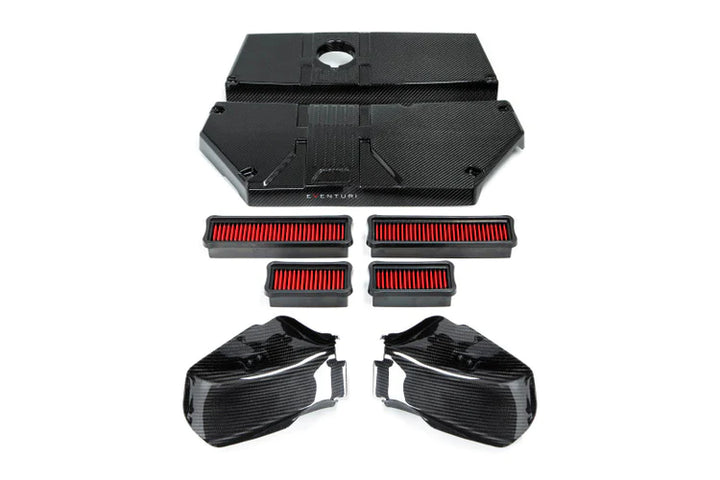

PARTS INCLUDED

• 1 x Carbon fiber airbox lid
• 2 x Carbon fiber air scoops
• 4 x Direct replacement high flow air filters
• Laser cut stainless steel brackets

TECH RESOURCES

Additional Parts Required

• None. Eventuri specifies no additional hardware for this part.
• Replacement filter elements are a service item and are ordered separately when due.

Installation

• Eventuri BMW X3M / X4M – Installation Instructions (PDF)

PART NUMBER

• EVE-FX34M-CF-INT — carbon airbox lid with replacement filters, as supplied
• Eventuri catalog references for this platform: EVE-FX34M-V2-INT (revised kit) and EVE-FX34M-PF (replacement panel filter set)
