Evolution Racewerks 4" Downpipe – BMW M135i / M235i (N55)

OVERVIEW

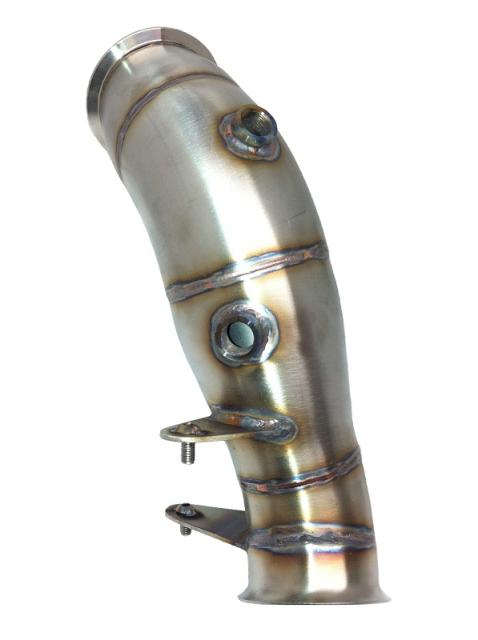

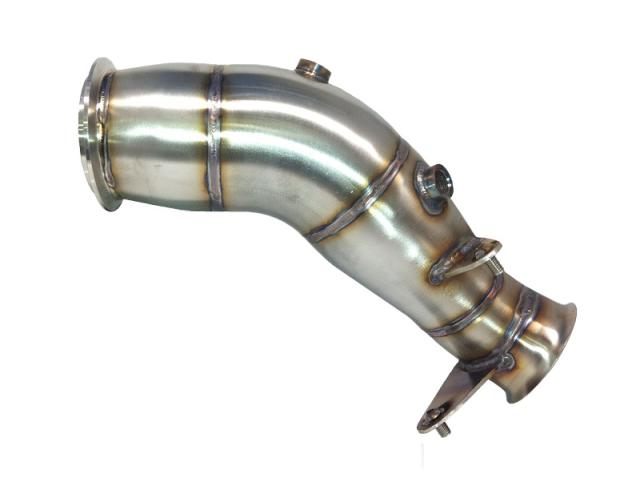

The Evolution Racewerks Competition Series 4" Catless Downpipe replaces the restrictive factory downpipe and catalytic converter on the N55 single-turbo six cylinder, covering the F30 335i, F32/F33 435i and F20/F21/F22 M135i and M235i.

The factory catalytic converter is built from catalyst material formed into a honeycomb weave. Exhaust gas has to pass through those tiny passages on its way to the exhaust system, which creates a major flow restriction and causes turbulence downstream that slows exhaust flow further. Replacing the factory downpipe with the Competition Series 4" catless unit removes that restriction, and Evolution Racewerks states the result is a higher maximum horsepower curve, a torque curve that arrives sooner and holds longer, better throttle response and faster turbo spool.

The downpipe is mandrel bent for a smooth transition into the exhaust system and is fully TIG welded in house by Evolution Racewerks for consistent weld quality and track-tested durability.

SPECS

• Competition Series 4" catless downpipe
• Mandrel bent 4" piping for a smooth transition to the exhaust system
• 100% 304 stainless steel construction
• 100% TIG welded

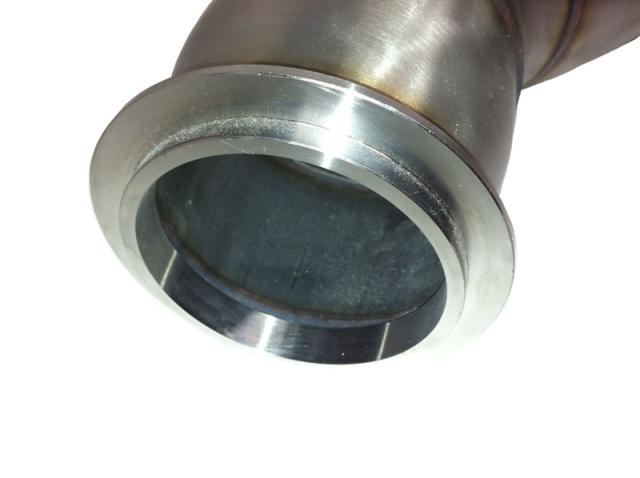

• Precision CNC machined turbocharger V-band flange
• Standard finish: brush; optional mirror polish finish
• Optional high temperature black thermal ceramic coating to reduce underhood temperatures (rated to 2000°F)
• Optional additional O2 sensor bung for wideband O2 sensors, supplied with a pre-installed plug
• Optional EGT sensor bung for EGT gauges, supplied with a pre-installed plug
• Compatible with the factory or aftermarket exhaust systems
• Two build-date versions: 2012 to 08/2013 pneumatic wastegate, and 09/2013 to 2015 electronic wastegate
• Made in the USA
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

PARTS INCLUDED

• Competition Series 4" catless downpipe
• All hardware required for complete installation
• Optional sensor bungs come with pre-installed plugs where that option is selected

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part.
• Confirm your turbocharger wastegate type (pneumatic or electronic) before ordering, as Evolution Racewerks builds a separate version for each.
• A Vehicle Compliance Waiver must be signed by California residents before this part can ship.

Installation

• Evolution Racewerks rates installation difficulty at 2 out of 5 (1 easy, 5 hard).
• Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.

Notes

• THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHICLES IN THE STATE OF CALIFORNIA. CAUTION: This product is intended for OFF ROAD COMPETITION USE ONLY. Not legal for use on pollution controlled vehicles upon public road/highways. THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA. In addition to vehicle use verification, a Vehicle Compliance Waiver needs to be signed.
• The item is for sale for international customers without restriction.
• Finish, coating and sensor-bung options change the suffix on the base part number. Confirm fitment and build date with Speed Logic before ordering.

PART NUMBER

• BM-EXH007S — Competition Series 4" Catless Downpipe, N55 (6 cylinder) engine
