Evolution Racewerks BMW 335i /435i (F30 / F32) Charge Pipe (N55)

OVERVIEW

The Evolution Racewerks Charge Pipe Kit replaces the factory plastic charge pipe on the F chassis N55 single-turbo six cylinder engine. Once boost is turned up with a tune the factory pipe is prone to splitting, and this kit replaces it with mandrel bent 6061 aluminium that Evolution Racewerks backs with a Limited Lifetime Warranty.

Charged intake airflow is often overlooked, but it has a direct effect on throttle response, turbo lag and ultimately maximum power. Smooth bends and minimal obstructions are what matter, so the pipe uses mandrel bent 6061 tubing and steps up to 3" at the throttle body where the factory pipe is only 2.5", giving full flow with no step at the throttle plate.

Evolution Racewerks was the first manufacturer to duplicate the factory throttle body flange on an N54 charge pipe and brings the same design to the N55 pipe. The factory connection uses an o-ring inside the throttle body flange locked in place by a c-clip. It seals well, makes removal and installation quick, and in Evolution Racewerks testing it was pressure tested to 25 PSI without any sign of failure — testing stopped there only because a turbo intake pipe blew off. BMW uses the same style of connection in the cooling and clutch systems.

SPECS

• Lightweight high grade 6061 aluminium, mandrel bent piping
• Throttle body matched 3" piping, where the factory charge pipe is 2.5"
• Retains the factory style o-ring throttle body lock flange
• Precision CNC machined throttle body flange for a leak free connection and quick removal and installation
• Precision CNC machined MAP sensor flange for a leak free connection
• Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost
• Two 1/8" NPT bungs for methanol or nitrous injection, or as a boost source
• Pressure tested to 25 PSI in Evolution Racewerks testing
• Compatible with the factory electronic diverter valve
• Finishes: brush (standard), mirror polish, or Type III hard black anodizing for a stealth OEM look; hard anodizing also hardens the aluminium against denting
• TIG welded construction
• Made in the USA
• Lead time: allow up to 1 week for polished and 2.5 weeks for anodized black; some in-stock configurations ship same day
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

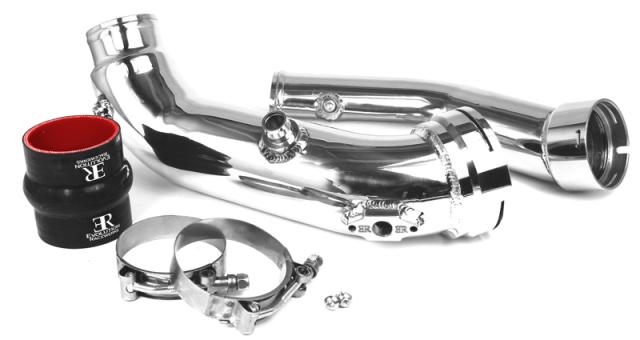

PARTS INCLUDED

• Charge pipe
• Silicone hump hose
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Required Extras

• None. Evolution Racewerks specifies no additional hardware for this part.
• Specify rear wheel drive or xDrive and automatic or manual transmission when ordering — Evolution Racewerks builds a different pipe for each.
• Evolution Racewerks products are built in many configurations, so not all configurations are held in stock. Check availability before ordering.

Installation

• Evolution Racewerks rates installation difficulty at 2 out of 5 (1 easy, 5 hard).
• Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.

PART NUMBER

• BM-ICP007SA — Charge Pipe Kit for F Chassis N55 (6 cylinder) engine

VEHICLE APPLICATIONS

Drivetrain, transmission and finish options change the suffix on the base part number. Confirm fitment with Speed Logic before ordering.
