Product details
OVERVIEW
The Evolution Racewerks Diverter Valve Charge Pipe is built for the E60 535i with the N54 twin turbo engine and works with the factory diverter valves or aftermarket factory-style diverter valves.

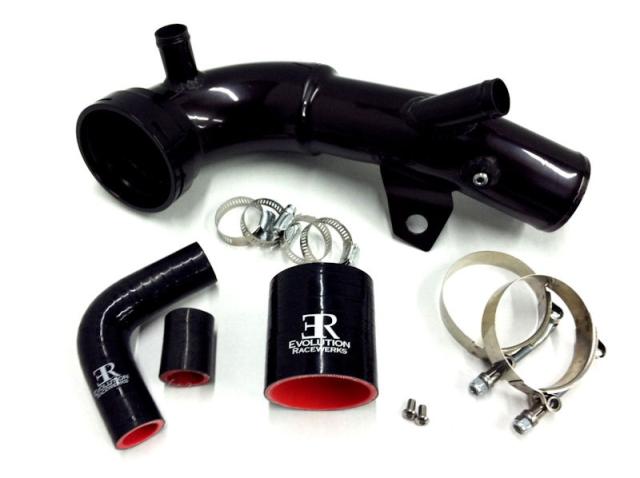

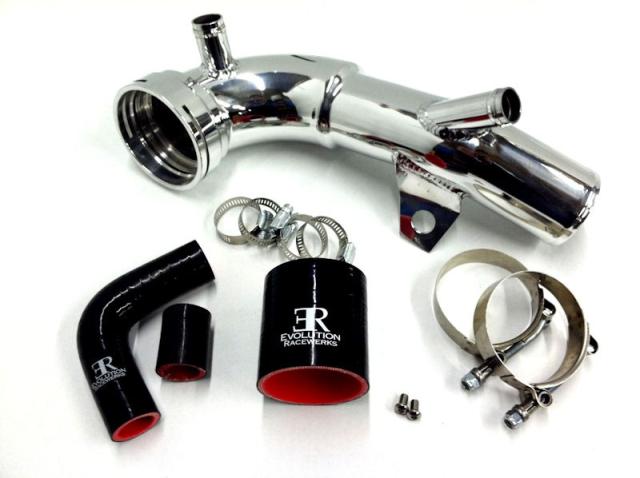

The pipe is made from lightweight high grade 6061 aluminum and steps up to 3" to match the factory throttle body. The factory diverter valve sound baffle, which creates turbulence inside the stock pipe, is deleted. Evolution Racewerks states the result is improved throttle response and reduced turbo lag.

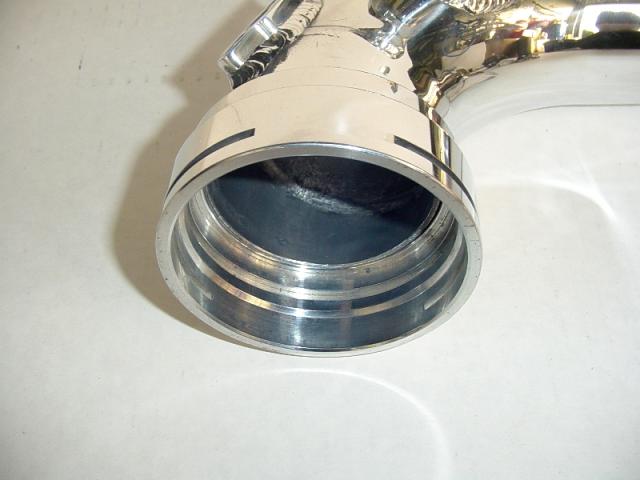

The throttle body connection reproduces the factory design: an o-ring inside a precision CNC machined flange locked by a c-clip. It seals without a silicone hose and clamp, which is what most other aftermarket diverter valve pipes rely on, and it makes removal and installation quick. A CNC machined MAP sensor flange keeps that connection leak free, and beaded pipe ends with T-bolt clamps stop the intercooler piping from blowing off under boost.
SPECS
- Lightweight high grade 6061 aluminum piping
- Throttle body matched 3" piping
- Retains the factory style o-ring throttle body lock flange
- Precision CNC machined throttle body flange for a leak free connection and quick removal and installation
- Precision CNC machined MAP sensor flange for a leak free connection
- Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost
- Factory diverter valve sound baffle, which causes turbulence in the factory pipe, is removed
- Compatible with factory diverter valves or aftermarket factory style diverter valves
- Finishes: brush (standard), mirror polish, or optional Type III hard black anodizing for a stealth OEM look; hard anodizing also hardens the aluminum against denting
- Made in the USA
- Warranty: Evolution Racewerks Limited Lifetime Warranty.
PARTS INCLUDED
- Diverter valve charge pipe
- T-bolt clamps
- All hardware required for complete installation
TECH RESOURCES
Additional Parts Required
- None. Evolution Racewerks specifies no additional hardware for this part.
- Reuses the factory diverter valves; aftermarket factory-style diverter valves also fit.
Installation
- Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.
Notes
- Finish options change the suffix on the base part number. Evolution Racewerks also catalogs TIAL and HKS blow-off valve versions of this pipe under separate part numbers.
PART NUMBER
- BM-ICP004S — Diverter valve charge pipe, brush finish
- BM-ICP004P — Diverter valve charge pipe, polish finish
- BM-ICP004B — Diverter valve charge pipe, Type III hard black anodized
- BM-ICP004P1 — Diverter valve charge pipe, polish finish, 1 Bung (1/8" NPT meth)
- BM-ICP004P2 — Diverter valve charge pipe, polish finish, 2 Bung (1/8" NPT meth)
- BM-ICP004S1 — Diverter valve charge pipe, brush finish, 1 Bung (1/8" NPT meth)
- BM-ICP004S2 — Diverter valve charge pipe, brush finish, 2 Bung (1/8" NPT meth)
- BM-ICP004B1 — Diverter valve charge pipe, Type III hard black anodized, 1 Bung (1/8" NPT meth)
- BM-ICP004B2 — Diverter valve charge pipe, Type III hard black anodized, 2 Bung (1/8" NPT meth)
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | 535i | E60 / E61 | N54 3.0L Twin-Turbo I6 | 2008–2010 |
| BMW | 535xi | E60 / E61 | N54 3.0L Twin-Turbo I6 | 2008–2010 |
