Evolution Racewerks Charge Pipes – BMW M2 Competition / M3 / M4 (S55)

OVERVIEW

Evolution Racewerks aluminum charge pipes replace the failure-prone factory plastic pipes on the S55. The OEM units are a well-documented weak point that crack under increased boost — these mandrel-bent aluminum replacements eliminate that failure mode entirely while improving flow.

SPECS

• Mandrel-bent aluminum construction
• Eliminates the common OEM plastic charge pipe failure
• Larger internal diameter than OEM for improved flow
• Three finishes: Brush (S), Mirror Polish (P), Type III Hard Anodized Black (B)
• Separate versions for factory/aftermarket intake and carbon fiber intake box setups

PARTS INCLUDED

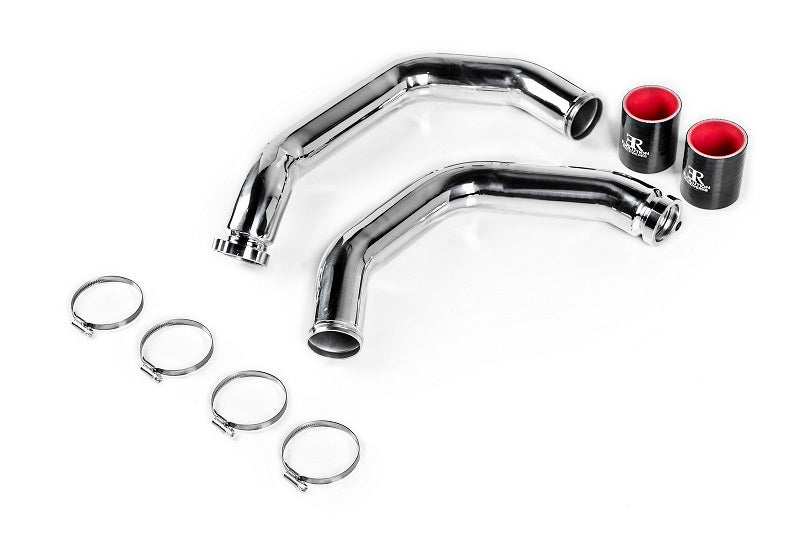

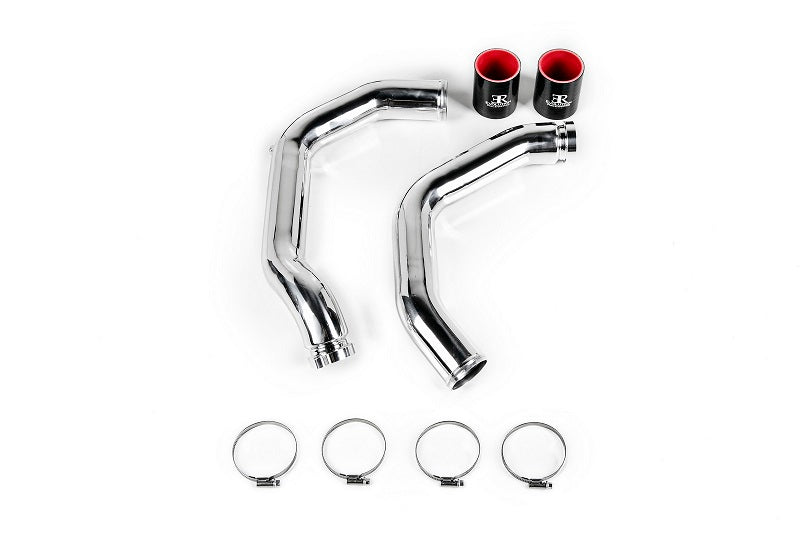

• ER charge pipe set in the selected finish and intake configuration
• Required couplers, clamps, and hardware

TECH RESOURCES

Additional Parts Required

• No additional required parts — direct bolt-on replacement.
• Genuine BMW Throttle Body O-Ring (BMW-13717568031) and Charge Pipe C-Clip (ER-BM-C-CLIP) available separately as service items.

Installation

• Installation guidance available through Evolution Racewerks technical support.

Notes

• The "-AWE" versions are for cars running a carbon fiber intake box. Standard versions fit factory or standard aftermarket intakes.

PART NUMBER

• BM-ICP015S — Charge pipe set, factory or aftermarket intake, Brush finish
• BM-ICP015P — Charge pipe set, factory or aftermarket intake, Mirror Polish finish
• BM-ICP015B — Charge pipe set, factory or aftermarket intake, Type III Hard Anodized Black
• BM-ICP015S-AWE — Charge pipe set, carbon fiber intake box, Brush finish
• BM-ICP015P-AWE — Charge pipe set, carbon fiber intake box, Mirror Polish finish
• BM-ICP015B-AWE — Charge pipe set, carbon fiber intake box, Type III Hard Anodized Black
• Cold side "J" charge pipe, Brush / Polish / Black — BM-ICP015S-J / BM-ICP015P-J / BM-ICP015B-J
