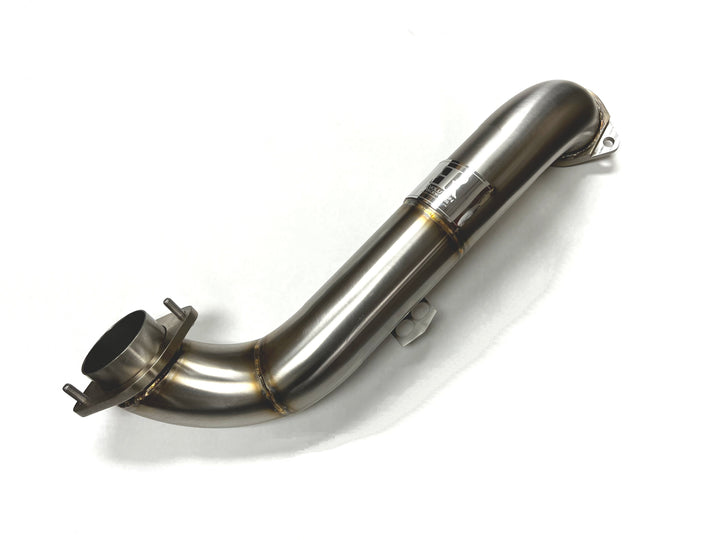

Evolution Racewerks Crossover Pipe – BMW M2 / M3 / M4 (G87 / G80 / G82, S58)

OVERVIEW

The Evolution Racewerks Crossover Exhaust Pipe replaces the factory crossover section on the twin-turbo S58 in the 2021+ BMW M3 (G80), M4 (G82) and 2023+ M2 (G87). On these cars both downpipes sit on the right side of the engine: the right downpipe feeds the mid pipe directly, while the left downpipe connects to a crossover pipe that runs under the transmission to reach the left side of the Y-style mid pipe.

To clear the transmission, BMW flattened that crossover tube into an oval, which creates turbulence and restricts flow. Evolution Racewerks found there is enough room to keep the tubing fully round, so their crossover runs mandrel-bent 3" round tube end to end. It also replaces the heavy cast factory components with fabricated 304 stainless, saving weight, and bolts up to either the factory or aftermarket mid pipes.

SPECS

• Fully round mandrel-bent 3" tubing replaces the factory ovalized section
• Lighter than the factory cast crossover pipe
• 100% 304 grade stainless steel construction
• 100% TIG welded, manufactured in-house in the USA
• CNC machined billet 304 stainless flanges
• 100% bolt-on
• Finish options: Brush (default), Mirror Polish, or high-temp Black Ceramic Thermal Coating
• Ceramic Thermal Coating rated to 2000°F; reduces radiated heat and adds corrosion resistance (black only)
• Higher peak horsepower curve and earlier, stronger torque curve
• Sharper throttle response and faster turbo spool
• Compatible with factory or aftermarket mid pipes
• Track tested durability
• Shipping weight: approx. 8 lb
• Limited Lifetime Warranty

PARTS INCLUDED

• Crossover exhaust pipe in the selected finish

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks does not list any additional parts or software for the crossover pipe; it bolts in place of the factory crossover between the left downpipe and the mid pipe.

Installation

• Evolution Racewerks does not publish an installation guide or video for the crossover pipe.
• Installs in place of the factory crossover pipe beneath the transmission, connecting the left-side downpipe to the left side of the mid pipe.
• Contact Speed Logic for installation support or a recommended installer.

Notes

• Evolution Racewerks designates this part for off-road competition use only; not legal on pollution-controlled vehicles on public roads.
• Not for sale, installation or use on licensed vehicles in California. A vehicle compliance waiver is required at purchase.

PART NUMBER

• BM-EXH028S-CR — Brush Finish
• BM-EXH028P-CR — Polish Finish
• BM-EXH028TB-CR — Ceramic Thermal Coating
