Fuel-It! / Burger Motorsports Charge Pipe Injection (CPI) Kit – BMW M240i, 340i, 440i (F22/F23, F30, F32/F33/F36, Gen 1 B58)

OVERVIEW

Flash tunes and JB4 maps have removed the software fuel limits on the Gen 1 B58, which leaves the high pressure fuel pump as the bottleneck. With more boost or ethanol blends, rail pressure can sag and cause misfires and stumbling. This Fuel-It! charge pipe injection kit adds a 7th injector in the charge pipe, fed from the low pressure fuel system, to supply the extra fuel the engine needs.

The kit centers on a 950cc PWM injector, a Cam-Loc 5/16" fuel line adapter and a -4AN feed line, with an optional CNC machined coupler that fits the factory charge pipe. Pair it with the JB4 FSB controller for JB4-tuned cars or the stand alone controller for flash-only setups – both are plug and play – and run methanol, ethanol, E85, race gas or pump gas.

SPECS

• Injector: 950cc, PWM controlled, 1/8" NPT (meth bung) mount
• Fuel feed: -4AN (1/4") line from the low pressure fuel system
• Fuel line adapter: Cam-Loc 5/16"
• Billet adapter with 1/8" NPT bungs
• Optional CNC machined coupler compatible with the factory charge pipe
• Controller options: JB4 FSB (JB4 users) or stand alone (flash only) – plug and play
• Fuel compatibility: methanol, ethanol, E85, race gas, pump gas
• Injector body available in single-input or dual-connection (daisy-chain) versions
• Shipping weight: approx. 4 lb

PARTS INCLUDED

• (1) 950cc injector with 1/8" NPT (meth bung) mount
• (1) Cam-Loc 5/16" fuel line adapter
• (1) Billet adapter with 1/8" NPT bungs
• (1) -4AN (1/4") fuel line
• (1) Injector harness
• (1) Installation tool
• Hose clamps, couplers and accessories
• Charge pipe coupler – kit options that include it

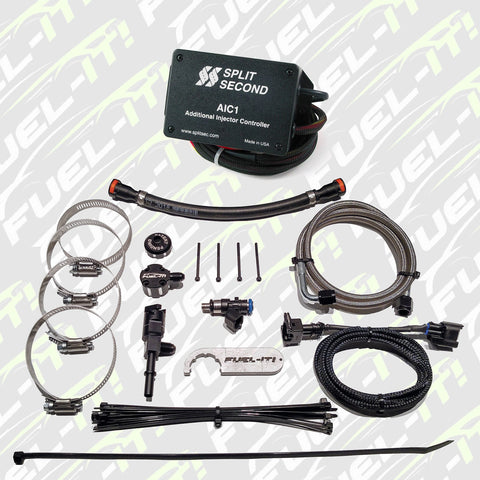

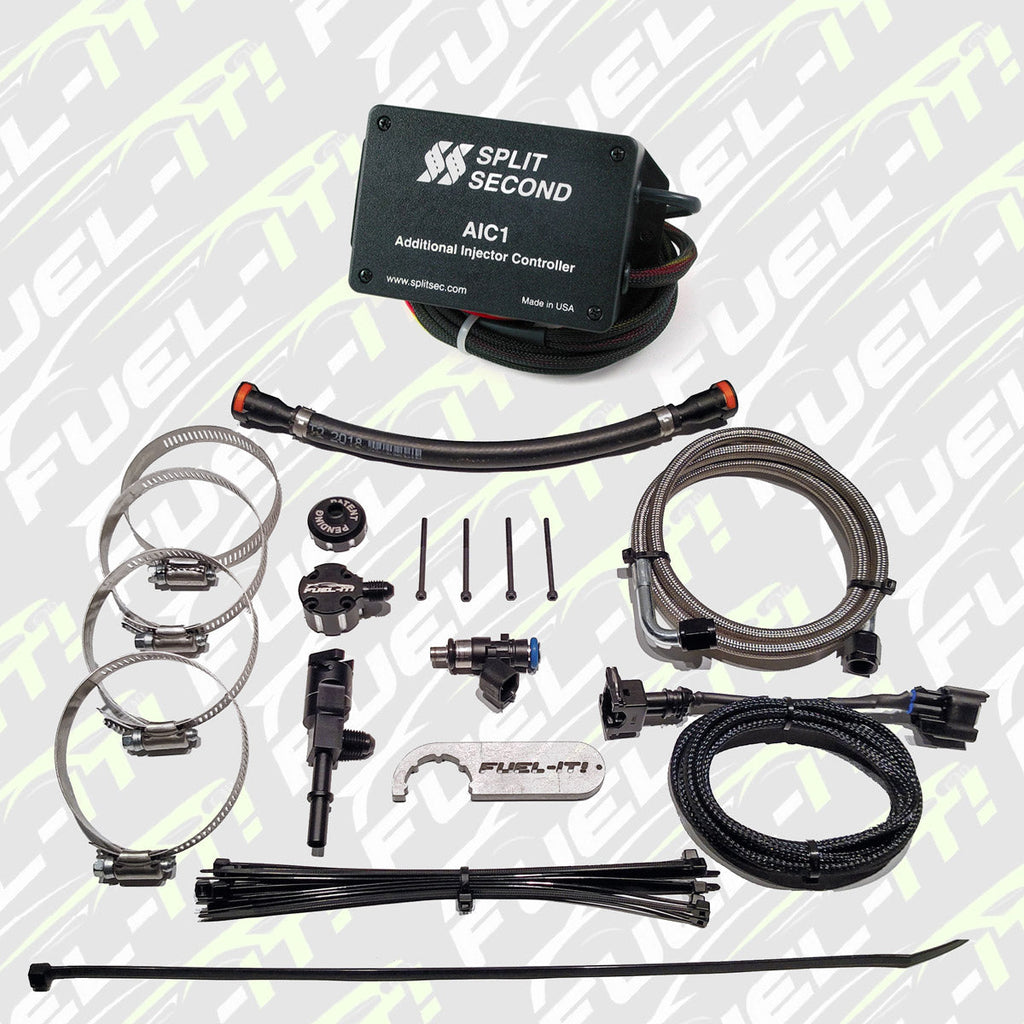

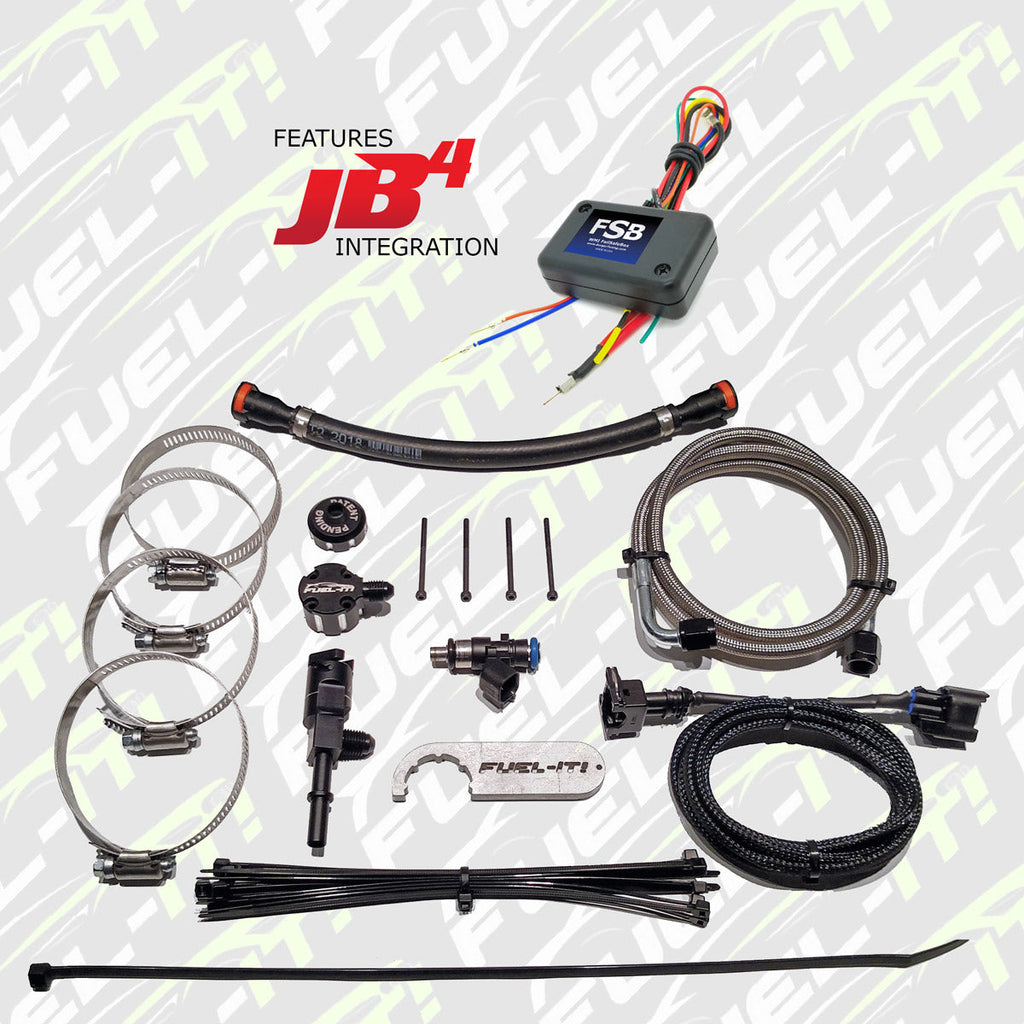

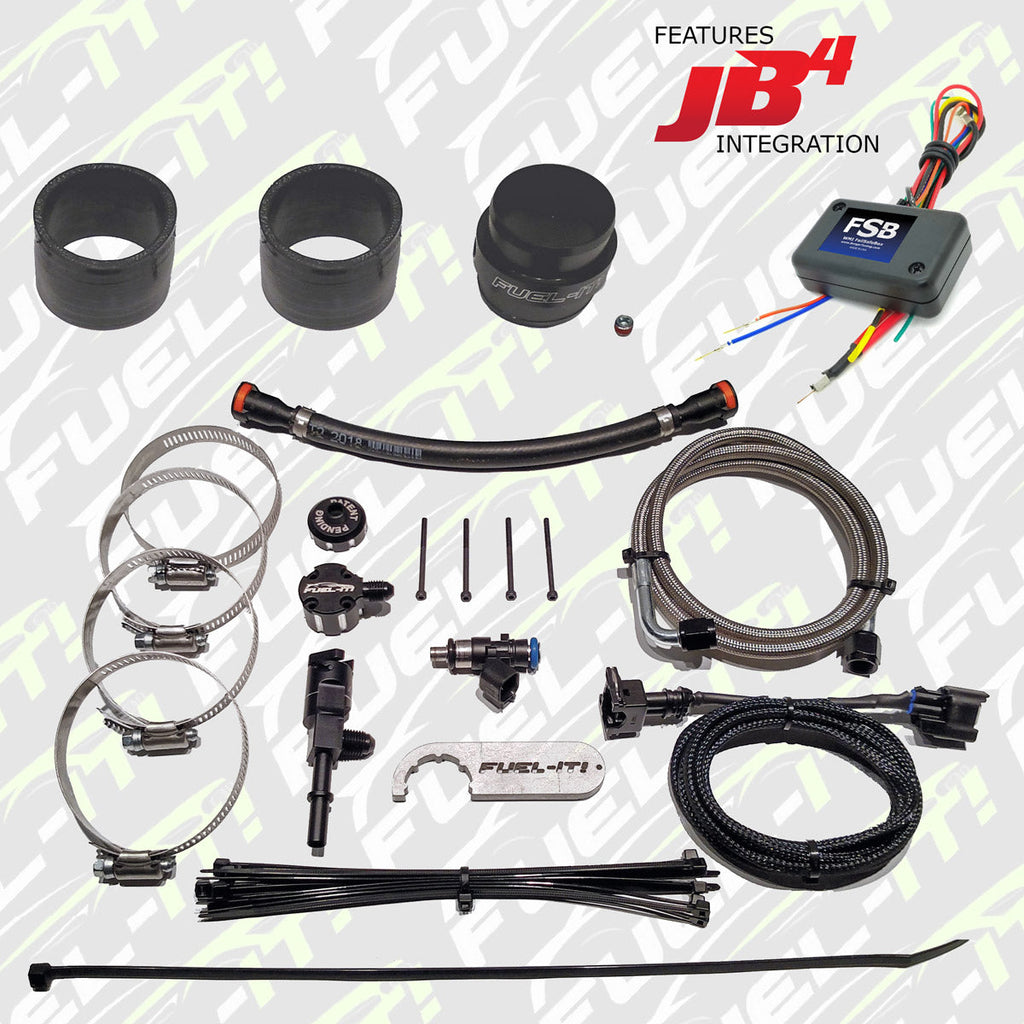

• JB4 FSB controller or stand alone controller – kit options that include it

TECH RESOURCES

Additional Parts Required

• Required: a port injection controller to drive the PWM injector – JB4 FSB controller for JB4 users, or a stand alone controller for flash-only cars (both available as kit options).
• Optional: charge pipe coupler (available as a kit option).

Installation

• JB4 Port Injection / CPI Controller Wiring Guide (Burger Motorsports guide)

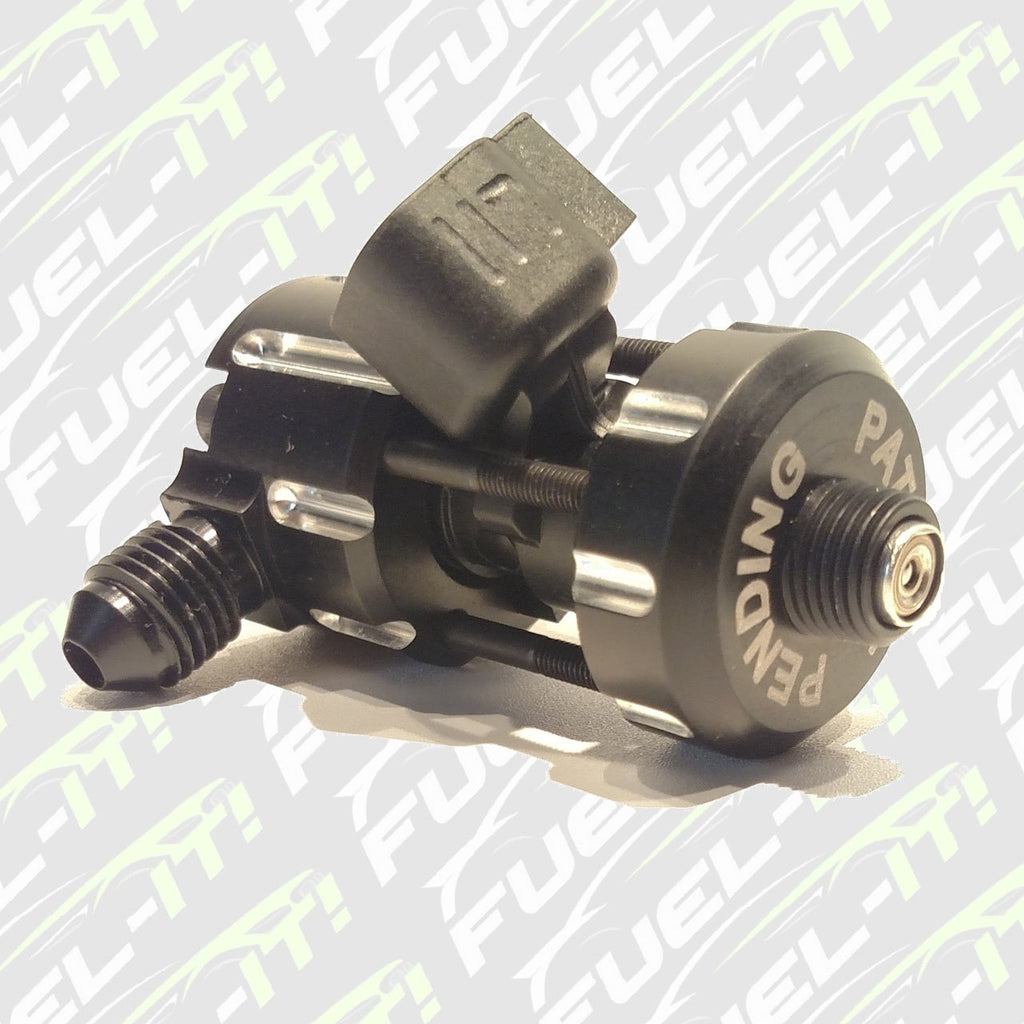

• Fuel-It! Charge Pipe Injector Assembly

VEHICLE APPLICATIONS

For Gen 1 B58 engines with the factory charge pipe. Not for Gen 2 B58 (G chassis / Toyota Supra).
