Fuel-It! / Burger Motorsports Port Injection Kit – BMW B58 Gen 1 & Gen 2 / Toyota GR Supra (B58)

OVERVIEW

The Fuel-It! port injection kit from Burger Motorsports adds six supplemental low-pressure injectors to BMW's B58 inline-six, covering both first-generation and updated Gen 2 (B58TU) engines as well as the Toyota GR Supra. Running a second stage of fuel delivery alongside the factory direct injection gives high-ethanol, E85 and methanol builds the fuel they need at high boost.

Machined from billet and anodized black for a clean, factory-like look, the manifold spacers install with the supplied hardware, heavy-duty gaskets and a plug-and-play braided fuel line adapter. With suitable injectors, controller and supporting mods, the setup is capable of supporting 1,000+ wheel horsepower.

SPECS

• Adds six supplemental low-pressure port fuel injectors
• CNC-machined manifold spacers, black anodized finish
• Fits B58 Gen 1 and Gen 2 (B58TU) engines
• Accepts 42mm port injectors (DW, Injector Dynamics and similar)
• Suitable for E85, methanol and other performance fuels
• Supports 1000+ whp with appropriate injectors and supporting mods
• Injector guide: DW 750cc up to approx. 850 whp, DW 950cc up to approx. 950 whp, ID1050X 1050cc up to approx. 1100 whp

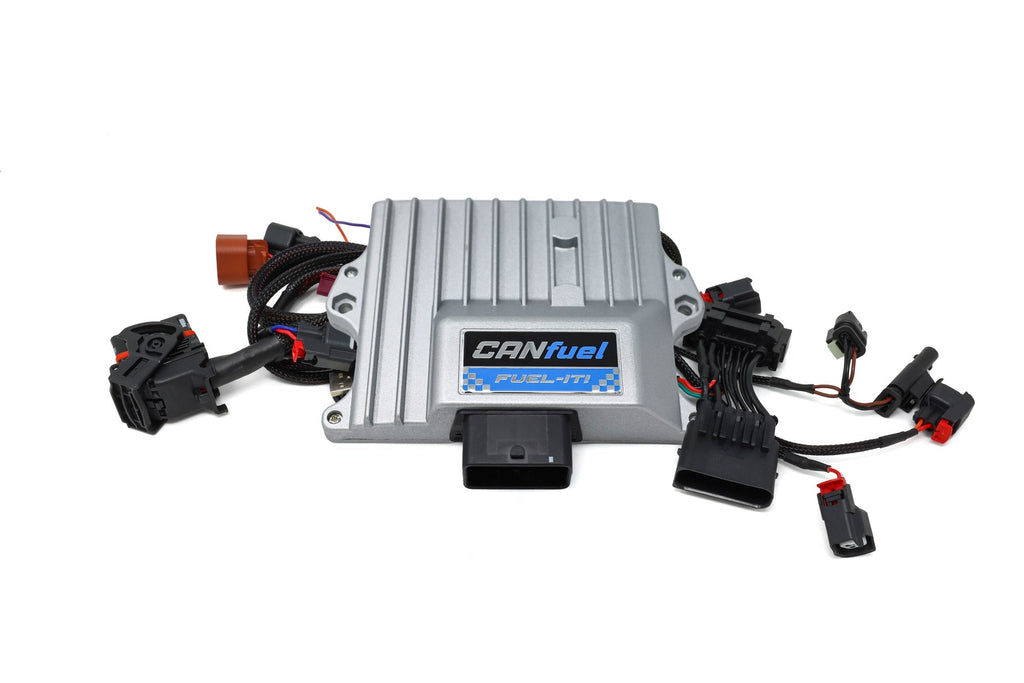

• Compatible with Fuel-It! CANfuel sequential controller (controls up to 8 injectors)
• Not compatible with hybrid or mild-hybrid (48V) vehicles

PARTS INCLUDED

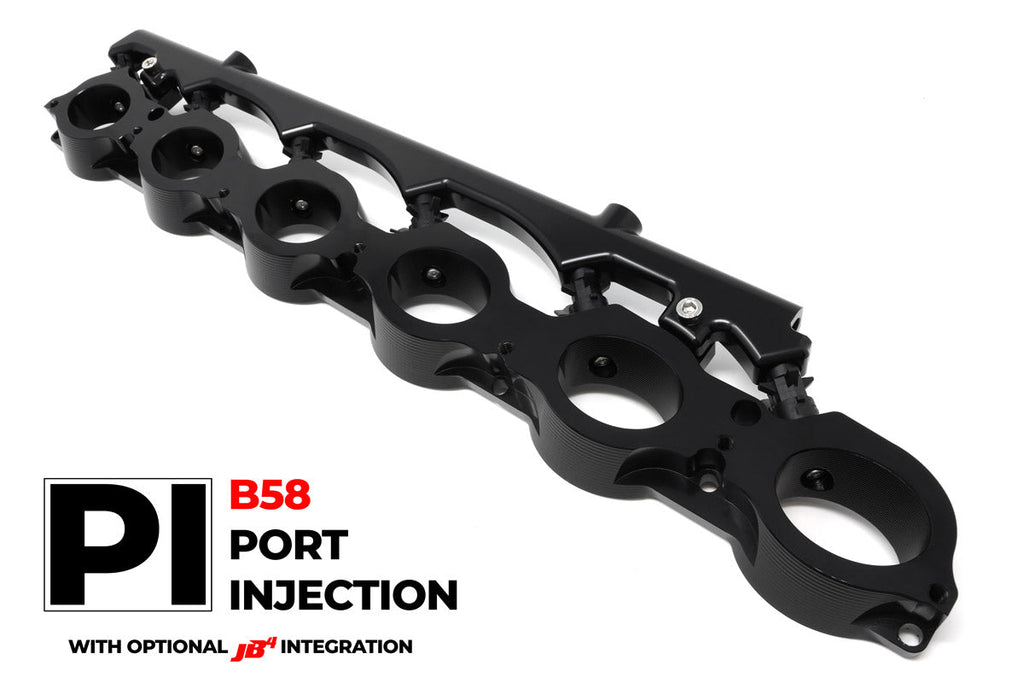

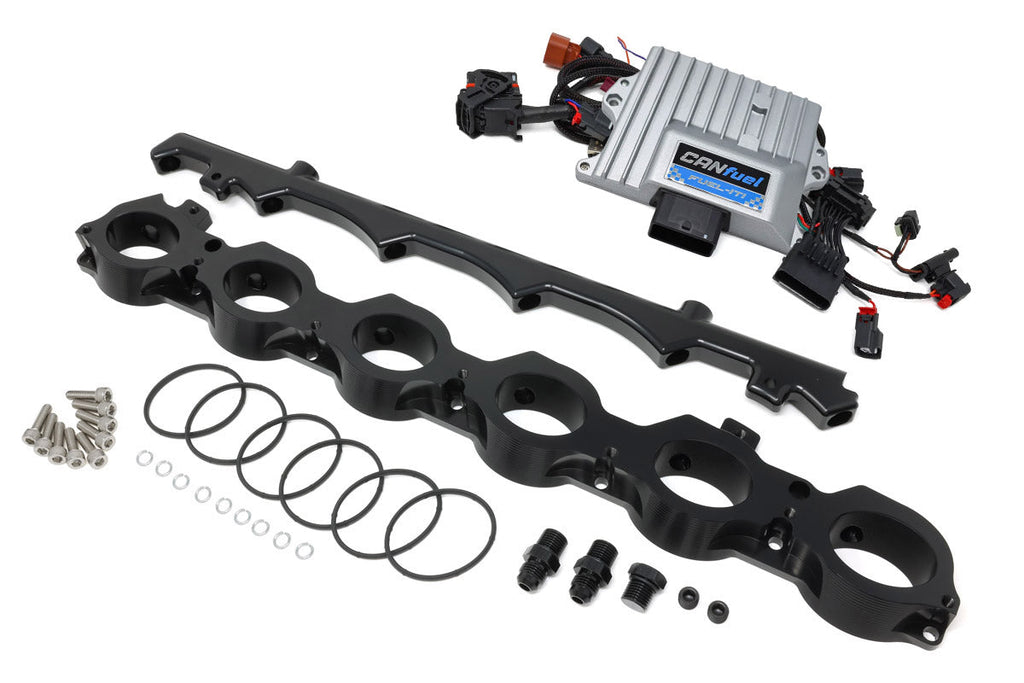

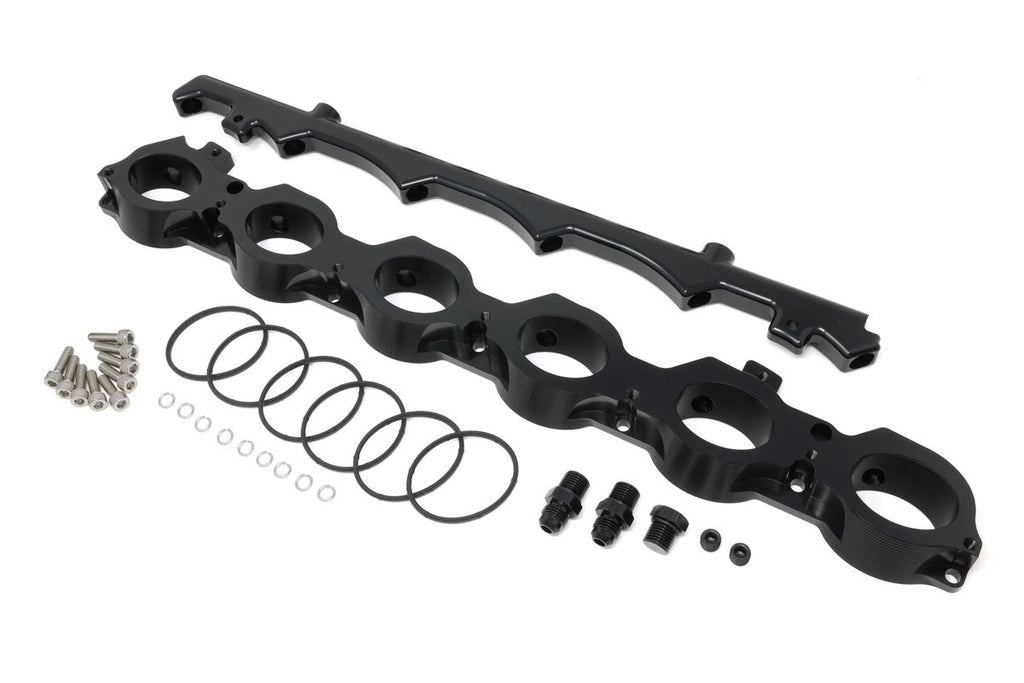

• (1) Set of CNC-machined port injection manifold spacers (black anodized)
• (1) Installation hardware kit
• (1) Heavy-duty gasket set

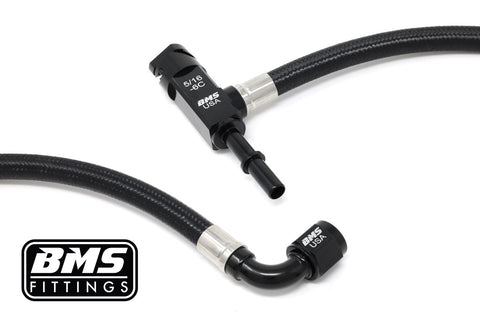

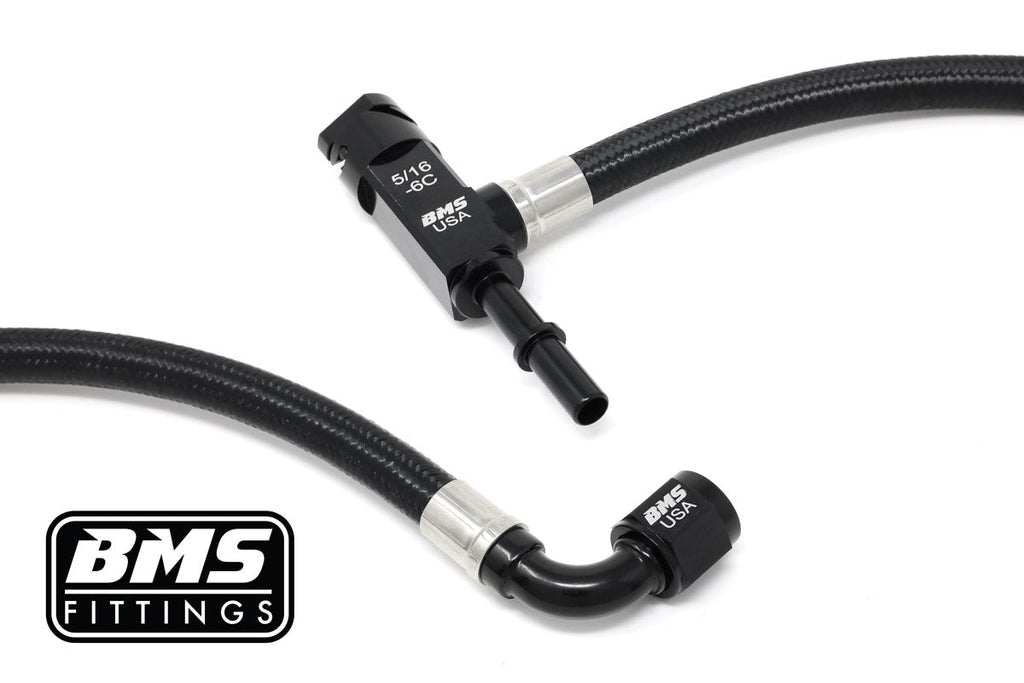

• (1) Plug-and-play braided fuel line adapter

Injectors, fuel line and the port injection controller are included only when you select them as options on this listing.

TECH RESOURCES

Additional Parts Required

• Required: aftermarket charge pipe to clear the added manifold height. Gen 1 B58: BMS Elite aluminum replacement charge pipe. Gen 2 B58 (B58TU): BMS Elite B58TU charge pipe (with or without BOV kit). Contact Speed Logic to order.
• Required: basic port injection fuel line (selectable as an option on this listing).

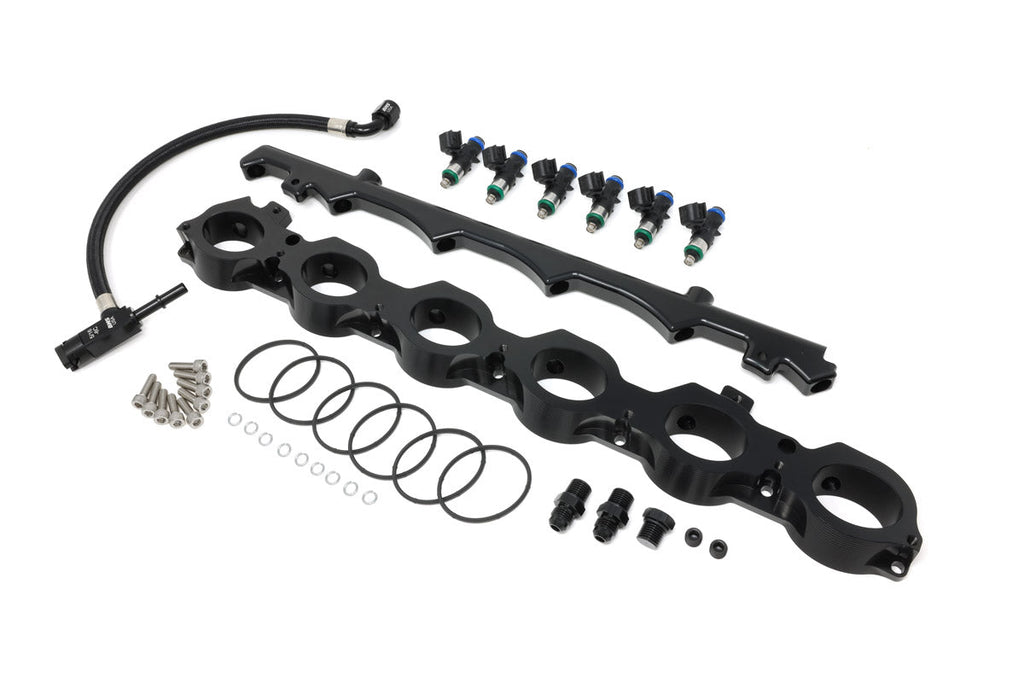

• Required: set of six 42mm low-pressure port fuel injectors (selectable as an option on this listing). Flow-matched DW 750cc (up to approx. 850 whp), DW 950cc (up to approx. 950 whp) or Injector Dynamics ID1050X 1050cc (up to approx. 1100 whp) sets are available separately.

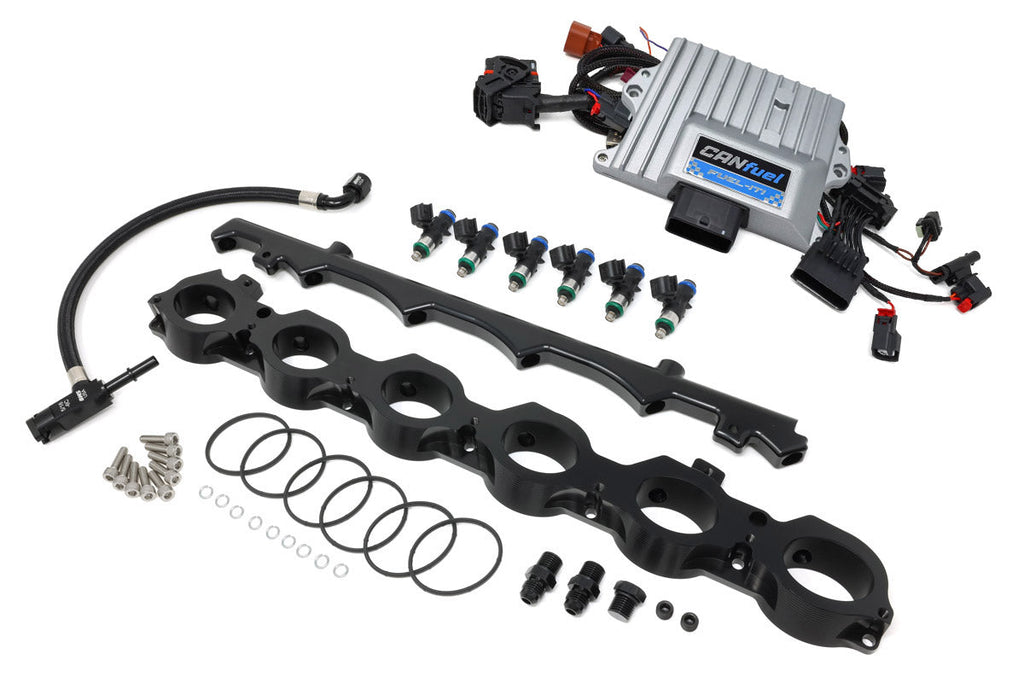

• Required: port injection controller (selectable as an option on this listing), such as the Fuel-It! CANfuel Sequential Port Fuel Injection Controller or the JB4 port injection controller.

Installation

• Burger Motorsports does not publish an install guide for this part. Contact Speed Logic for install support or in-house installation.

VEHICLE APPLICATIONS

Not compatible with hybrid or mild-hybrid (48V) B58 vehicles. An aftermarket charge pipe is required on all applications.
