OVERVIEW

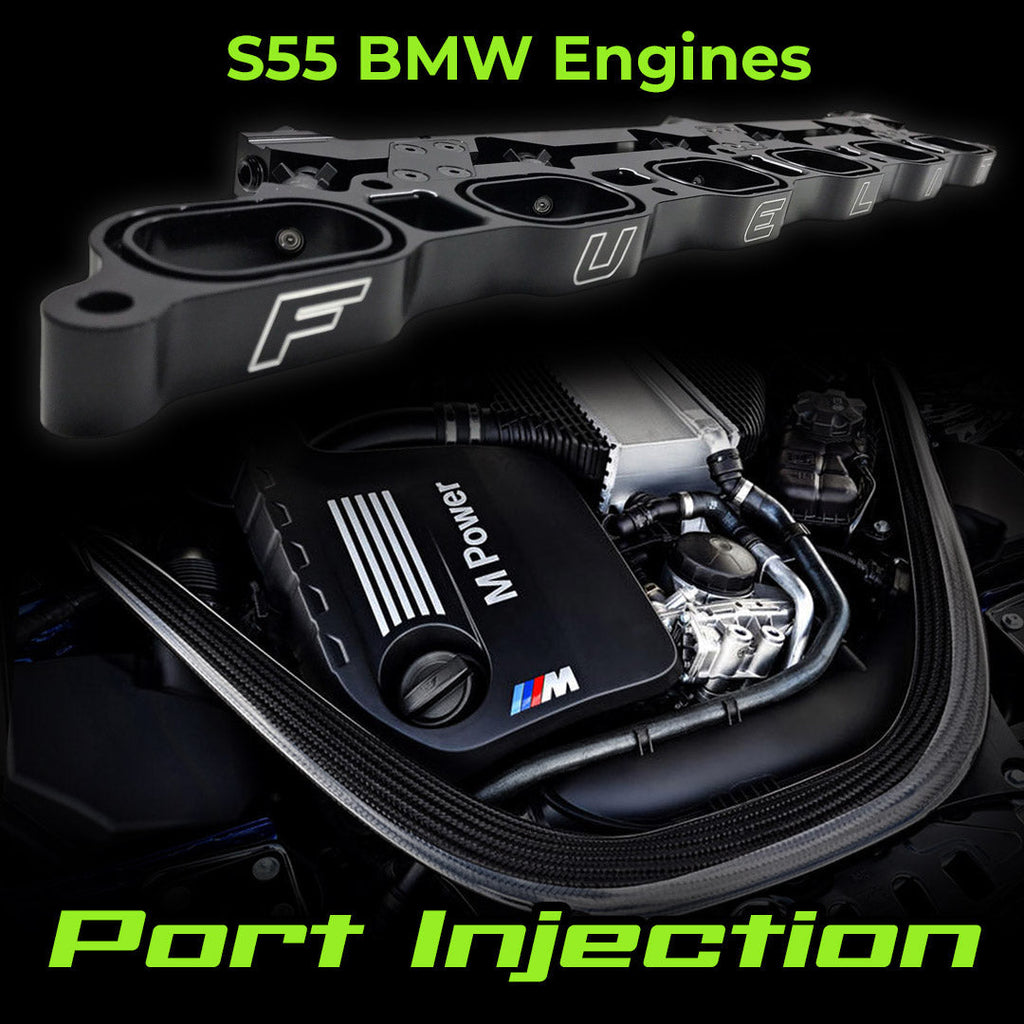

This Fuel-It! port injection kit from Burger Motorsports lets F-chassis BMW M2 Competition, M3 and M4 owners add a second bank of six low-pressure injectors to the factory direct-injection system. The extra fuel capacity is aimed at high-ethanol blends, E85, methanol and other performance fuels once the stock fuel system runs out of headroom.

The core of the kit is a set of CNC-machined manifold spacers finished in black anodizing, supplied with the hardware and gaskets needed to install them. Paired with the right injectors, fuel line and controller, the system is built to support well beyond 1,000 wheel horsepower.

SPECS

• Adds six supplemental low-pressure port fuel injectors

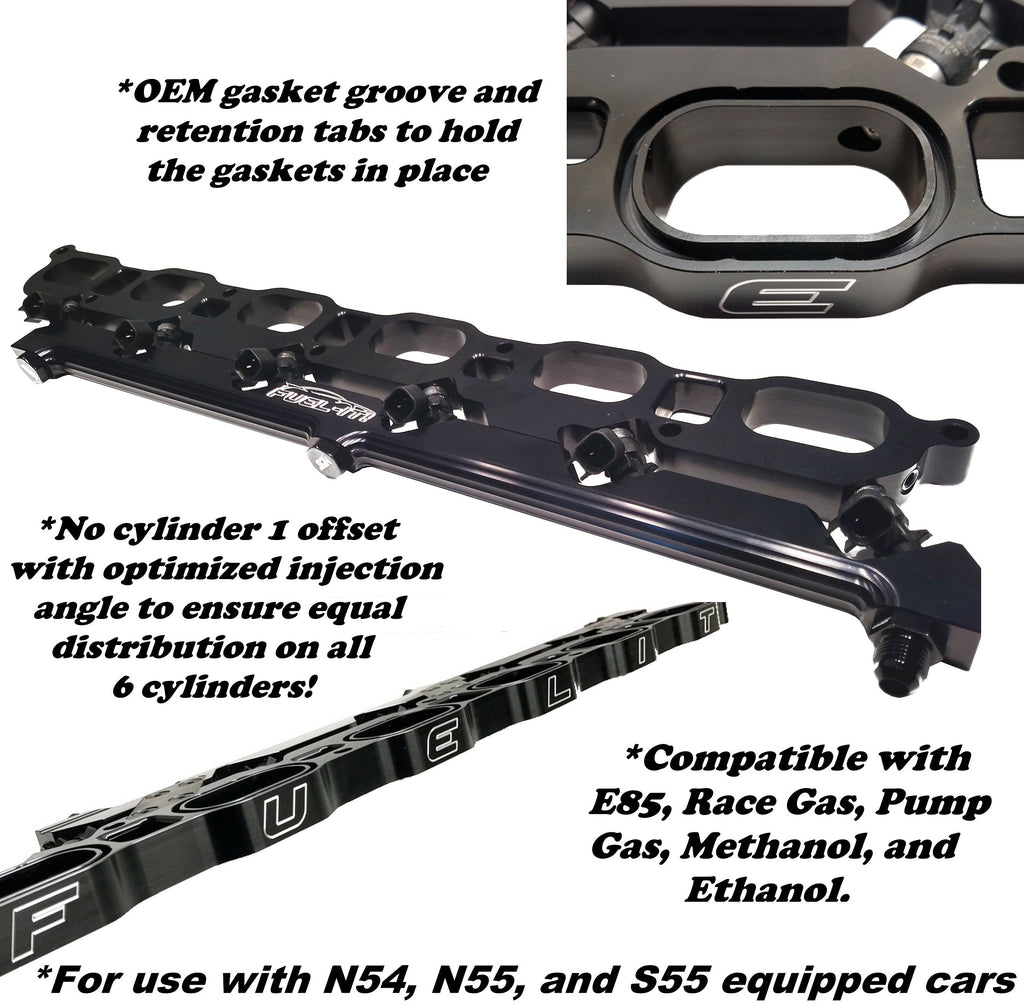

• CNC-machined manifold spacers, black anodized finish
• Accepts 42mm port injectors (DW, Injector Dynamics and similar)
• Suitable for E85, methanol and other performance fuels
• Supports 1000+ whp with appropriate injectors and supporting mods
• Injector guide: DW 750cc up to approx. 850 whp, DW 950cc up to approx. 950 whp, ID1050X 1050cc up to approx. 1100 whp

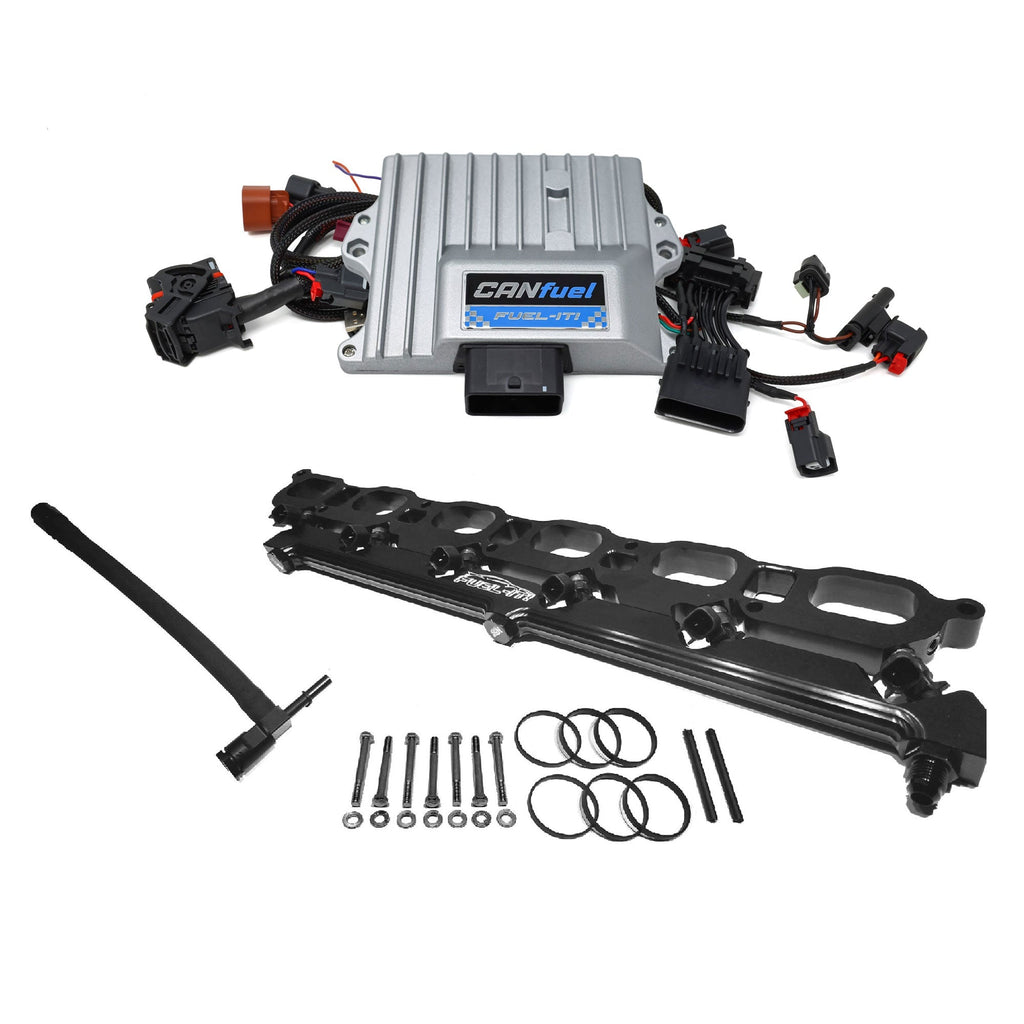

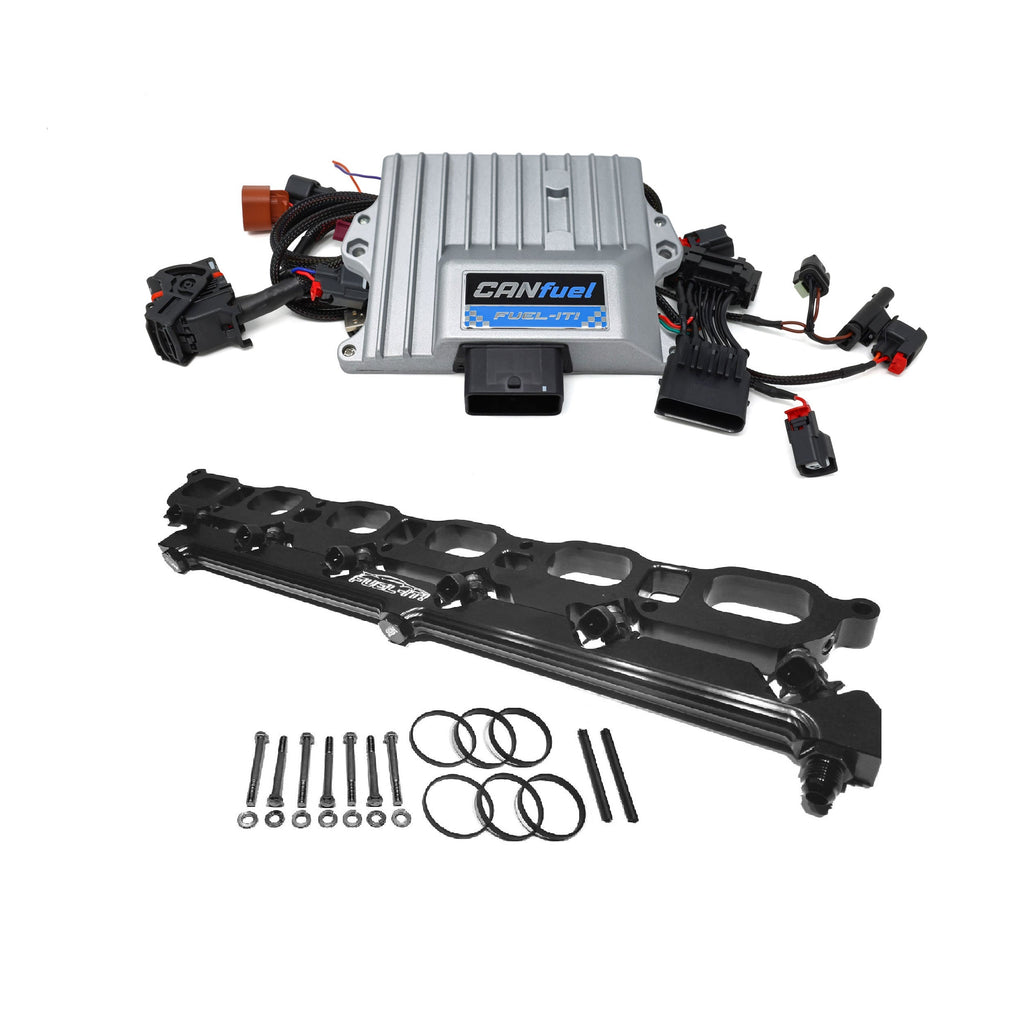

• Compatible with Fuel-It! CANfuel sequential controller (controls up to 8 injectors)

PARTS INCLUDED

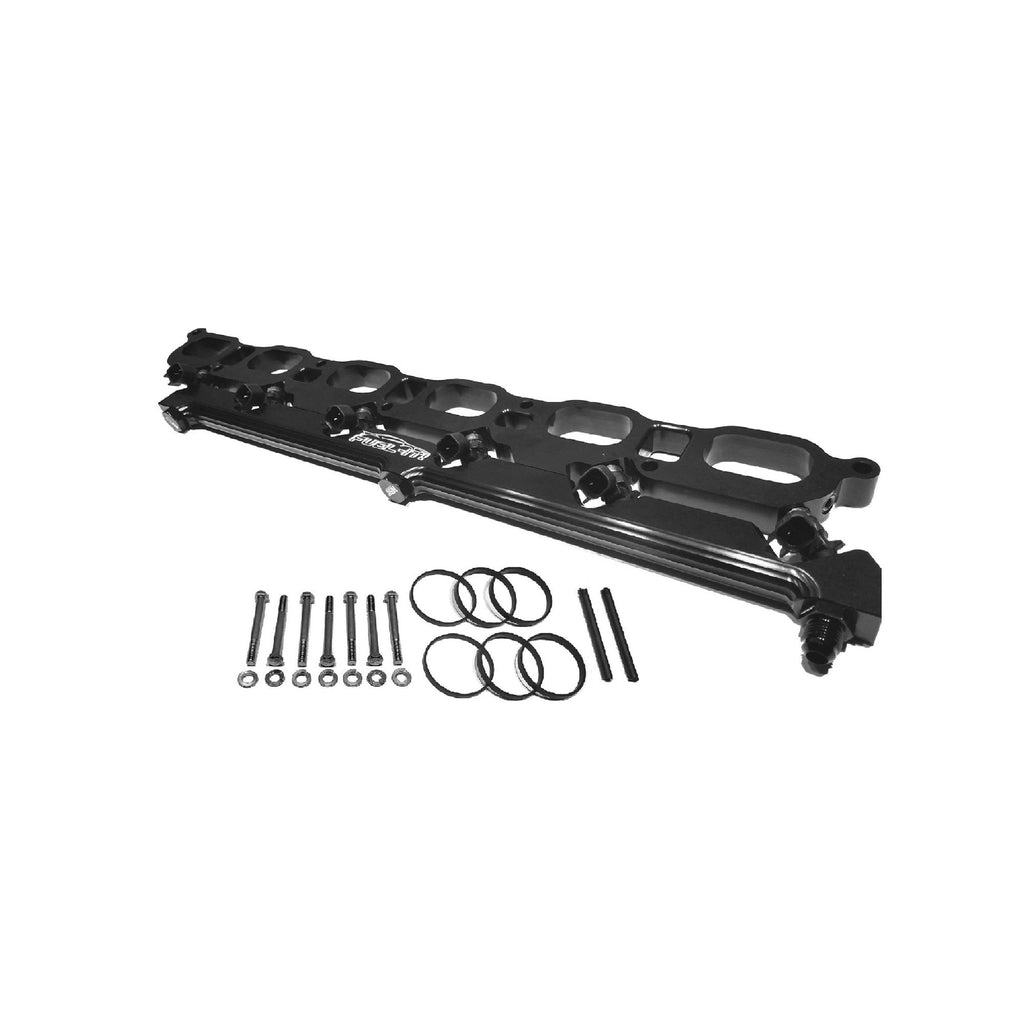

• (1) Set of CNC-machined port injection manifold spacers (black anodized)
• (1) Installation hardware kit
• (1) Gasket set

Injectors, fuel line and the port injection controller are included only when you select them as options on this listing.

TECH RESOURCES

Additional Parts Required

• Required: basic port injection fuel line (selectable as an option on this listing).
• Required: set of six 42mm low-pressure port fuel injectors (selectable as an option on this listing). Flow-matched DW 750cc (up to approx. 850 whp), DW 950cc (up to approx. 950 whp) or Injector Dynamics ID1050X 1050cc (up to approx. 1100 whp) sets are available separately.
• Required: port injection controller (selectable as an option on this listing), such as the Fuel-It! CANfuel Sequential Port Fuel Injection Controller or the JB4 port injection controller.

Installation

• Burger Motorsports does not publish an install guide for this part. Contact Speed Logic for install support or in-house installation.

VEHICLE APPLICATIONS

Also compatible with the N55-powered F87 M2.
