Fuel-It! / Burger Motorsports Port Injection Kit – BMW M2 / M3 / M4 / X3 M / X4 M (G87 / G80 / G82 / G83 / F97 / F98, S58)

OVERVIEW

Burger Motorsports' Fuel-It! S58 port injection kit adds a dedicated rail of six low-pressure injectors to BMW's S58 twin-turbo inline-six, giving 2020-and-newer M2, M3, M4, X3 M and X4 M builds the extra fuel capacity needed for E85, methanol and race fuel at high boost. Pump gas setups benefit as well.

The billet fuel rail is CNC machined, anodized and made in the USA. Installation is plug and play and typically takes around 30 minutes; the factory port-injector bosses are opened with the supplied drill bit and alignment jig. With suitable injectors and a controller, the system supports 1,000+ wheel horsepower.

SPECS

• Adds six supplemental low-pressure port fuel injectors
• CNC-machined billet fuel rail, anodized finish
• Made in USA
• Plug-and-play installation, approx. 30 minutes
• Accepts 42mm port injectors
• Compatible with pump gas, race gas, methanol and E85
• Supports 1000+ whp with appropriate injectors and supporting mods
• Injector guide: Injector Dynamics ID1050X 1050cc up to approx. 1100 whp
• Factory injector bosses are opened with the included 21/64" drill bit

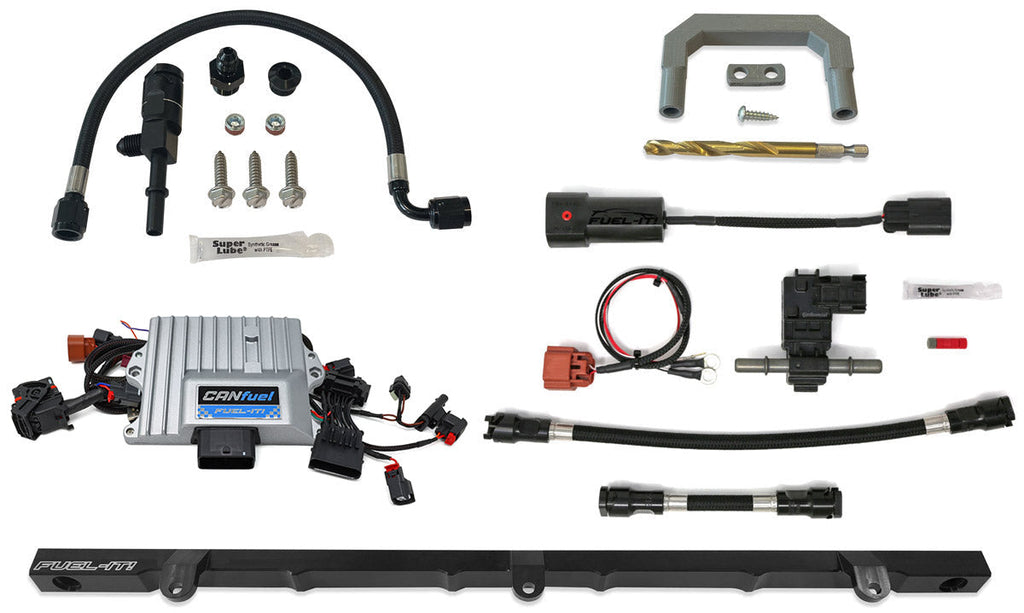

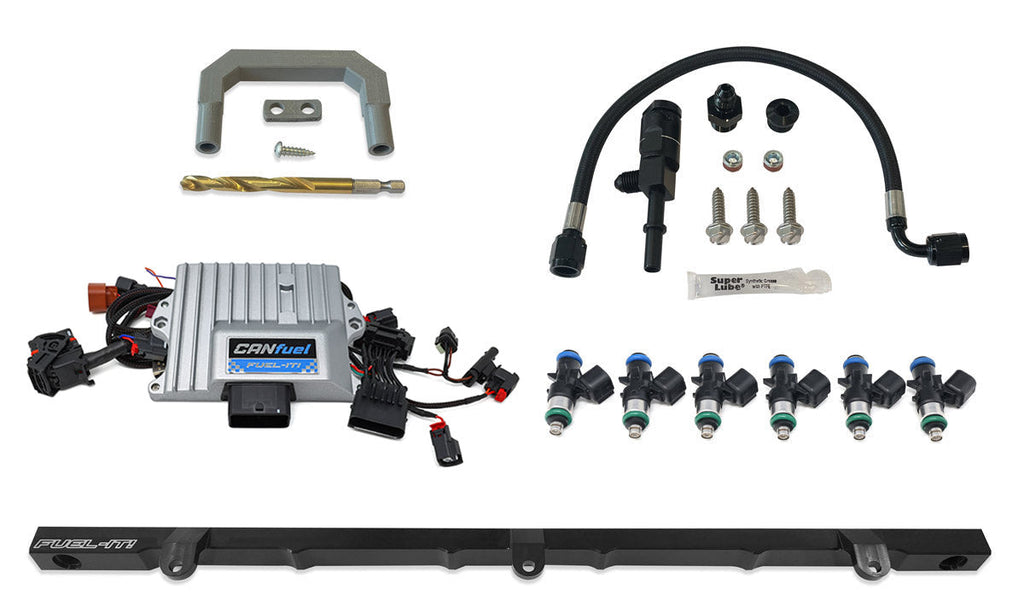

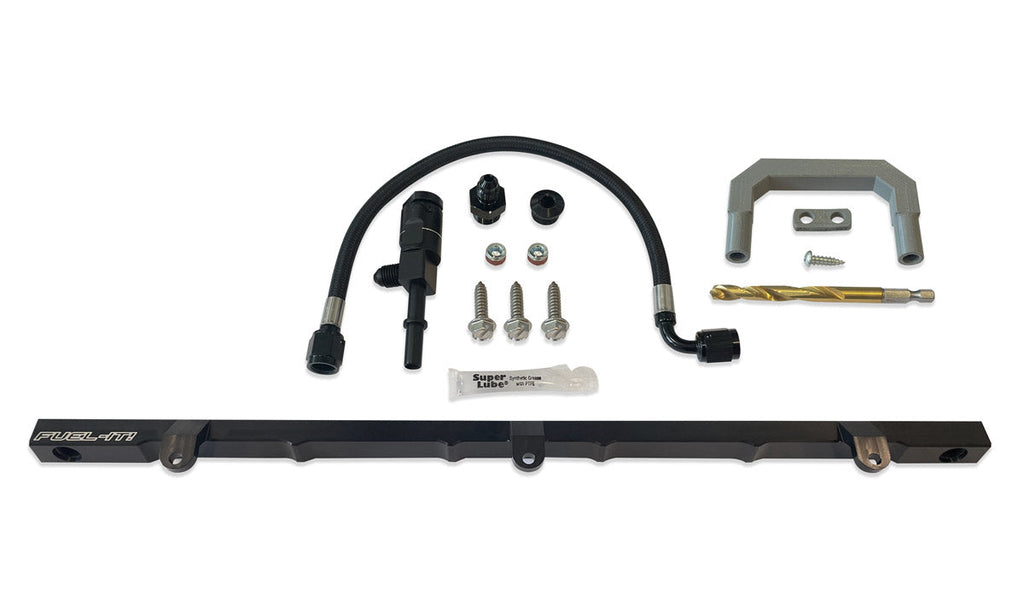

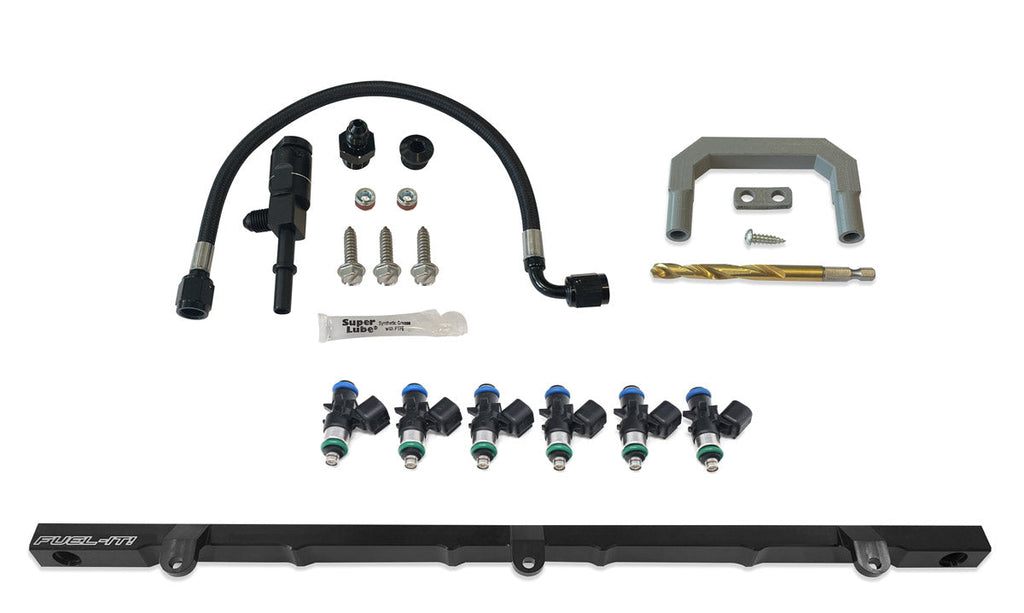

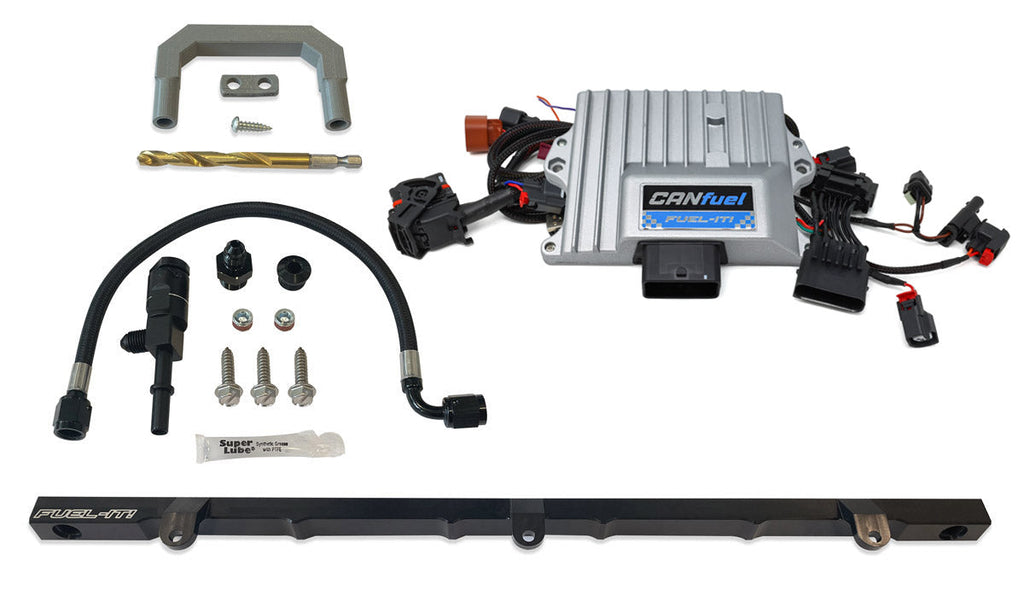

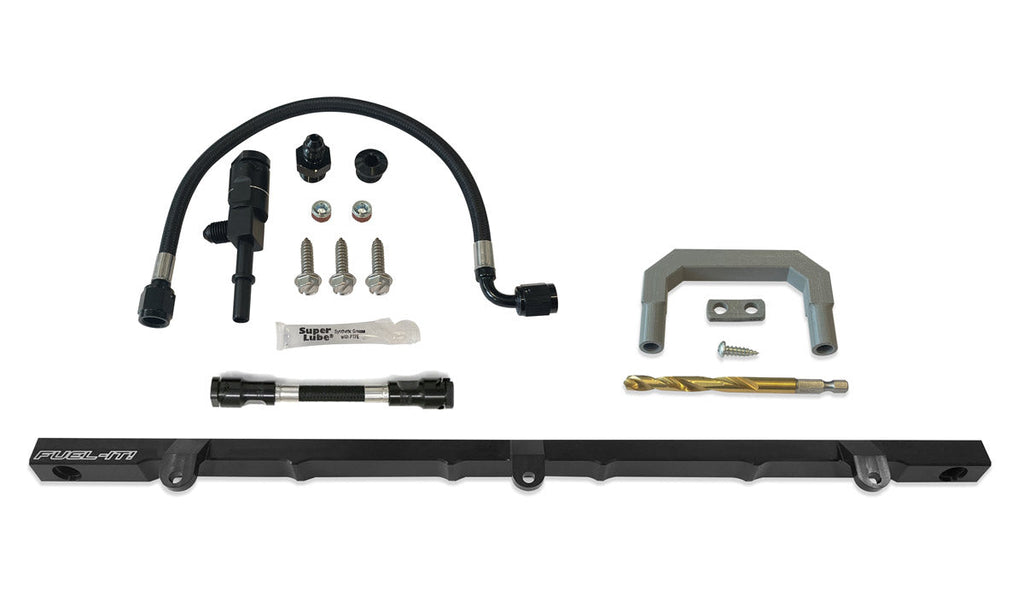

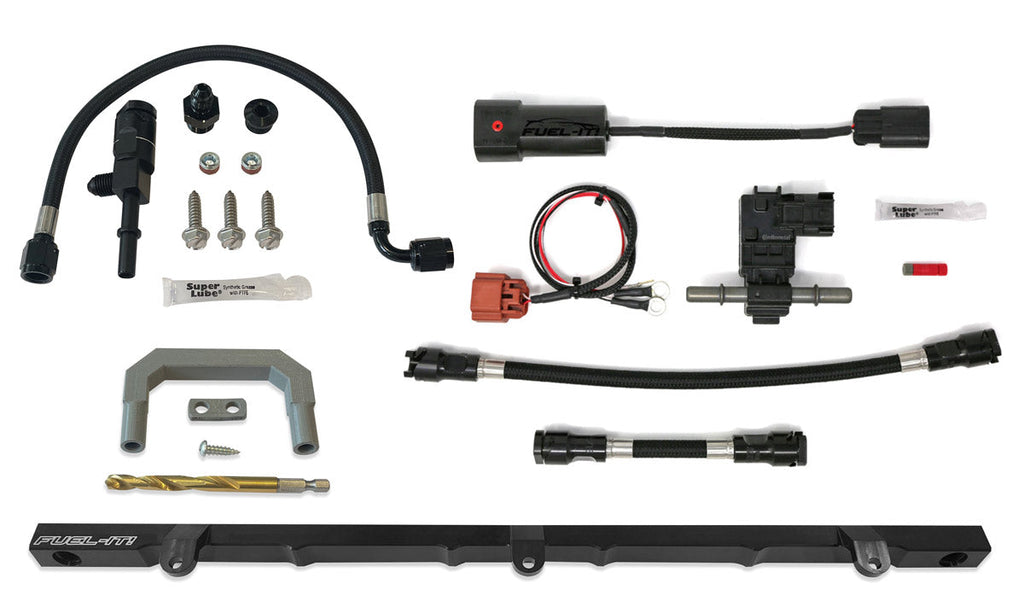

PARTS INCLUDED

• (1) Billet fuel rail
• (1) Stainless steel braided fuel line with black nylon sheathing
• (1) Billet tee fitting for fuel supply
• (1) -6AN ORB fitting
• (1) -6AN ORB plug
• (2) 1/8" NPT plugs
• (3) 14 x 1 stainless steel screws (rail to manifold)
• (1) Injector installation jig
• (1) 8 x 3/4" jig screw
• (1) 21/64" drill bit
• (1) Superlube

Injectors, the port injection controller and a flex fuel kit are included only when you select them as options on this listing.

TECH RESOURCES

Additional Parts Required

• Required: set of six 42mm low-pressure port fuel injectors. The Injector Dynamics ID1050X 1050cc set (up to approx. 1100 whp) is selectable as an option on this listing.
• Required: port injection controller (selectable as an option on this listing). JB4 users: BMS port injection controller or Fuel-It! CANfuel Sequential Port Fuel Injection Controller. Flash-tune or stock ECU (no JB4): stand-alone (flash-only) port injection controller. Contact Speed Logic to order.
• Recommended: flex fuel kit (Fuel-It! or CANflex) when running ethanol blends or E85, to read real-time ethanol content. Owners with an existing Fuel-It! flex fuel kit need the matching line for the tee fitting.

Installation

• S58 Port Injection Kit Install Video (Burger Motorsports)
