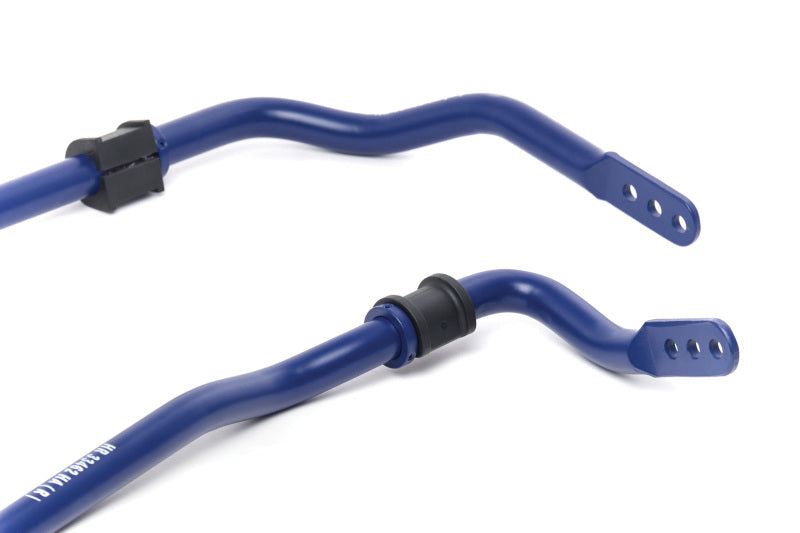

H&R Sport Sway Bar Kit – BMW 335i / 340i / 435i / 440i / M235i / M240i xDrive (F22/F3x, N55/B58)

OVERVIEW

H&R's Sport Sway Bar Kit for the xDrive six-cylinder F22, F30, F32, F33, F34 and F36 cars replaces the factory anti-roll bars with stiffer H&R bars, increasing roll stiffness to cut body roll and sharpen turn-in without lowering the car or affecting ride quality. It's available as a matched Front & Rear Set, or as a Front Only or Rear Only bar so you can tune the front-to-rear balance or upgrade one end at a time.

H&R's urethane/Teflon composite bushings are included with each bar; they resist squeaks and need no lubrication. The front bar has a 2-hole adjustable end so roll stiffness can be tuned.

SPECS

• Front bar: 28mm, 2-hole adjustable (70878-3)
• Rear bar: 20mm, non-adjustable (71878)
• Increases roll stiffness versus the factory sway bars to reduce body roll
• Does not change ride height, spring rate or damping
• Urethane/Teflon composite bushings — no lubrication required
• Made in Germany at H&R's ISO9001-certified facility
• Available as Front & Rear Set, Front Only, or Rear Only

PARTS INCLUDED

• Sway bar(s) for the selected configuration (Front & Rear Set, Front Only, or Rear Only)
• H&R mounting bushings and hardware for the selected configuration
• See the fitting instructions supplied in the box for the full bill of materials

TECH RESOURCES

Additional Parts Required

• None. H&R includes the mounting bushings and hardware needed for installation with each configuration; the factory end links are reused.
• Installer-supplied tools: jack and stands, standard hand tools and a torque wrench.

Installation

• Illustrated fitting instructions are included in the box with each sway bar. H&R does not publish a separate per-application installation PDF for its sway bars.
• H&R Warranties & Claims (PDF) — official H&R warranty terms, coverage periods and claim procedure.

Notes

• xDrive only. Rear-wheel-drive cars take 72878-2.
• The rear bar (71878) is shared with the RWD kit; the front bar is xDrive-specific.
• Confirm your exact model and drivetrain with Speed Logic before ordering.

PART NUMBER

• 72878-3 — Front & Rear Set
• 70878-3 — Front Only
• 71878 — Rear Only
