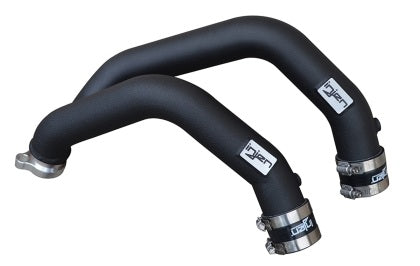

Injen Charge Pipes – BMW M3 / M4 (F80 / F82, S55)

OVERVIEW

Injen intercooler charge pipes are the next logical step in the search for power on an S55-powered BMW. After investigating the OE piping, Injen's engineers identified numerous areas where improvement was necessary and built a replacement system from mandrel-bent aluminum that eliminates the rust buildup present in most stock pipes.

The kit includes Injen's automotive-grade silicone couplers and stainless steel band clamps with an inner protective liner. Compared to conventional silicone, Injen's automotive-grade couplers offer greater resistance to heat, pressure, fuel and oil, which extends coupler life by preventing leaks and blowouts. Beaded tube ends further help keep the couplers seated under boost.

The system is designed to work with the factory intercooler as well as an Injen performance intercooler, uses all factory mounting locations, and ships with the hardware needed for installation. Like the rest of the Injen performance range, it carries the Injen Limited Lifetime Warranty.

SPECS

• 2.25" mandrel-bent 6061-T6 aluminum charge piping
• Two TIG-welded 1/8" NPT ports
• Precision CNC-machined flanges
• Beaded tube ends to help prevent couplers from backing off
• Stainless steel band clamps with inner protective liner
• Automotive-grade silicone couplers
• Injen logo plate
• Compatible with the OE intercooler or an Injen performance intercooler
• Uses all factory mounting locations
• Increases throttle response and reduces turbo lag
• Shipping weight 5.0 lb; package 14" W x 9" H x 26" L
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty
• Not CARB exempt

PARTS INCLUDED

• 2 x intercooler charge pipes
• 2 x 2-1/4" straight silicone hose (#3035)
• 4 x clamps (#4009)
• 2 x 1/8" NPT fitting (#8054)
• Printed 4-page installation manual

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part.
• Installer-supplied: metric socket and wrench set, flat-blade screwdriver, and a torque wrench.

Installation

• Injen SES1116ICP installation instructions (PDF)

Notes

• Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• The previous listing described the piping as 6061-T1 aluminum. Injen's official product data specifies 6061-T6, which is used above.

PART NUMBER

• SES1116ICP — Polished
• SES1116ICPWB — Wrinkle Black
• SES1116ICPWR — Wrinkle Red
