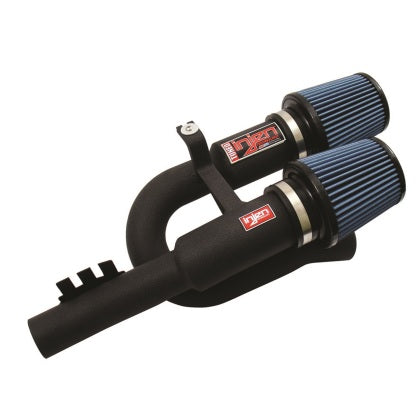

Injen Cold Air Intake – BMW 135i / 335i / 335i xDrive (N54)

OVERVIEW

The SP series is Injen Technology's flagship line of traditional aluminum intake systems. Injen was the world's first tuned air intake manufacturer and holds four patents covering the intake tuning process. This kit carries several of those patented technologies, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669).

At the center of the system is a 6061-T6 aluminum intake tube that gives air a smooth, uninterrupted path into the N54. A fully functional ram air scoop feeds cool air directly to the filter, and Injen tuned the system to deliver power while holding a safe air/fuel ratio across the power band, so no additional tuning is required.

A fully serviceable SuperNano-Web dry air filter provides increased surface area for greater airflow and strong filtration, and the system produces an aggressive, throaty tone under full throttle. The kit is offered in polished and wrinkle black finishes and is covered by the Injen Technology Limited Lifetime Warranty.

SPECS

• Short ram air intake design
• Dyno-proven gains of up to 13 hp and 12 lb-ft of torque
• Injen patented MegaRam (MR) Technology
• Fully functional ram air scoop directs cool air into the air filter
• 6061-T6 aluminum intake tubing
• Available in polished or wrinkle black finish
• Fully serviceable Injen SuperNano-Web dry air filter
• Replacement air filter part number X-1017-BB
• Optional hydro-shield part number 1035BLK or 1035RED
• Maintains factory air/fuel ratios; no additional tuning required
• Retains the OEM mass air flow sensor
• Smooth intake piping eliminates restrictions and improves airflow
• Aggressive engine tone under full throttle
• Shipping weight 10.0 lb
• Does not fit vehicles equipped with active steering
• CARB EO # D-476-8, excluding SULEV vehicles with test group numbers 7BMXV03.0N51 and 8BMXV03.0N51
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• Two-piece aluminum intake tubes
• 3.0" SuperNano-Web dry air filter (#1017)
• 3/16" ID x 1/2" aluminum spacer (#10016)
• Stainless steel vibra-mount support bracket
• Power steering cup with bracket
• Air scoop support bracket
• Front mount air scoop
• M6 flange nuts
• M6 x 35mm hex cap screw
• M6 x 10mm hex cap screws
• Fender washers
• Vibra-mount
• Printed 10-page installation instructions

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part, and no tune is required.
• Installer-supplied: metric socket and wrench set, flat-blade screwdriver, and a torque wrench.
• Optional service items: replacement SuperNano-Web dry filter X-1017-BB, hydro-shield 1035BLK or 1035RED, and an Injen dry filter cleaning kit.

Installation

• Injen SP1125 installation instructions (PDF)

PART NUMBER

• SP1125P — Polished
• SP1125WB — Wrinkle Black
