Injen Evolution Air Intake EVO1105 – BMW 340i / 440i / M240i (B58)

OVERVIEW

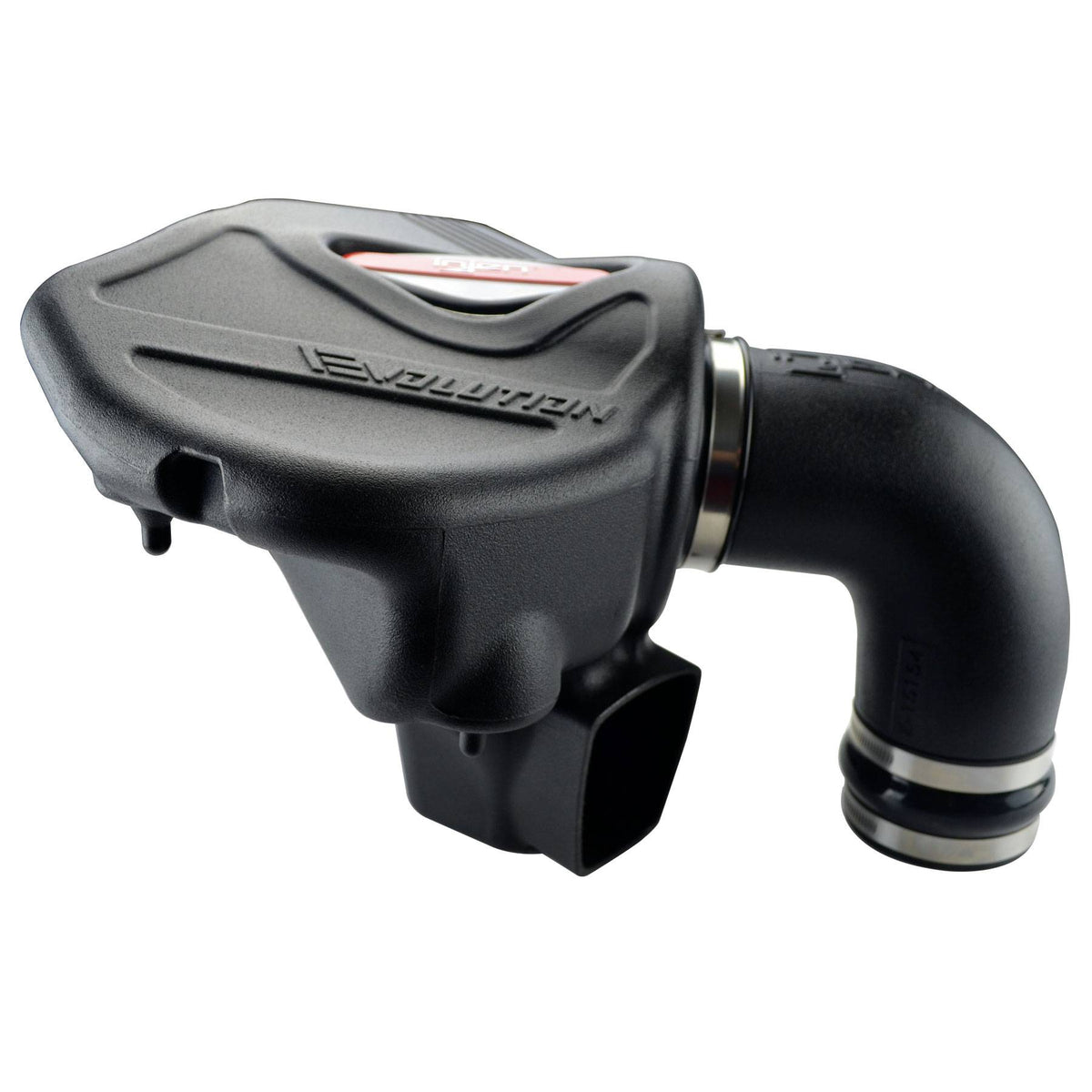

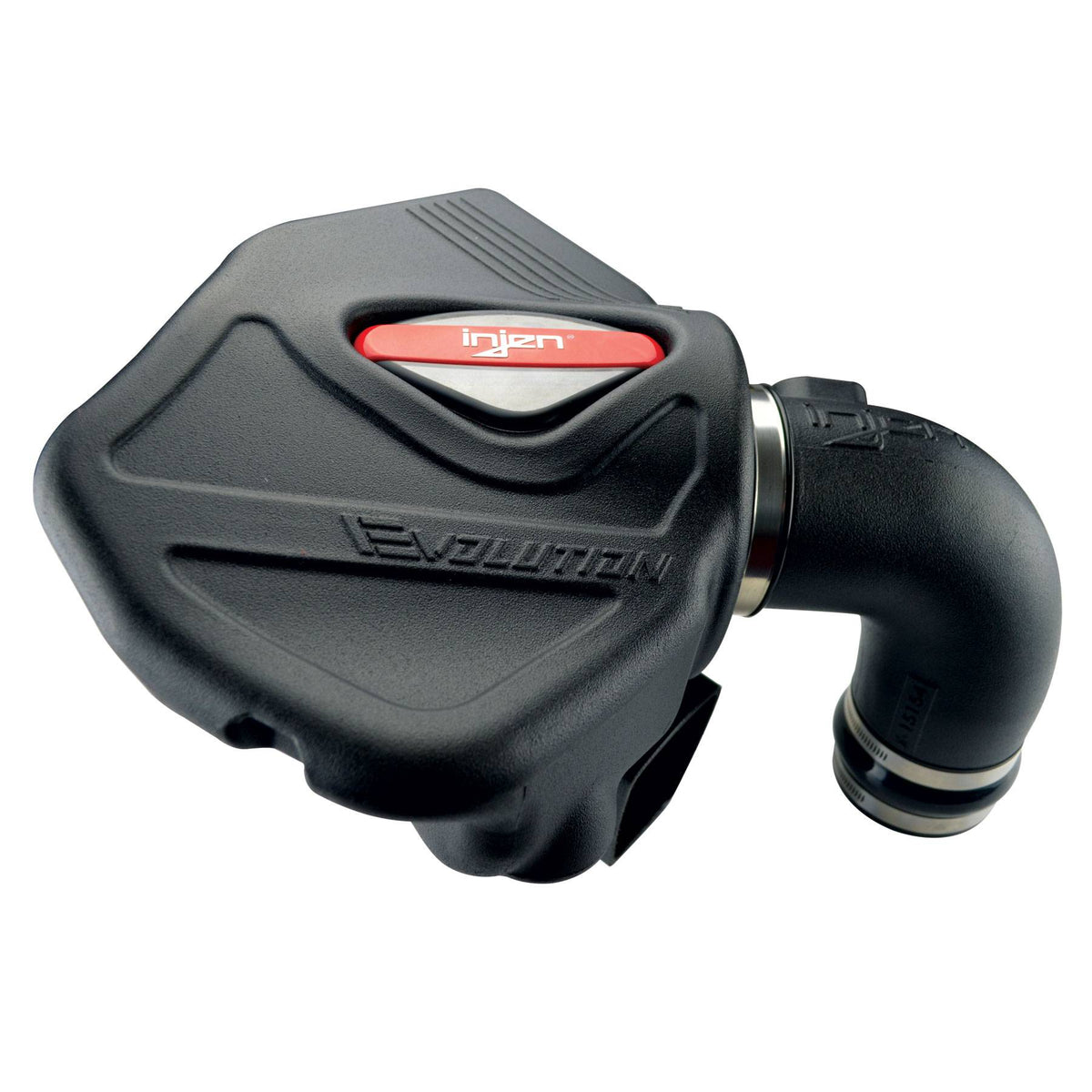

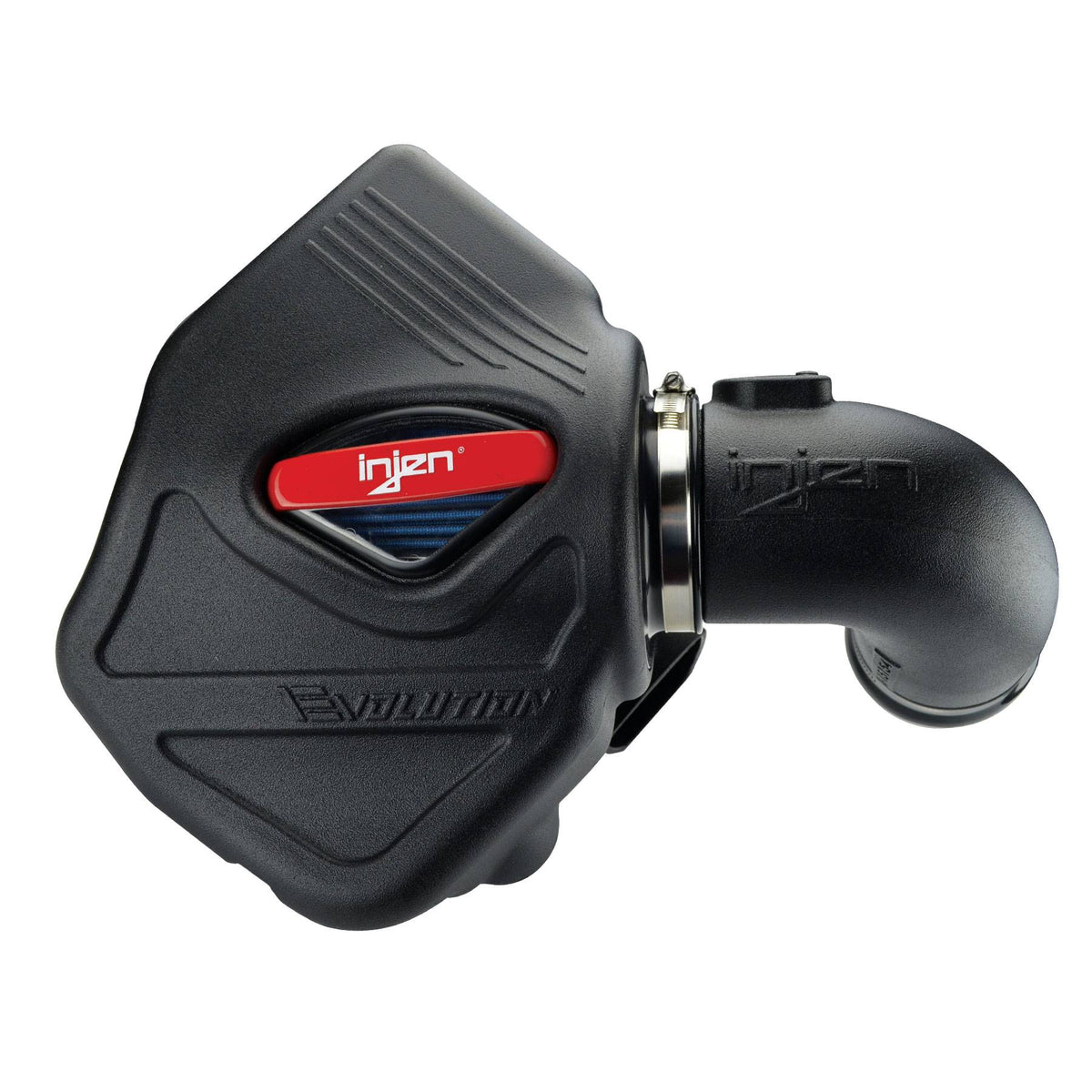

The EVO1105 Evolution cold air intake takes the B58-powered BMW to the next level. Injen designed the kit with current engineering tools and techniques, from a one-piece sealed roto-molded housing that uses the patent-pending Twist-Lock system to secure a large SuperNano-Web dry air filter, through to premium hardware throughout.

The roto-molded intake tube is custom designed and dyno-tuned to produce power while retaining an OE-quality fit, and the housing carries Injen's Clear-View badge so filter condition can be checked at a glance. Stainless steel band clamps with an inner protective liner and a reinforced automotive-grade silicone coupler complete a secure fit, and the reduced part count makes this one of the quicker intake installations available.

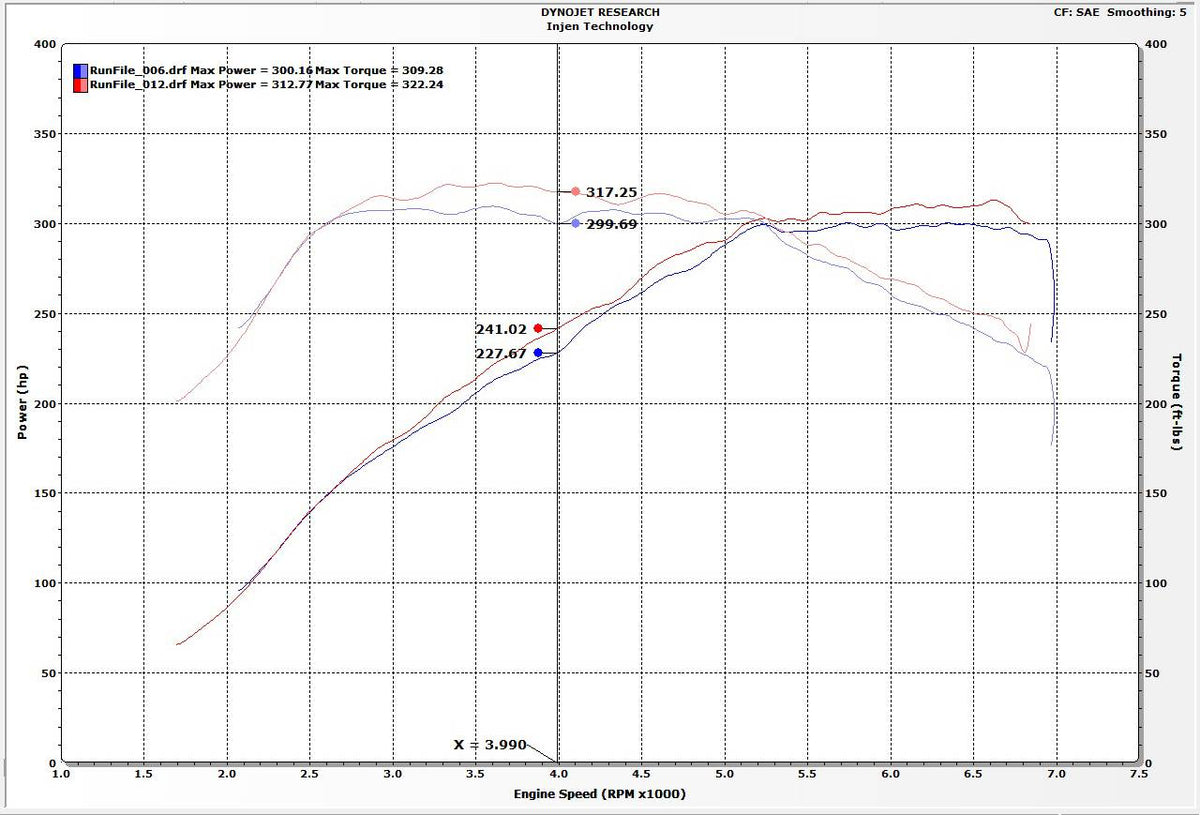

Injen's dyno testing shows the EVO1105 producing up to 13 additional horsepower and 18 lb-ft of torque, and the kit is designed to run on the stock calibration. It carries the Injen Technology Limited Lifetime Warranty.

SPECS

• Evolution series sealed cold air intake
• Dyno-proven gains of up to 13 hp and 18 lb-ft of torque
• Designed to work with the stock calibration; no tune required
• Retains the OEM mass air flow sensor

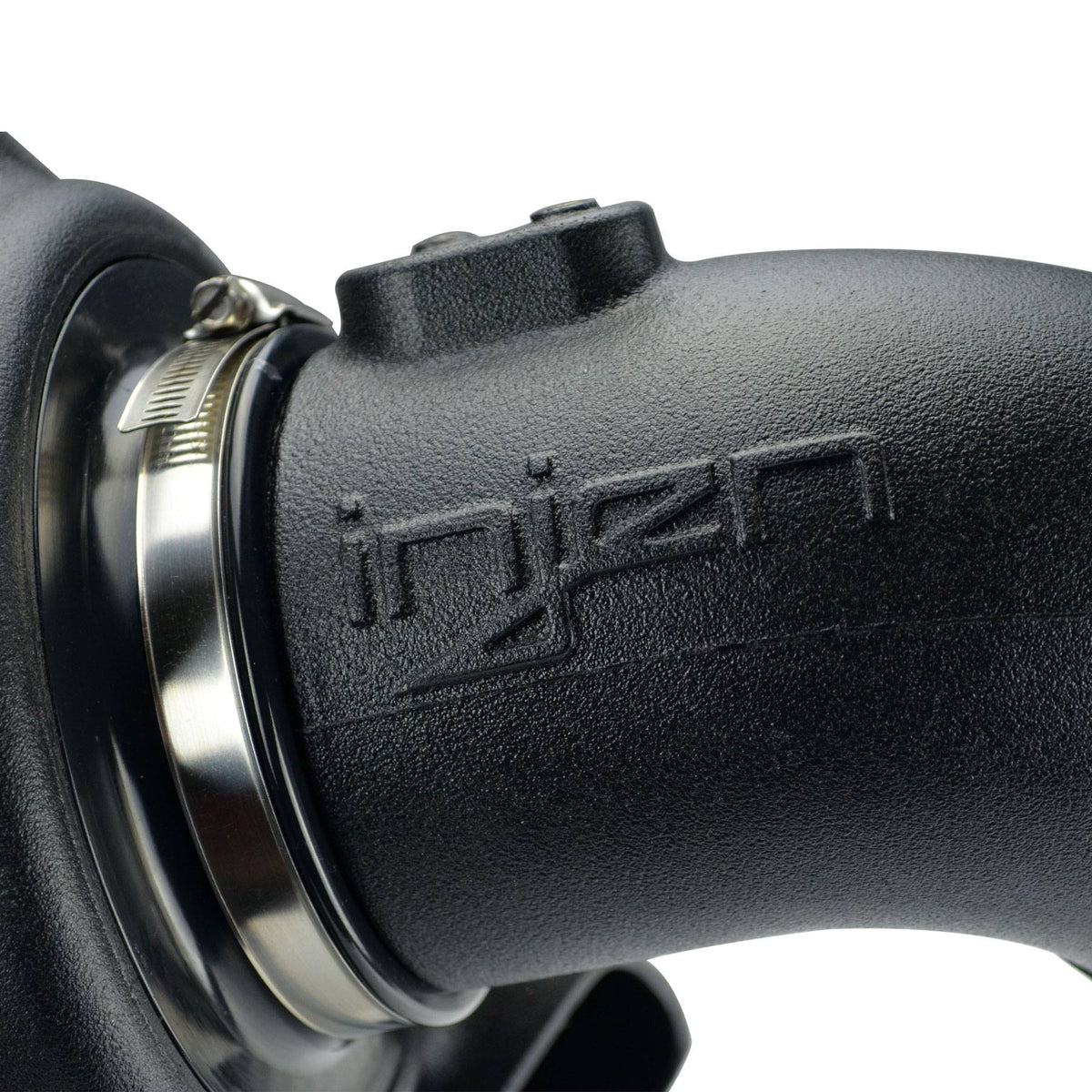

• Durable roto-molded polyethylene intake tube and one-piece sealed housing
• Patent-pending Twist-Lock filter attachment system
• Fully serviceable Injen SuperNano-Web dry air filter
• Replacement air filter part number X-1112-BB
• Reinforced automotive-grade silicone couplers

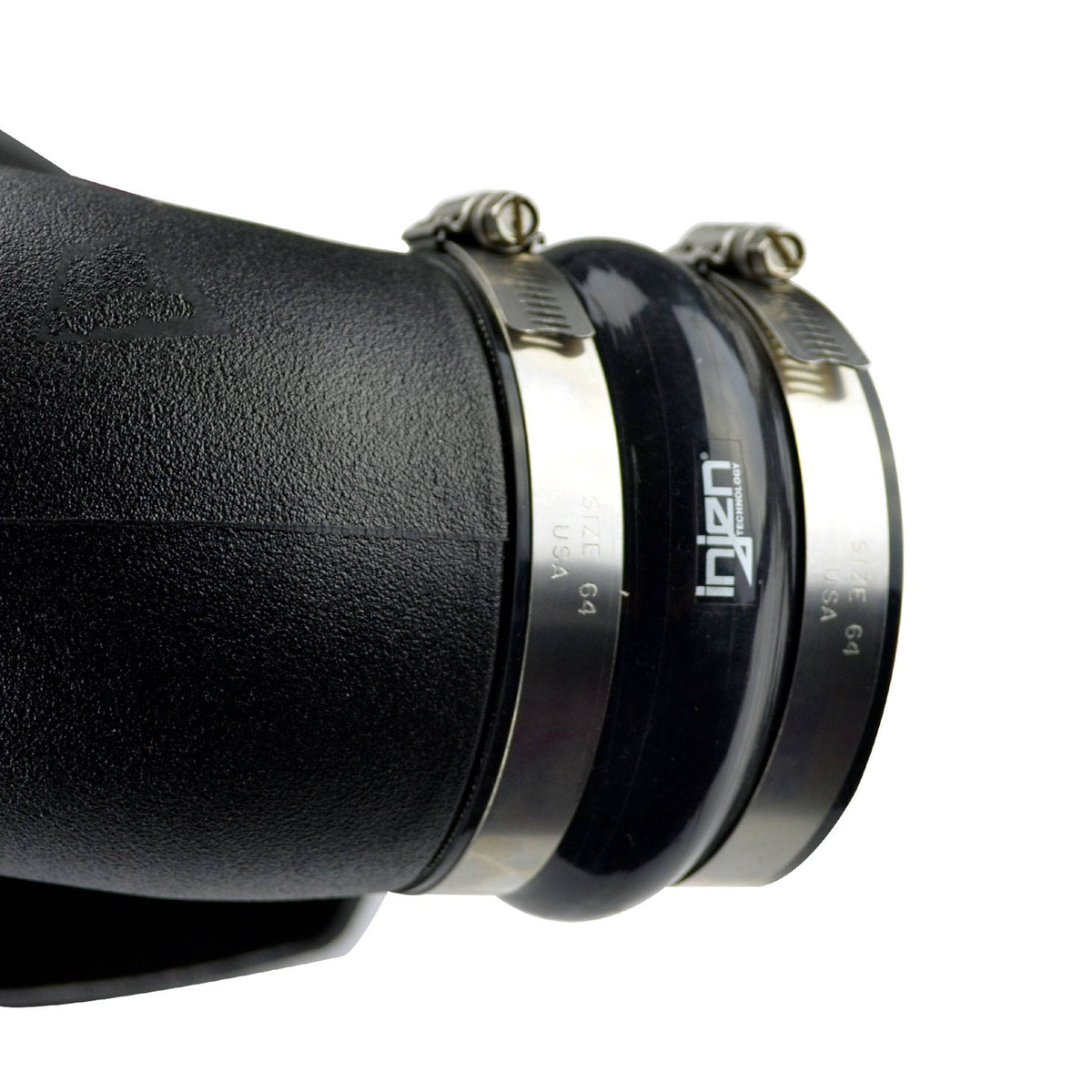

• Stainless steel band clamps with inner protective liner

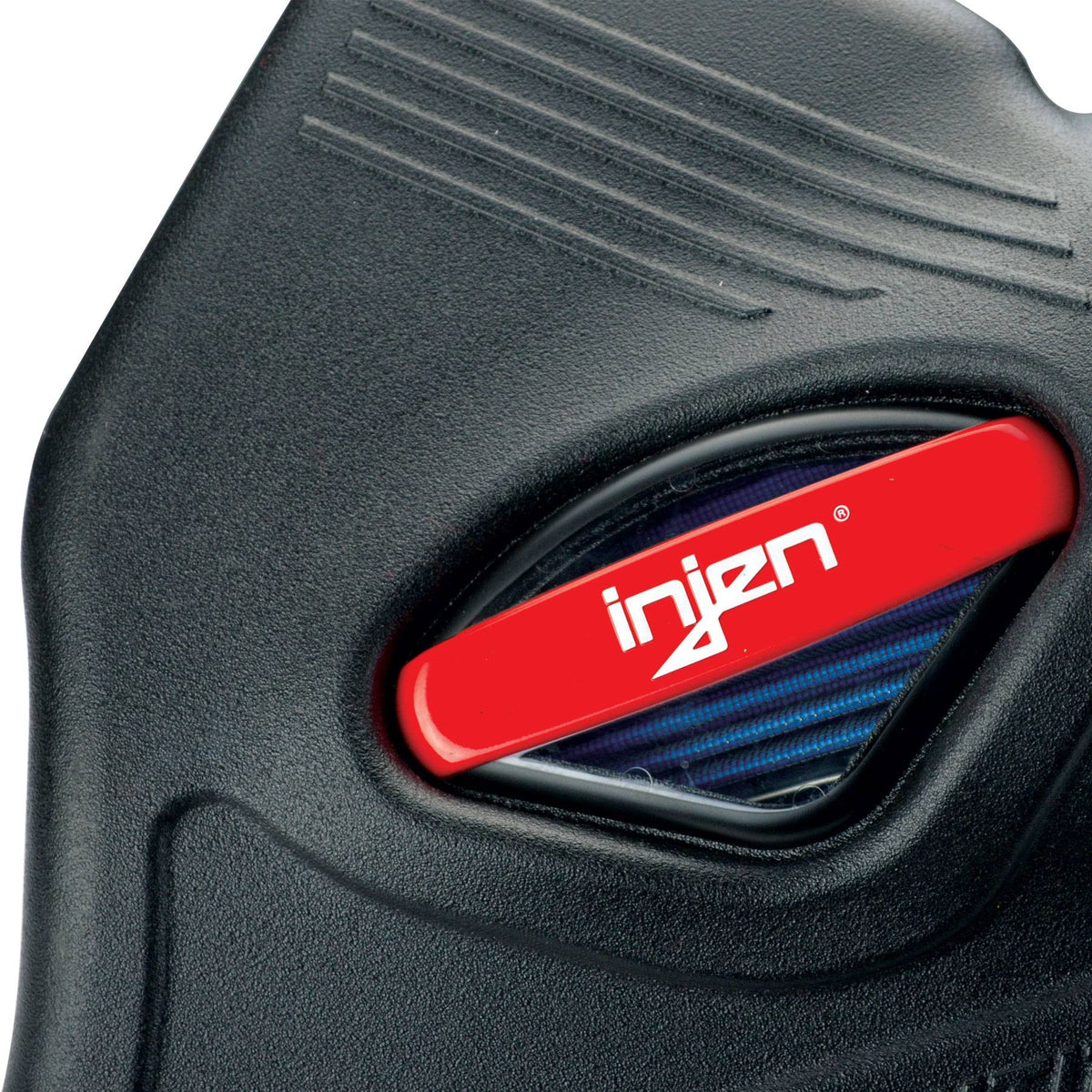

• Clear-View inspection badge for checking filter condition
• Aggressive intake growl under acceleration
• Not CARB exempt
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x airbox housing (#15152)
• 1 x roto-molded intake tube (#15154)
• 1 x SuperNano-Web dry air filter, blue media (#1112BB)
• 1 x 3.75" hump hose (#3229)
• 2 x #64 clamps (#4006)
• 2 x M4 screws (#6047)
• 1 x small Injen window (#15139)
• 2 x push clips (#6109)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part, and no tune is required.
• Installer-supplied: metric socket and wrench set, flat-blade screwdriver, and a torque wrench.
• Optional service items: replacement SuperNano-Web dry filter X-1112-BB and an Injen dry filter cleaning kit.

Installation

• Injen EVO1105 installation instructions (PDF)

Notes

• Note: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles. Injen also restricts shipment of this part to CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT and WA.
• The product title lists 2016–2019. Injen's official application list runs later on several models — through 2020 on the 440i and through 2021 on the M240i. Confirm fitment with Speed Logic for a late-model car.

PART NUMBER

• EVO1105

VEHICLE APPLICATIONS
