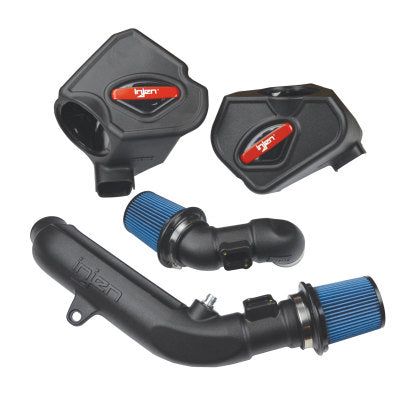

Injen Evolution Intake – BMW M3 / M4 (F80 / F82)

OVERVIEW

The EVO1102 is Injen's Evolution sealed cold air intake system for the S55-powered BMW M3 and M4. It was designed with current engineering tools and techniques and uses a pair of one-piece sealed roto-molded housings, each with the patent-pending Injen Twist-Lock system holding a SuperNano-Web dry air filter securely in place. A sight window in each housing makes filter inspection easy and gives the engine bay a distinctive look.

The two roto-molded intake tubes are custom designed and dyno-tuned for power while retaining a clean, quality fit. Stainless steel band clamps with an inner protective liner and reinforced automotive-grade silicone couplers provide a secure installation, and the Twist-Lock system reduces the hardware count so the kit goes on quickly. The system was created and designed entirely in 3D and fits to a standard equal to or above the OE system.

After design work and dyno testing, Injen rates this Evolution intake at 22 additional horsepower and 27 lb-ft of torque, running on the stock calibration. It carries the Injen Technology Limited Lifetime Warranty.

SPECS

• Evolution series dual sealed cold air intake
• Dyno-proven gains of up to 22 hp and 27 lb-ft of torque
• Designed to work with the stock calibration; no tune required
• Retains the OEM mass air flow sensors
• Durable roto-molded polyethylene tubes and one-piece sealed housings
• Patent-pending Twist-Lock filter attachment system
• Two fully serviceable Injen SuperNano-Web dry air filters
• Replacement air filter part number X-1097-BB
• Reinforced automotive-grade silicone couplers
• Stainless steel band clamps with inner protective liner
• ClearVue inspection badge for checking filter condition
• Aggressive intake growl under acceleration
• Shipping weight 30.0 lb; package 17" W x 13" H x 28" L
• Not CARB exempt
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x right side airbox (X-15113)
• 1 x right side intake tube (X-15114)
• 1 x left side airbox (X-15115)
• 1 x left side intake tube (X-15116)
• 2 x Twist-Lock dry air filters, no fitting (X-1097)
• 1 x 3.00" x 1.0" straight hose (X-3187)
• 2 x #48 clamps (X-4004)
• 1 x machined fitting (X-14066)
• 2 x small windows (X-15139)
• 4 x push nuts (X-6109)
• 4 x M4 Allen screws (X-6072)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part, and no tune is required.
• Installer-supplied: metric socket and wrench set, flat-blade screwdriver, Allen key set, and a torque wrench.
• Optional service items: replacement SuperNano-Web dry filters X-1097-BB and an Injen dry filter cleaning kit.

Installation

• Injen EVO1102 installation instructions (PDF)

Notes

• Note: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles. Injen also restricts shipment of this part to CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT and WA.
• The previous listing showed the M2 Competition as 2019–2020. Injen's official application list runs through 2021, which is used above.

PART NUMBER

• EVO1102
