Injen SES Intercooler Cold Side Pipe SES1128ICP – BMW 335i (F30)

OVERVIEW

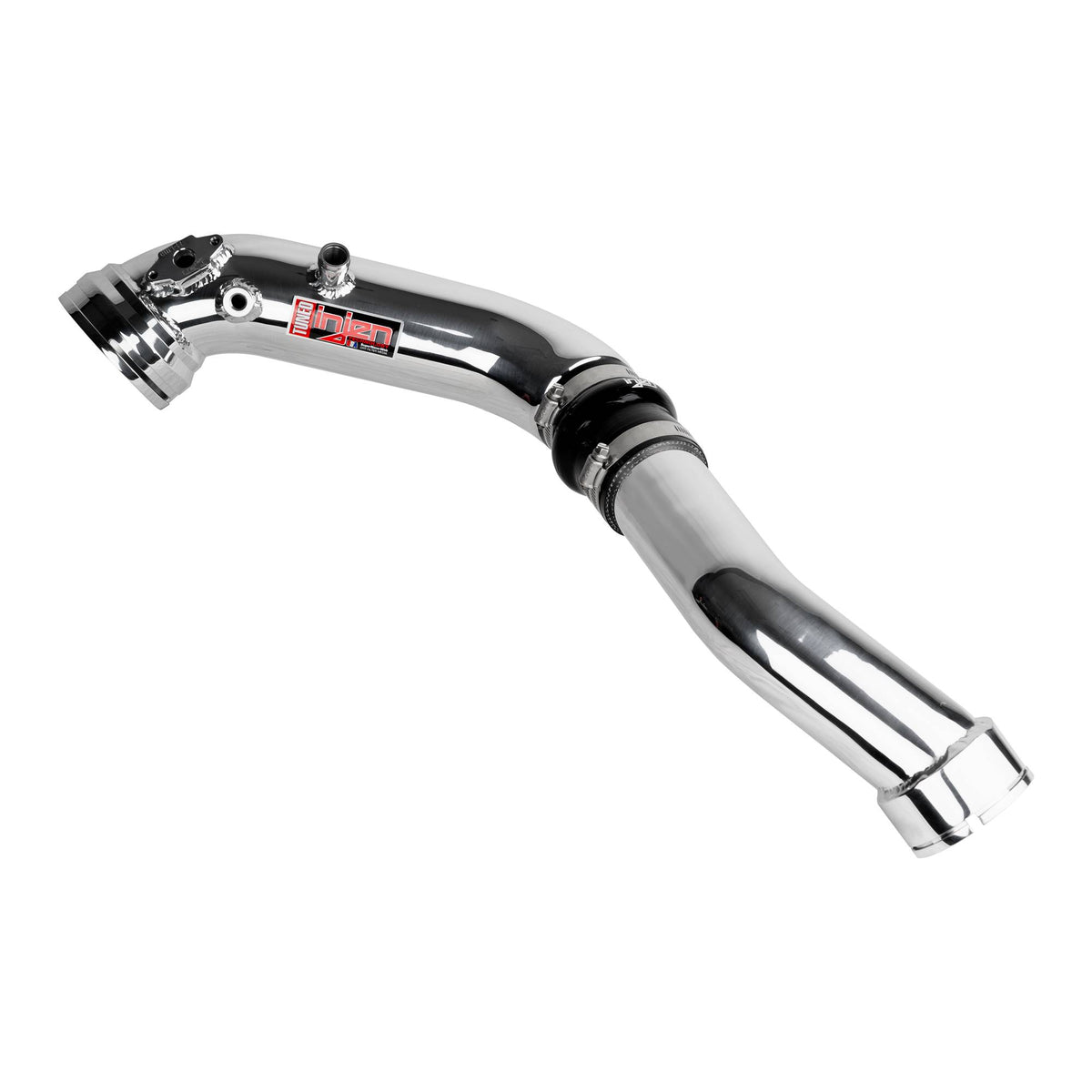

The Injen SES1128ICP cold side intercooler pipe is the next logical step in the search for power on an N55-equipped BMW. This easy-to-install charge pipe lets the turbocharged engine breathe more freely, and it pairs with Injen's cold air intake systems for greater combined gains.

Injen's engineers spent considerable time designing, testing and refining the system. At its core is a mandrel-bent, oversized and stepped 3.00" to 2.50" T6-6061 aluminum tube that gives air a smooth, uninterrupted path and replaces the brittle, failure-prone factory unit. Precision CNC-machined adapter flanges mimic the OE-style quick-connect fittings for a clean and simple install, and TIG-welded sensor flanges are included.

Injen offers this charge pipe in polished, wrinkle black and wrinkle red finishes, and it carries the Injen Technology Limited Lifetime Warranty.

SPECS

• Cold side only intercooler charge pipe system
• 3.00" stepped to 2.50" lightweight T6-6061 aluminum piping
• Mandrel-bent tubing for increased flow
• Oversized piping reduces restriction and increases airflow to the engine
• Precision CNC-machined quick-connect flanges for OE-style attachment

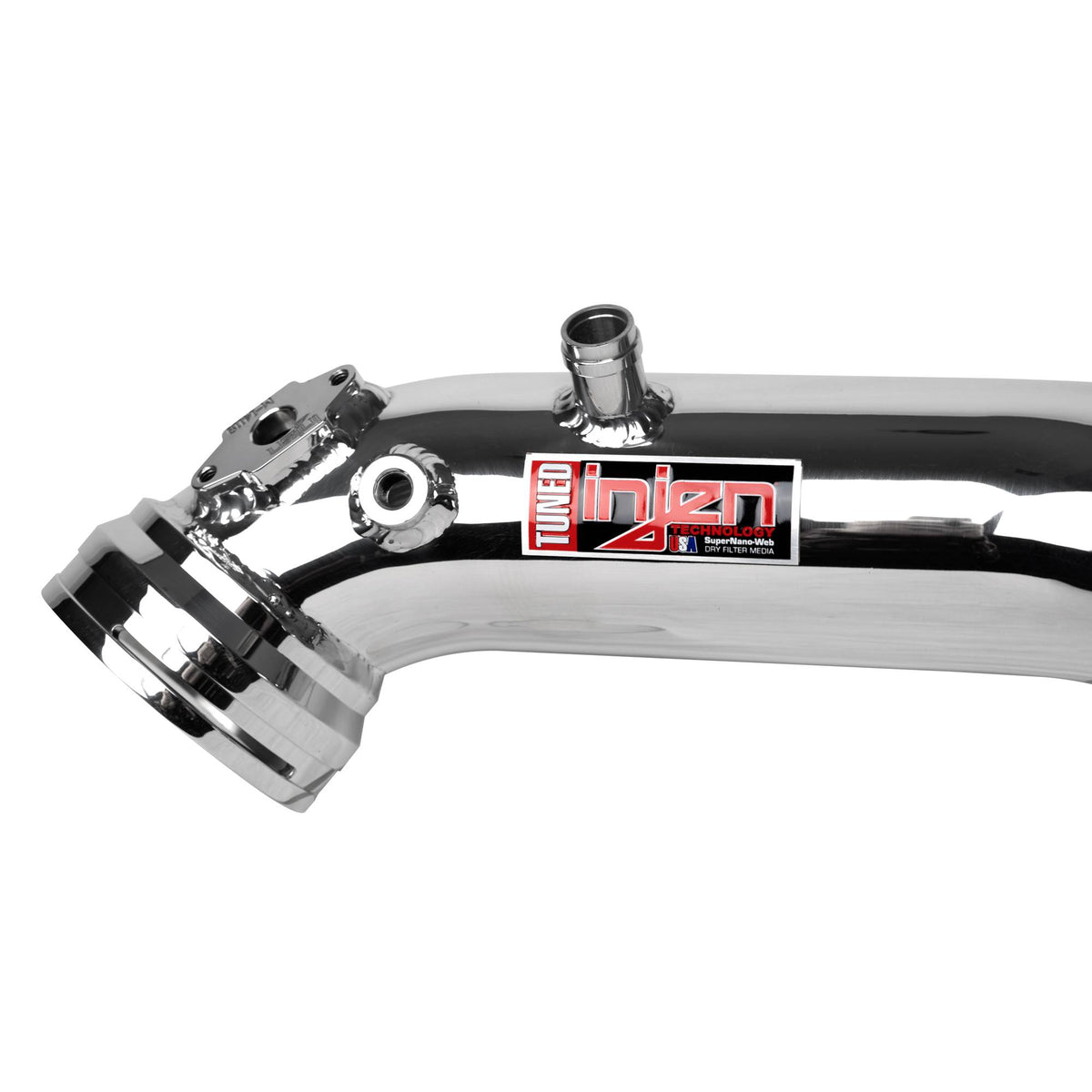

• Precision CNC-machined, TIG-welded sensor flanges included
• Includes one 1/8" female NPT bung

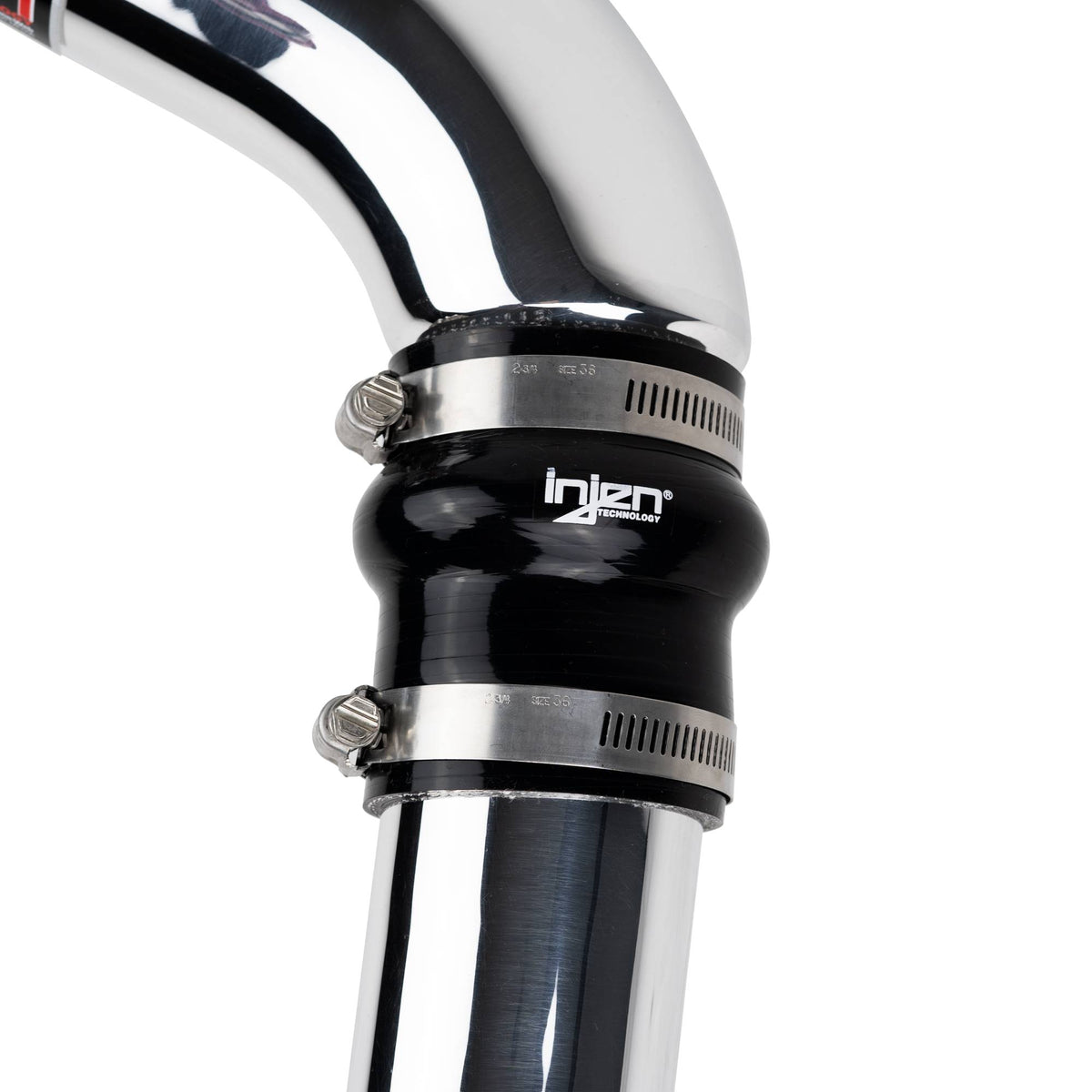

• Stainless steel band clamp with inner protective liner
• Automotive-grade silicone couplers
• Seamlessly adapts to the OE intercooler
• Uses all factory mounting locations
• Injen logo plate
• Increases throttle response and reduces turbo lag
• Available in polished, wrinkle black and wrinkle red finishes
• Shipping weight 8.0 lb; package 13" W x 9" H x 26" L
• Not CARB exempt
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

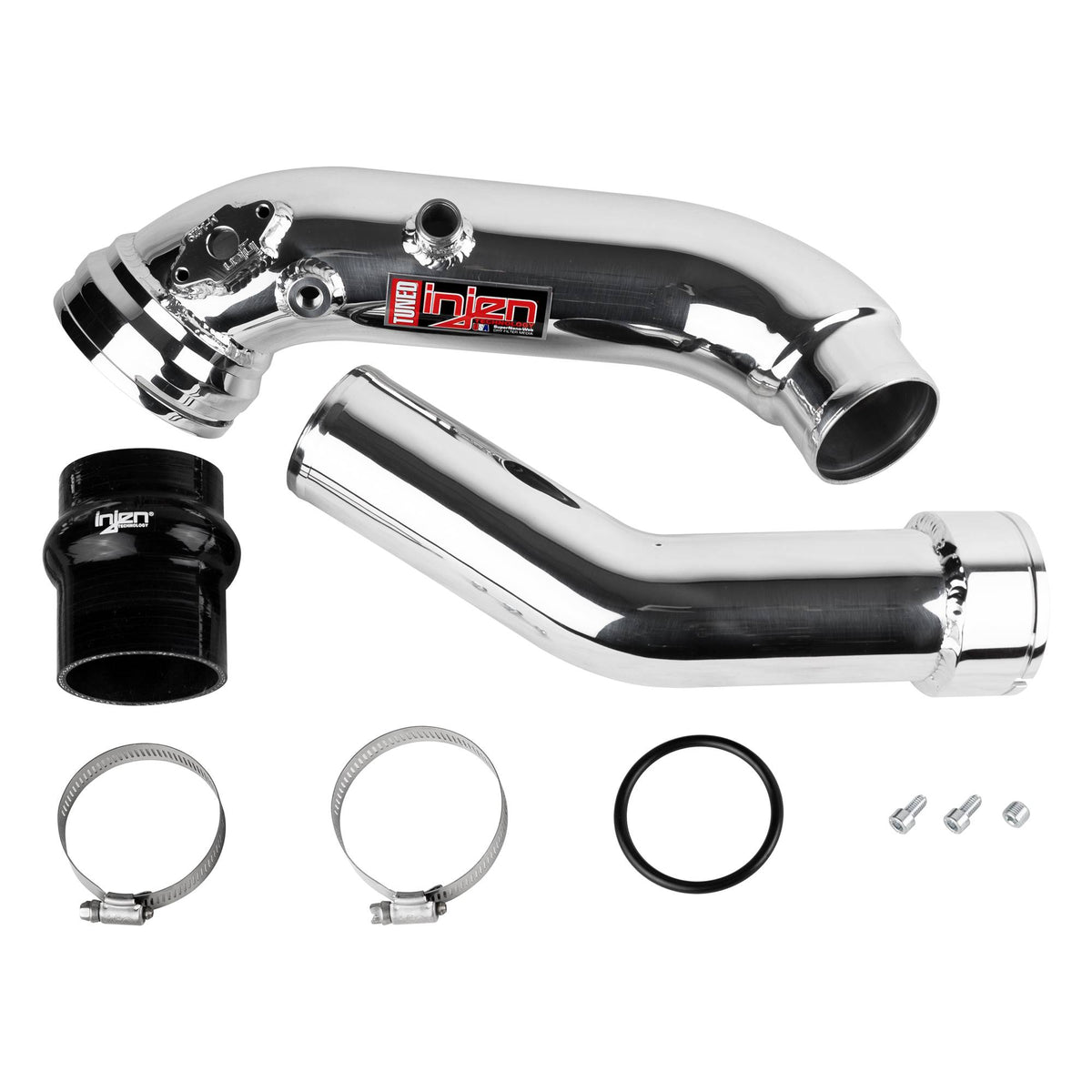

PARTS INCLUDED

• 1 x two-piece charge pipe (W-SES1128ICP)
• 1 x 2-1/2" hump hose (#3221)
• 2 x #36 clamps (#4009)
• 2 x M6 socket cap screws (#6056)
• 1 x 1/8" NPT plug (#8054)
• 1 x O-ring (#6114)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware for this part.
• Installer-supplied: metric socket and wrench set, Allen key set, flat-blade screwdriver, and a torque wrench.

Installation

• Injen SES1128ICP installation instructions (PDF)

Notes

• Note: This product is not currently CARB exempt. Injen restricts shipment of this part to CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT and WA.
• The product title and the previous listing indicated xDrive fitment. Injen's official catalog and the SES1128ICP installation instructions both list rear-wheel-drive applications only and state that xDrive models are excluded, so xDrive rows are not shown above. Confirm fitment with Speed Logic before ordering for an xDrive car.

PART NUMBER

• SES1128ICP — Polished
• SES1128ICPWB — Wrinkle Black
• SES1128ICPWR — Wrinkle Red
