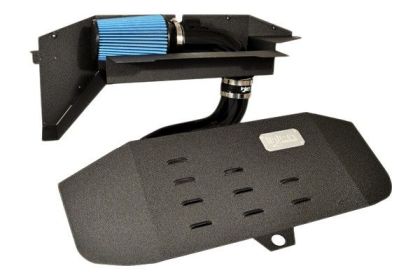

Injen Short Ram Intake (Wrinkle Black) – BMW 328i / 428i (N20 / N26, F30 / F32)

OVERVIEW

The SP series is Injen Technology's flagship traditional aluminum intake line. Injen produced the world's first tuned air intake system and holds four patents covering the intake tuning process, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669). The SP1122 uses Injen's patented Air Fusion Technology to feed the N20 and N26 2.0L turbo four.

In place of the restrictive factory airbox, the kit fits a two-piece 6061-T6 aluminum intake tube and a purpose-built enclosed air box with a removable cover, giving the turbo a smooth, uninterrupted path while shielding the filter from underhood heat. Injen developed the system on the dyno for gains of up to 10 horsepower and 22 lb-ft of torque, and confirmed that a safe air/fuel ratio is held across the power band, so no additional tuning is required.

Air is drawn through a fully serviceable Injen SuperNano-Web dry filter, which adds filtration surface area for greater airflow without an oiled media. The textured wrinkle black finish gives a stealth look under the hood, and the system delivers an aggressive, throaty tone under full throttle. Made in Pomona, California and backed by the Injen Technology Limited Lifetime Warranty.

SPECS

• Series: Injen SP short ram air intake system
• Dyno-proven gains of up to 10 hp and 22 lb-ft of torque
• Intake tube: 6061-T6 aluminum, two-piece, wrinkle black finish
• Also offered by Injen in polished finish
• Filter: Injen SuperNano-Web dry air filter, 3.25" inlet, fully serviceable
• Replacement air filter part number X-1059-BB
• Includes an application-specific enclosed air box with removable cover and Injen badge
• Features Injen's patented Air Fusion Technology
• Maintains factory air/fuel ratios; no additional tuning required
• Not CARB exempt — not legal for sale or use on pollution-controlled vehicles in California
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x Two-piece intake tube assembly
• 1 x SuperNano-Web nanofiber dry filter, 3.25"
• 1 x Lower air box (#11099)
• 1 x Air box cover (#11098) with Injen badge (#11097)
• 1 x 3.25" straight hose (#3045)
• 2 x #48 hose clamps (#4004)
• 1 x M6 Vibra-mount (#6020)
• 2 x M6 nuts (#6002)
• 2 x Fender washers (#6010)
• 2 x M4 x 16 button head screws (#6072)
• 4 x M6 x 10 hex cap screws
• 1 x M6 stand-off stud (#15023)
• 1 x Rubber trim, 13.5" length
• 1 x Vinyl trim (#6023)
• 1 x Sensor grommet (#8002)
• 1 x 5 mm vinyl cap (#8004)
• 2 x 0.242" click-lock rivets (#8043)

TECH RESOURCES

Additional Parts Required

• None. Injen specifies no additional hardware, tuning or fluids for this intake — all required mounting hardware is supplied in the kit.
• Installer-supplied tools: metric socket and wrench set, flat and Phillips screwdrivers, a trim panel tool and a torque wrench.
• Optional service items: Injen replacement dry air filter X-1059-BB and an Injen dry-filter cleaning kit.

Installation

• Injen SP1122 Installation Instructions (PDF)

Notes

• Note: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

PART NUMBER

• SP1122WB — wrinkle black finish (this listing)
• SP1122P — polished finish
