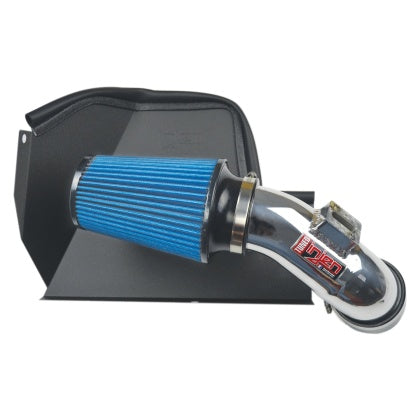

Injen Cold Air Intake SP1129 – BMW B58 (F2x / F3x) – Polished / Wrinkle Black

OVERVIEW

The SP series is Injen Technology's flagship traditional aluminum intake line. Injen produced the world's first tuned air intake system and holds four patents covering the intake tuning process, including MegaRam (MR) Technology (patents 7,359,795 and 7,669,571) and Air Fusion (patent 7,721,669). The SP1129 is built with Injen's patented MR Technology for BMW's B58 3.0L turbo six.

The kit replaces the restrictive factory airbox with a 6061-T6 aluminum intake tube that gives the turbo a smooth, uninterrupted path to the compressor inlet, feeding it through a large 3.75" coupler. A heat shield built specifically for this chassis keeps the filter separated from radiant underhood heat. Injen developed the system on the dyno for gains of up to 14 horsepower and 13 lb-ft of torque while holding a safe air/fuel ratio across the power band, so no additional tuning is required.

Air is drawn through a fully serviceable Injen SuperNano-Web dry filter, which adds filtration surface area for greater airflow without an oiled media. The system delivers an aggressive, throaty tone under full throttle. Made in Pomona, California and backed by the Injen Technology Limited Lifetime Warranty.

SPECS

• Series: Injen SP short ram air intake system
• Dyno-proven gains of up to 14 hp and 13 lb-ft of torque
• Intake tube: 6061-T6 aluminum (Y-SP1129)
• Finishes: polished and wrinkle black
• Filter: Injen SuperNano-Web dry air filter, blue media, fully serviceable
• Replacement air filter part number X-1059-BB
• Includes an application-specific custom heat shield (#11150)
• Features Injen's patented MegaRam (MR) Technology
• Maintains factory air/fuel ratios; no additional tuning required
• Not CARB exempt — not legal for sale or use on pollution-controlled vehicles in California
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

PARTS INCLUDED

• 1 x Intake tube (Y-SP1129)
• 1 x Heat shield (#11150)
• 1 x Dry filter, blue media (#1059BB)
• 1 x 3.75" straight hose (#3036)
• 2 x #64 clamps (#4006)
• 2 x Small grommets (#8031)
• 1 x 3/8" black plastic nut (#6124)
• 1 x Rubber trim, 23" length (#6058)
• 1 x M6 locknut (#6108)
• 2 x M4 screws (#6047)

TECH RESOURCES

Additional Parts Required

• None. All mounting hardware is included and no tune is required.
• Optional service part: Injen replacement dry air filter X-1059-BB.

Installation

• Injen SP1129 Installation Instructions (PDF)

Notes

• B58 engine only. This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

PART NUMBER

• SP1129P — polished finish
• SP1129WB — wrinkle black finish

VEHICLE APPLICATIONS
