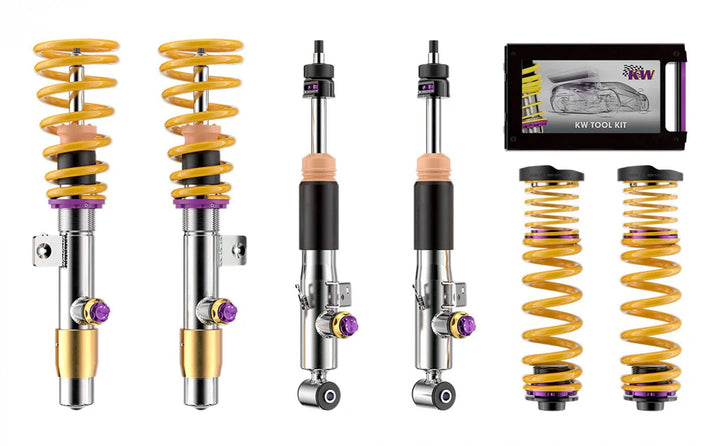

KW V4 Coilover Kit Bundle – BMW M2 / M3 / M4 (G8x, RWD)

OVERVIEW

The KW Variant 4 was developed exclusively for supercars, sports cars and performance-oriented sedans. Depending on the vehicle design the coilover struts are made from stainless steel or aluminum, and the triple-adjustable high-performance dampers bring leading race technology to a road car: rebound, low-speed compression and high-speed compression are each adjusted independently of one another.

That third axis of adjustment is what separates the Variant 4 from a conventional two-way coilover. Splitting compression into low-speed and high-speed ranges lets you control body movement and steering response without also dictating how the car deals with curbs, expansion joints and sharp-edged bumps — so the platform can be tightened up for driving dynamics while the car stays usable every day.

SPECS

• Damping: 3-way adjustable — independent rebound, low-speed compression and high-speed compression
• Coilover struts made from stainless steel or aluminum depending on the vehicle design
• High-performance damper technology derived from KW's racing program
• Developed for supercars, sports cars and performance-oriented sedans
• Supplied as a KW bundle kit

PARTS INCLUDED

• Complete KW Variant 4 coilover kit bundle as supplied by KW.
• KW installation documentation and parts certificate.
• See the KW installation instructions linked below for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment — a full four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
• Professional installation — KW specifies fitment by a qualified suspension shop; installation at a KW specialist dealer is also what qualifies the kit for KW's extended warranty coverage.
• Tire-to-strut and fender clearance check — verify clearance at full lock and full compression, particularly with aftermarket wheel and tire packages.
• Ride-height sensor handling — cars fitted with headlight-leveling or adaptive-damper ride-height sensors require the sensor links to be relocated or adapted to the new ride height per KW's instructions.
• Driver-assistance recalibration — camera- and radar-based driver-assistance systems must be recalibrated after the vehicle is lowered.
• Installer-supplied tools: spring compressor, torque wrench, and the standard BMW suspension service tools.

Installation

• KW installation instructions for order number 3A7200EB (BMW M2 G87, M3 G80, M4 G82): Download PDF

Notes

• KW releases this kit for rear-wheel-drive (2WD) cars only; xDrive models take a different KW order number.

PART NUMBER

• 3A7200EB
