OVERVIEW

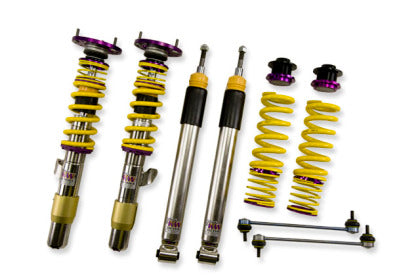

KW Clubsport 2-Way — now marketed by KW as V3 Clubsport — is a coilover system for the race track and the road. These setups were developed on the Nürburgring Nordschleife using track day tires, and with the optional adjustable top mounts the suspension geometry can be matched to the tire and the intended use.
Those adjustable top mounts, combined with independently adjustable rebound and compression damping, allow the car to be set up for vehicle load, tire characteristics and changing track conditions. The rebound adjuster gives 16 precise clicks to dial in wheel and tire loading or work around chassis characteristics, while low-speed compression damping is set independently over 12 precise clicks, most often used to tune the wheel and tire setup.
Between them these adjustments let the driver account for vehicle weight, wheel and tire combinations, road surface and environmental conditions, which is what makes the Clubsport equally at home on the street and on track — excellent handling, agility and lap times without giving up road manners.
SPECS
- Front lowering range: 0.4–1.5 in (10–40 mm)
- Rear lowering range: 0.2–1.4 in (5–35 mm)
- Independently adjustable rebound and compression damping
- Adjustable rebound damping with 16 precise clicks
- Adjustable compression damping with 12 precise clicks (low-speed)
- Stainless steel "inox-line" damper technology
- Continuous, stepless lowering
- TÜV-tested adjustment range
- High-quality components selected for long-term durability
- Optional spherical bearing aluminum top mounts
PARTS INCLUDED
- Complete KW Clubsport 2-Way coilover kit as supplied by KW; see the installation instructions for the full bill of materials.
- Spherical bearing aluminum top mounts are optional and are not part of the standard kit.
TECH RESOURCES
Additional Parts Required
- KW EDC cancellation module — order number 35220857 is the application for EDC-equipped cars and is supplied without a cancellation kit. Contact Speed Logic to source the correct KW module for your car.
- Four-wheel alignment — mandatory after installation and after any change in ride height or corner weight.
- Professional installation — KW specifies fitment by a qualified suspension shop.
- Factory ride-height sensor links must be removed or transferred exactly as described in the KW instructions.
- Confirm tire-to-strut and tire-to-fender clearance with your wheel and tire package before setting final ride height.
- Optional: KW spherical bearing aluminum top mounts, if you want camber and caster adjustment at the strut top.
Installation
- KW Clubsport 35220857 installation instructions (PDF) — official KW installation document for BMW M3 with EDC.
- KW rebound and compression damper setup manual (KW document 685 80 000) — damper adjustment procedure.
Notes
- Designed for race track and road use. This order number is the application for cars equipped with EDC; KW's installation document also lists the E90 sedan and E92 coupe M3 under the same order number. Confirm fitment with Speed Logic before ordering.
PART NUMBER
- 35220857
- KW has rebranded the Clubsport 2-Way line as V3 Clubsport; the order number is unchanged.
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW M3 Convertible | E93 | S65 4.0L V8 | 2008–2012 |
