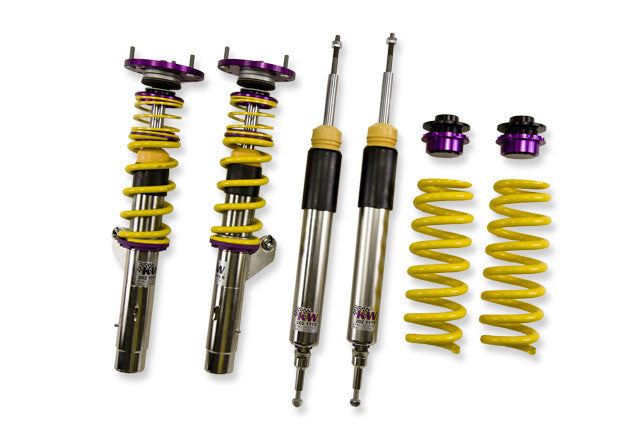

KW Clubsport Coilovers – BMW 3 Series Sedan / Coupe (E90/E92)

OVERVIEW

The KW Clubsport is a coilover system built for the race track and the road. KW developed these setups on the Nordschleife using track-day tires, and the kit is now sold by KW under the V3 Clubsport name. Ride height is continuously adjustable and the damping is tuned for hard track use without giving up street manners.

Rebound and compression damping are adjusted independently of one another. The rebound adjuster offers 16 precise clicks so you can influence wheel and tire loading, while the low-speed compression adjuster offers 12 precise clicks. Together they let you dial the car in for vehicle load, wheel and tire combination, road surface and track conditions.

Optional spherical-bearing aluminum top mounts allow suspension geometry to be adjusted to suit the tires and the intended use. The dampers use KW stainless steel inox-line construction for long-term corrosion resistance and durability.

SPECS

• Independently adjustable rebound and compression damping
• Rebound damping adjustment: 16 precise clicks
• Low-speed compression damping adjustment: 12 precise clicks
• Stainless steel inox-line damper construction
• Continuous (stepless) ride-height adjustment
• TÜV-tested adjustment range
• Optional spherical-bearing aluminum top mounts (sold separately)

PARTS INCLUDED

• Complete KW Clubsport coilover kit as supplied by KW; see the installation instructions below for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• A four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
• Professional installation is required; spring compressors and correct torque procedures are needed to service the struts safely.
• Check tire and wheel clearance to the strut body and to the fender before driving, especially with aftermarket wheel and tire packages.
• Optional: corner-balancing after the ride height is set.

Installation

• KW Clubsport 35220832 installation instructions (PDF)

Notes

• Rear-wheel-drive (2WD) models only — xDrive all-wheel-drive cars are not covered by this order number. KW's installation instructions for 35220832 list the E90 sedan (type 390L) and E92 coupe (type 329C). Verify your exact model year and options with Speed Logic if you are unsure.

PART NUMBER

• 35220832
