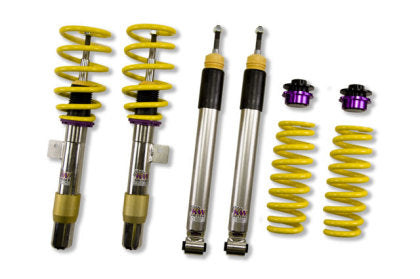

KW V3 Coilover Kit – BMW M3 (E90 / E92)

OVERVIEW

The KW Variant 3 coilover system is state-of-the-art damper technology for the skilled and experienced driver. Separate, independent compression and rebound damping adjustment allows a genuinely individual driving set-up rather than a single fixed calibration.

The system's three individually adjustable components let the driver tune low-speed compression damping on the car, while the high-speed compression behaviour that governs ride comfort has been preset by KW's engineers. Height adjustment is independent of both.

SPECS

• Front lowering range: 0.4–1.5 in (10–40 mm)
• Rear lowering range: 0.2–1.4 in (5–35 mm)
• Independently adjustable rebound and compression damping
• Infinitely adjustable rebound damping
• 14-level adjustable compression damping
• Inox-line stainless steel damper technology at no extra charge
• Individual, continuous height adjustment
• German TÜV-tested adjustment parameters
• High-quality components selected for long service life
• Comprehensive documentation supplied for ease of setup

PARTS INCLUDED

• Complete KW Variant 3 coilover kit as supplied by KW; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• KW EDC cancellation module — order number 35220057 is the application for EDC-equipped cars and is supplied without a cancellation kit. Contact Speed Logic to source the correct KW module for your car.
• Four-wheel alignment — mandatory after installation and after any change in ride height.
• Professional installation — KW specifies fitment by a qualified suspension shop.
• Factory ride-height sensor links must be removed or transferred exactly as described in the KW instructions.
• Confirm tire-to-strut and tire-to-fender clearance with your wheel and tire package before setting final ride height.

Installation

• KW installation instructions 686 20 057 for order number 35220057 (PDF) — official KW installation document for the BMW M3 sedan and coupe.
• KW Variant 3 damper setup manual (KW document 685 80 000) — rebound and compression adjustment procedure.

Notes

• This order number is the EDC application. Confirm whether your M3 was factory-equipped with EDC before ordering.

PART NUMBER

• 35220057
• Application for cars equipped with EDC. KW lists 35220067 for M3s without EDC.
