KW Coilover Kit Variant 3 (V3) 2-Way Adjustable (Non-EDC) – BMW M340i xDrive (G20)

OVERVIEW

The Variant 3 is KW's two-way adjustable coilover and the one most people actually want. Compression and rebound are on separate adjusters, so you can firm up body control without also killing rebound compliance, and ride height is continuously adjustable across the kit's range. It is the sensible step up from a spring-only kit and a large step up from the factory strut.

The stock damper is the limiting part on the G20 M340i xDrive. Factory valving is a single fixed compromise and the ride height is whatever the car left the line at. The V3 replaces the whole strut with a rebuildable, height-adjustable, damping-adjustable unit.

This listing covers the M340i xDrive (G20) specifically. Match the part number to your car's damper hardware, not just its badge: this is 352200DK, for cars without factory EDC. Cars with EDC need 352200DM, KW's Bundle with the ESC/EDC cancellation module, sold as a separate listing.

SPECS

• 2-way adjustable damping: independent compression and rebound
• Continuously adjustable ride height

PARTS INCLUDED

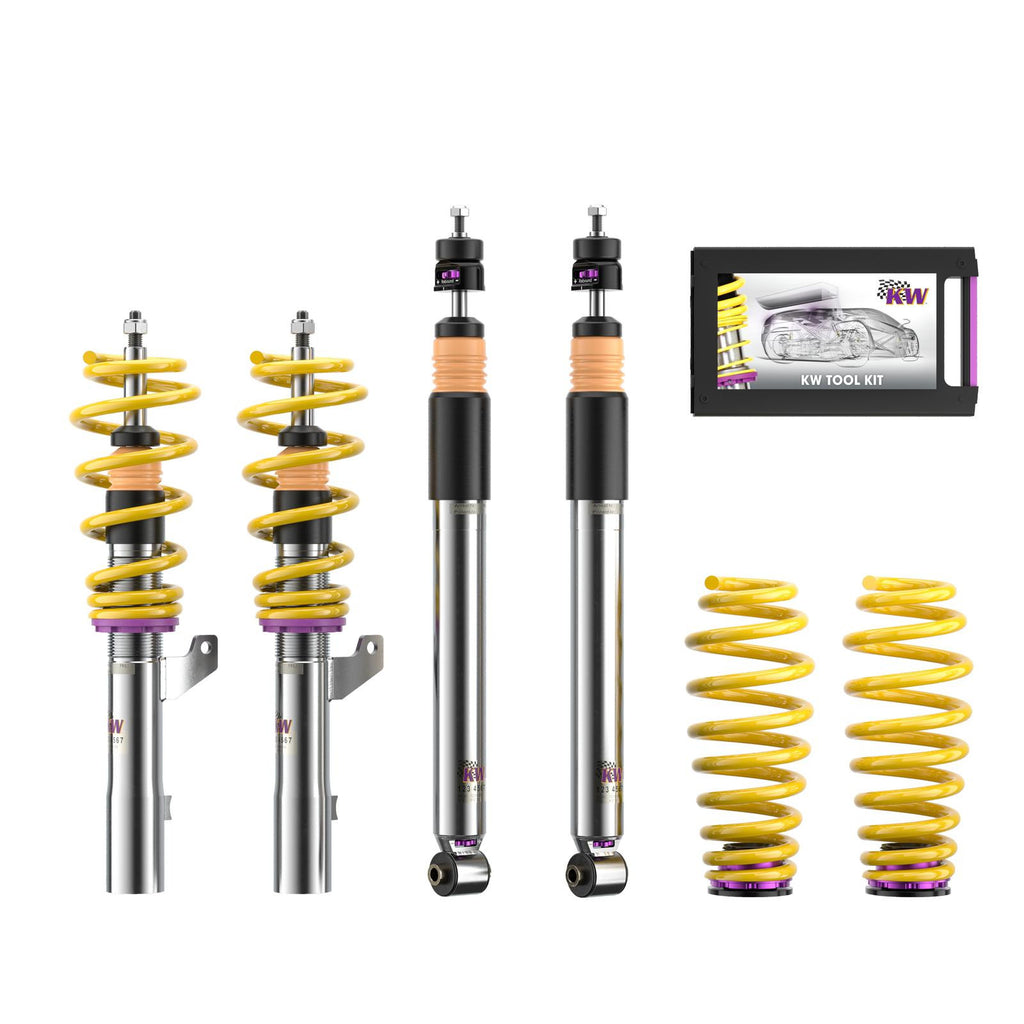

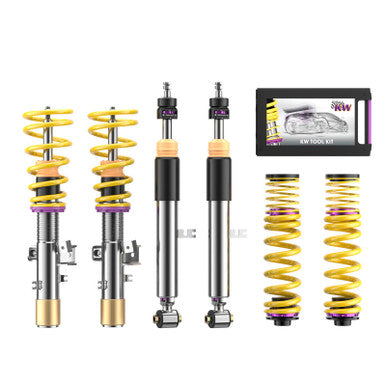

• Front and rear KW Variant 3 coilover units with matched springs
• Mounting hardware and KW's fitting instructions

TECH RESOURCES

Additional Parts Required

• A car with factory EDC fitted with the non-Bundle kit (352200DK) requires a matching KW ESC cancellation module — contact us to confirm compatibility, since KW's published module list for our store does not currently cover this platform by itself.
• A corner-balance and a full four-wheel alignment are required after installation, and matter even more on an AWD car. Budget for both before the car is driven.

Installation

• Installation instructions (352200DK): PDF.
• Setup manual (352200DK): PDF.
• In brief: full strut-out replacement front and rear, ride height set inside KW's published range, then corner-balance and alignment.
• Car has EDC (Electronic Damper Control)? See the KW V3 EDC kit.

Notes

• Price is for the item selected only; labor is not included.
• KW's own fitment chart for 352200DK/352200DM lists the M340i xDrive starting with the 2020 model year (not 2019). Corrected below. Checked against KW's fitment chart on 2026-09-03.

PART NUMBER

• 352200DK

VEHICLE APPLICATIONS
