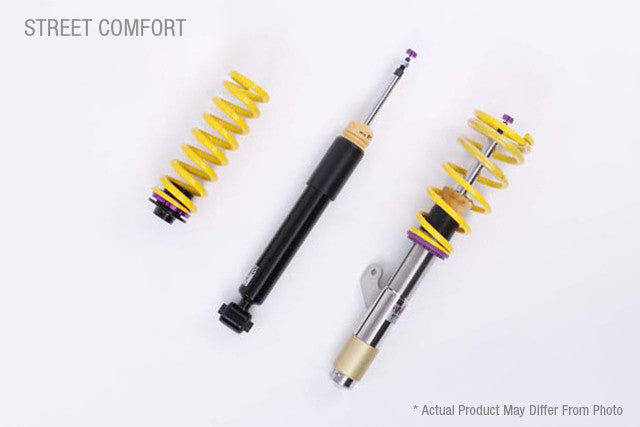

KW Street Comfort Coilovers – BMW 320i xDrive / 328i xDrive / 428i xDrive (F30 / F32)

OVERVIEW

KW Street Comfort is aimed at owners of four-cylinder xDrive F30 and F32 models who want a lowered, more planted car without giving up ride quality. A comfort-biased spring is matched to a rebound-adjustable damper, so body roll drops and road contact improves while long-distance comfort is preserved.

Because the kit is individually height adjustable, lowering can be set to suit the wheel and tire package while retaining usable spring travel. KW offers versions for cars with and without factory EDC.

SPECS

• Without EDC — front lowering: 0.6–1.8 in
• Without EDC — rear lowering: 0.8–2.0 in
• With EDC — front lowering: 0.6–1.8 in
• With EDC — rear lowering: 0.8–2.0 in
• Adjustable rebound damping
• Individually height adjustable: front 20–40 mm, rear 20–40 mm
• Trapezoid thread for easy height adjustment
• TÜV approved lowering range
• High-quality damper components for long service life

PARTS INCLUDED

• Complete Street Comfort coilover kit as supplied by KW; see the installation instructions for the full bill of materials.
• KW documentation for setup and adjustment.

TECH RESOURCES

Additional Parts Required

• A four-wheel alignment after installation is mandatory — camber, caster and toe all change with ride height.
• Professional installation is strongly recommended; a lift and spring compressors are required.
• Wheel spacers may be required with the original wheels and tires, depending on the ride height selected.
• Tire-to-strut and fender clearance must be checked at the chosen ride height before the car is driven.
• Order the correct version for your car: the EDC and non-EDC kits are different order numbers.

Installation

• KW supplies printed installation instructions in the box. KW does not publish a public download for order number 1802000R — contact Speed Logic if you need a copy of the instructions before installing.

Notes

• Years shown are the chassis production range; individual engines were offered for part of that span. Choose 1802000R if your car does not have factory EDC, or 1802000T if it does (includes EDC cancellation) — confirm exact fitment and the correct version with Speed Logic before ordering.

PART NUMBER

• 1802000R — KW Street Comfort (V2 Comfort) kit for vehicles without EDC
• 1802000T — KW Street Comfort (V2 Comfort) kit for vehicles with EDC
