OVERVIEW
KW Variant 3 brings race technology to the road with independently adjustable compression and rebound damping. The motorsport-derived valving allows a custom setup for street, canyon or track use rather than a single fixed compromise.
KW's patented dual-level valve system separates the two adjustments: rebound damping is set for ride comfort and body control, while compression damping governs the car's driving dynamics. Ride height is adjustable as well, so stance and handling can be tuned independently of one another.
SPECS
- Independently adjustable compression and rebound damping
- Rebound damping adjustment: 16 clicks
- Low-speed compression damping adjustment: 12 clicks
- KW patented dual-level valve technology
- Adjustable ride height
- Parts certificate supplied with the kit
PARTS INCLUDED

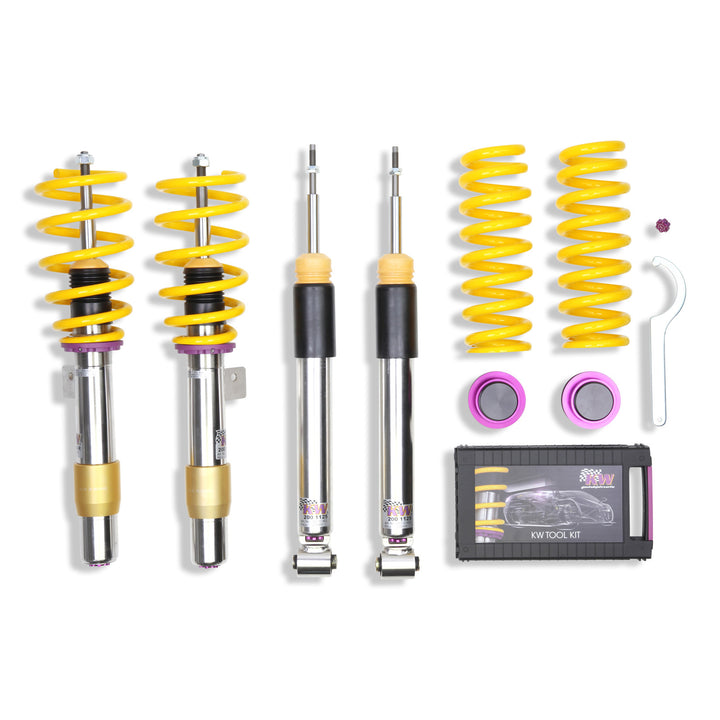

- Complete KW V3 coilover kit as supplied by KW; see the installation instructions below for the full bill of materials.
TECH RESOURCES
Additional Parts Required
- A four-wheel alignment is mandatory after installation and after any subsequent ride-height change.
- Professional installation is required; spring compressors and correct torque procedures are needed to service the struts safely.
- Check tire and wheel clearance to the strut body and to the fender before driving, especially with aftermarket wheel and tire packages.
- Optional: corner-balancing after the ride height is set.
Installation
Notes
- KW's installation instructions for order number 35220095 cover the BMW 1er M Coupé only. For a 128i, 135i or 135is, use the KW V3 kit for the standard 1-Series (order number 35220039) instead — contact Speed Logic if you need help choosing.
PART NUMBER
- 35220095
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW 1 Series M Coupe | E82 | N54 3.0L Twin-Turbo I6 | 2011 |
