aFe MACH Force-Xp 3" to 2.5" Stainless Cat-Back Exhaust – BMW M3 / M4 (G8x)

OVERVIEW

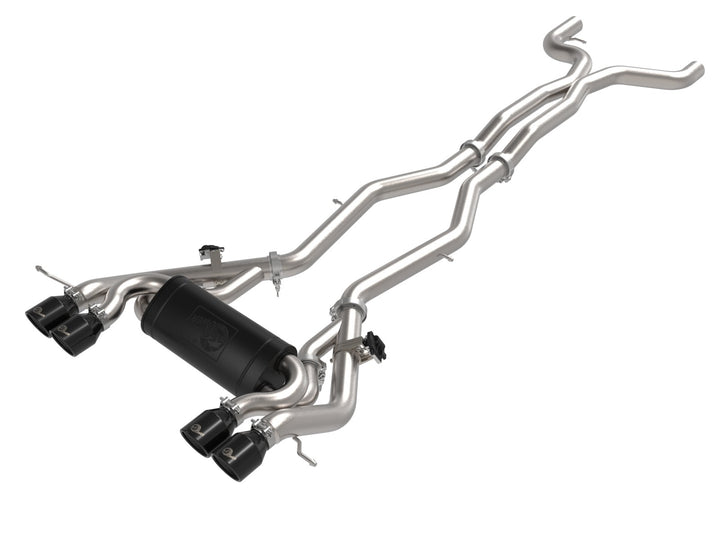

The aFe POWER MACH Force-Xp cat-back is a full 3 IN to 2-1/2 IN mandrel-bent 304 stainless steel exhaust system for the S58-powered BMW M3 and M4. An integrated mitered merge X-pipe balances and evenly distributes exhaust pulses through the system, minimizing drone while maximizing scavenging, and a high-flow stainless steel muffler unleashes the available horsepower and torque with an aggressive tone.

The system incorporates factory-style exhaust valves that reuse the vehicle's factory exhaust valve motors, so valve control behaves as it does with the OE system. State-of-the-art computer-aided design gives precise vehicle fitment, the whole system is 100% TIG-welded for race-proven strength, and factory-style hangers mount it to the factory locations. Some cutting may be required — see the instruction sheet before starting.

Finishing the system are quad 4 IN diameter clamp-on 304 stainless tips carrying the aFe POWER logo, available in polished, black or carbon fiber.

SPECS

• Tubing: 3 IN to 2-1/2 IN mandrel-bent 304 stainless steel
• Muffler: high-flow stainless steel; muffler finish may vary
• Exhaust tips: quad 4 IN diameter clamp-on 304 stainless steel with aFe POWER logo
• Tip finishes: polished (49T25404-P06), black (49T25404-B06), carbon fiber (49T25404-C07)
• Integrated mitered merge X-pipe for pulse balancing and drone reduction
• Factory-style exhaust valves — uses the factory exhaust valve motors (not included)
• 100% TIG-welded
• Computer-aided design for precise vehicle fitment
• Mounts to factory locations using factory-style hangers
• Some cutting may be required — see the instruction sheet
• Emissions: this product does not require a CARB EO#

PARTS INCLUDED

• 1x X-pipe (05-245307)
• 1x Driver side mid-pipe (05-245308)
• 1x Passenger side mid-pipe (05-245309)
• 1x Driver side tailpipe (05-245310)
• 1x Passenger side tailpipe (05-245311)
• 1x Muffler assembly (05-245312)
• 4x Exhaust tips — polished (49T25404-P06), black (49T25404-B06) or carbon fiber (49T25404-C07) depending on the part number ordered
• 2x 2-3/4" band clamps (05-41160)
• 4x 3" V-band clamps (05-41588)
• 2x 2-1/2" V-band clamps (05-410196)

TECH RESOURCES

Additional Parts Required

• Factory exhaust valve motors — required and not included. This system uses factory-style valves driven by the vehicle's existing OE exhaust valve motors, which must be transferred from the factory exhaust.
• Customer-supplied tools and consumables: standard metric hand tools, a saw or cut-off tool (some cutting may be required), and a vehicle lift or jack stands.

Installation

• aFe POWER 49-36351-B / -C / -P installation instructions (PDF) — official aFe manual, covers all three tip finishes.

Notes

• Fitment follows aFe's official installation manual, which lists G80 M3 and G82 M4 (including Competition, RWD and xDrive). Earlier store copy also listed the G83 M4 Competition convertible — confirm G83 fitment with Speed Logic before ordering.

PART NUMBER

• 49-36351-B — MACH Force-Xp cat-back with black tips
• 49-36351-C — MACH Force-Xp cat-back with carbon fiber tips
• 49-36351-P — MACH Force-Xp cat-back with polished tips
