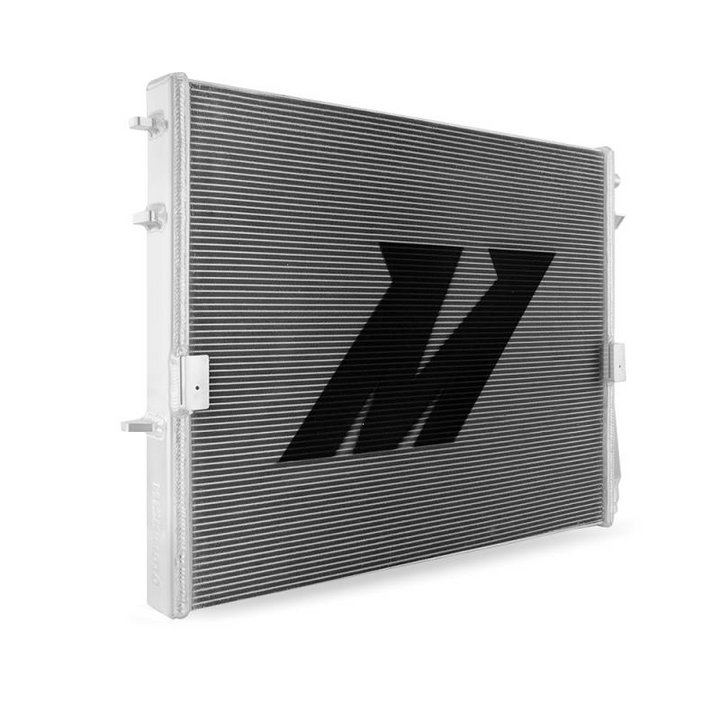

Mishimoto Performance Heat Exchanger – Toyota GR Supra (A90) / BMW Z4 (G29)

OVERVIEW

Air-to-water intercooling is standard equipment on the B58, and BMW and Toyota integrated the charge cooler directly into the intake manifold of the A90 GR Supra and G29 Z4. That maximizes charge-cooling efficiency, but the factory front-mounted heat exchanger that rejects the absorbed heat leaves room on the table. The Mishimoto Performance Heat Exchanger replaces it with a larger, stronger, all-aluminum unit.

Mishimoto redesigned the part from the ground up, discarding the plastic components and building the end tanks, core and inlet/outlet ports from aluminum with TIG-welded joints. Strutted tubes are incorporated throughout the core to resist bowing and flexing under hard cornering and sustained boost.

The core itself grew 31% in volume and 48% in external fin surface area. Combined with the dual-pass flow configuration and louvered fin design, Mishimoto recorded a 5-7°F drop in intake air temperatures along with a more consistent global intercooler coolant temperature. The heat exchanger is supplied in a natural aluminum finish and carries the Mishimoto Lifetime Warranty.

SPECS

• Direct fit for the 2020+ Toyota GR Supra 3.0L and 2019+ BMW Z4 3.0L (B58)
• 5-7°F drop in intake air temperatures over stock, per Mishimoto testing
• 31% increase in core volume over stock
• 48% increase in external fin surface area
• Dual-pass core flow configuration with louvered fin design
• Strutted tubes incorporated in the core for maximum durability
• Full aluminum, TIG-welded construction with aluminum end tanks and inlet/outlet ports
• Overall dimensions: 28.1" L × 19.7" H × 2.4" W
• Core dimensions: 24.2" L × 19.5" H × 1.6" thick, single row
• Natural aluminum finish
• Patent pending design
• Mishimoto Lifetime Warranty

PARTS INCLUDED

• (1) Mishimoto Performance Heat Exchanger
• (1) Stainless-steel stone guard

TECH RESOURCES

Additional Parts Required

• Trimming required. Mishimoto specifies that the factory transmission cooler tabs must be removed for proper fitment. No additional purchased hardware is required.
• Coolant to top off the intercooler circuit after installation (installer-supplied).
• Installer-supplied tools: 2.5mm Allen key, E14 and T30 Torx bits, 8mm / 10mm / 13mm sockets, flathead screwdriver, pick tool and a cutting tool. Mishimoto quotes roughly 5 hours for the job.

Installation

• Mishimoto MMHE-SUP-20 Performance Heat Exchanger installation guide (PDF) (hosted by Speed Logic)

Notes

• Mishimoto officially lists MMHE-SUP-20 for the 2020+ Toyota GR Supra 3.0L and 2019+ BMW Z4 3.0L (B58, chassis A90 and G29). The additional G20 and 2.0L applications are carried over from earlier listing data — please confirm fitment with Speed Logic before ordering.

PART NUMBER

• MMHE-SUP-20 — Performance Heat Exchanger, natural finish
