Mishimoto Charge Pipe Kit MMICP-SUP-20BK – Toyota GR Supra (A90)

OVERVIEW

Whether a 2020+ Toyota GR Supra is bone stock or running an upgraded turbo, the B58 has to breathe. The factory plastic charge pipe between the turbocharger and the intake manifold is adequate for daily driving, but it is a restriction and a known failure point once boost rises. The Mishimoto Performance Charge Pipe Kit replaces it with a free-flowing 3" aluminum assembly.

The kinks and pinched sections of the stock pipe are replaced by smooth mandrel-bent curves, and the couplers and flanges are designed to transition seamlessly from one component to the next. The result is up to 42% less restriction than the factory pipe. Construction is two mandrel-bent aluminum pipes with precision CNC-machined adapters for durability and exact fitment, and two pre-installed bungs can be drilled and tapped for boost sensors, nitrous or methanol injection.

The supplied coupler is built from five layers of silicone with embedded heat-resistant fibers and steel wire reinforcement to prevent ballooning under high boost pressure, and constant-tension worm gear clamps are included. The kit is a direct fit with no other modifications required and carries the Mishimoto Lifetime Warranty.

SPECS

• Direct fit for 2020+ Toyota GR Supra with the B58 engine
• Reduces restriction by up to 42% over the stock pipe
• 3" mandrel-bent aluminum piping with internal transitions for reduced turbulence
• Assembly dimensions: 22" length × 9.25" height
• Precision CNC-machined adapters for smooth flow and secure fit
• Five-layer silicone coupler with heat-resistant fibers and steel wire reinforcement
• Two pre-installed bungs that can be drilled and tapped for boost sensors, nitrous or methanol injection
• Two-piece design for easy installation
• Constant-tension worm gear clamps included; Mishimoto recommends 22 in-lbs (2.5 Nm), operating range 18-27 in-lbs
• Micro-wrinkle black powder-coated finish (wrinkle red also offered by Mishimoto)
• Mishimoto rates the install as Easy, approximately 1.5 hours
• Mishimoto Lifetime Warranty

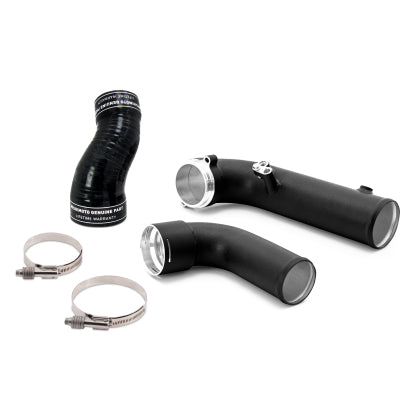

PARTS INCLUDED

• (2) Mandrel-bent aluminum charge pipes (MM2362-01, MM2362-02)
• (1) Silicone coupler with steel wire reinforcement (MM4551-01)
• (2) Constant-tension worm gear clamps (MM1533-79, MM1533-92)
• (1) M6 x 1.0 x 20mm bolt (HF6X1.0-20B)

TECH RESOURCES

Additional Parts Required

• None. Mishimoto specifies no additional hardware for this kit — it is a direct fit requiring no other modifications.
• Installer-supplied hand tools and a torque driver capable of 18-27 in-lbs for the worm gear clamps.

Installation

• Mishimoto MMICP-SUP-20 Performance Charge Pipe Kit installation guide (PDF) (hosted by Speed Logic)

Notes

• Mishimoto officially lists MMICP-SUP-20BK for the 2020+ Toyota GR Supra 3.0L (B58). The G20 and G29 applications are carried over from earlier listing data — please confirm fitment with Speed Logic before ordering.

PART NUMBER

• MMICP-SUP-20BK — Performance Charge Pipe Kit, micro-wrinkle black (this listing)
• MMICP-SUP-20 — base kit part number used in Mishimoto's installation guide

VEHICLE APPLICATIONS
