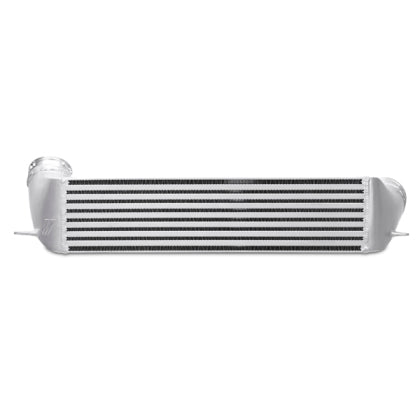

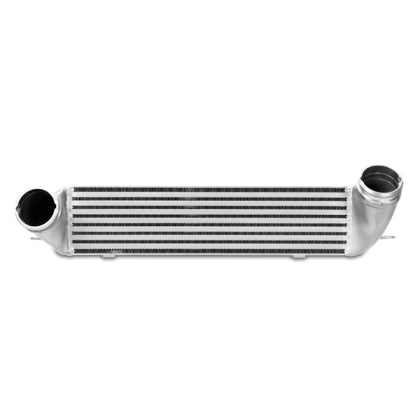

Mishimoto Intercooler – BMW 135i / 335i / 335is (N54 / N55)

OVERVIEW

The E9X-generation BMW is happy soaking up highway miles during the week and running the track at the weekend, and with modest modifications the turbocharged straight-six produces substantial power. That added power pushes the limits of the factory charge-air system: the stock tube-and-fin intercooler is prone to heat soak. Mishimoto's bar-and-plate replacement is engineered specifically for the 335i, 335xi and 135i.

The intercooler is a direct-fit unit with a 22% increase in core volume and requires no modification to the vehicle. It is built with cast end tanks and precision CNC-machined aluminum quick-disconnect fittings that mate with the factory intercooler piping, and the whole assembly is 100% aluminum with precision TIG-welding.

In Mishimoto's testing the intercooler reduced intake air temperatures by 35°F (19.45°C) and produced an increase of 20+ hp while retaining factory boost pressure across the core. Installation takes under an hour, the intercooler is offered in silver or black, it carries CARB EO # D-759, and it is covered by the Mishimoto Lifetime Warranty.

SPECS

• Direct fit for the E8X / E9X chassis with N54 / N55 engines — no modifications required
• 20+ hp increase, per Mishimoto testing
• 35°F (19.45°C) reduction in intake air temperature
• 22% increase in core size over stock
• Bar-and-plate core construction
• 100% aluminum, TIG-welded with cast end tanks
• Overall dimensions: 27.8" L × 6.8" H × 8.7" W
• Core dimensions: 20.47" L × 5.12" H × 5.31" thick
• 3" inlet and outlet with OEM-style CNC-machined quick-disconnect fittings
• Maximum recommended pressure: 40 psi
• Fin pitch: 7.5 fins per inch
• Tank wall thickness: 4 mm
• Product weight: 15.8 lbs (7.17 kg)
• Available in silver or black finish
• CARB EO # D-759
• Installation takes under one hour
• Mishimoto Lifetime Warranty

PARTS INCLUDED

• (1) Mishimoto Performance Intercooler
• (1) CARB EO sticker

TECH RESOURCES

Additional Parts Required

• None. Mishimoto specifies no additional hardware for this intercooler — it is a direct fit that reuses the factory charge piping via the supplied quick-disconnect fittings.
• Installer-supplied hand tools; Mishimoto rates the job Easy at under one hour.

Installation

• Mishimoto MMINT-E90-07 Performance Intercooler installation guide (PDF) (hosted by Speed Logic)

Notes

• Mishimoto lists this intercooler for 2007-2013 BMW 335i / 335xi / 135i applications. Confirm fitment with Speed Logic if your car falls at the edge of these ranges.

PART NUMBER

• MMINT-E90-07 — Performance Intercooler, silver finish
• MMINT-E90-07B — Performance Intercooler, black finish
