Mishimoto Oil Catch Can MMBCC-F80-15CBE – BMW M3 / M4 (F80 / F82)

OVERVIEW

The Mishimoto Baffled Oil Catch Can Kit is a direct-fit crankcase ventilation upgrade for the 2015–2020 BMW F8X M3 and M4. The S55 brought factory turbocharging to the compact M cars, and with it the long-standing tradition of blow-by. Left unchecked, oil vapor carried through the CCV system coats the charge air path and the intake valves and lowers the effective octane of the incoming charge.

The kit mounts a single can in line with the CCV system, where a 50-micron bronze filter, an internal baffle and an air diverter separate oil from the crankcase vapor. A CNC-machined lid carries inlet and outlet ports sized to match the inner diameter of the factory CCV hose, so flow is not restricted. Two direct-fit pre-molded hoses require no modification to the engine cover, and a billet aluminum bracket mounts the can in an easily serviceable position. Installation takes under 30 minutes.

Mishimoto's catch cans differ from most air-oil separator systems in two ways: they are not heated, so low-octane oil vapor and contaminated fuel vapor condense in the can rather than passing through, and they trap the blow-by permanently instead of draining it back into the oil pan. The can and filter are fully serviceable and the kit carries the Mishimoto Lifetime Warranty.

SPECS

• Patent-pending billet 6061 aluminum can sealed with Viton™ O-rings
• 50-micron bronze filter with internal baffle for oil separation
• Internal air diverter increases turbulence to improve separation
• 3 oz. can capacity for longer service intervals
• CNC-machined lid with inlet and outlet ports matched to the factory CCV hose ID
• CNC-machined anodized aluminum mounting bracket
• 3/4" CNC-machined aluminum barbed fittings
• Pre-molded direct-fit hoses; no engine cover modification required
• Non-heated, non-draining design — blow-by is trapped rather than returned to the oil pan
• Filter and can are fully serviceable
• Installs in under 30 minutes
• Mishimoto Lifetime Warranty

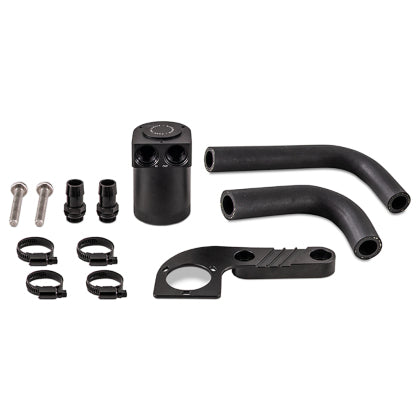

PARTS INCLUDED

• (1) Compact Baffled Oil Catch Can
• (1) Application-specific mounting bracket
• (2) Direct-fit catch can hoses
• (2) 3/4" aluminum barbed fittings
• (4) Worm gear clamps
• (1) Mounting hardware pack
• Mishimoto Lifetime Warranty

TECH RESOURCES

Additional Parts Required

• None. Mishimoto specifies no additional hardware for this catch can kit.
• Ongoing service item: the can should be drained and the bronze filter cleaned at regular intervals — both are user-serviceable.

Installation

• Mishimoto MMBCC-F80-15CBE Baffled Oil Catch Can – Installation Guide (PDF)

PART NUMBER

• MMBCC-F80-15CBE
