OVERVIEW

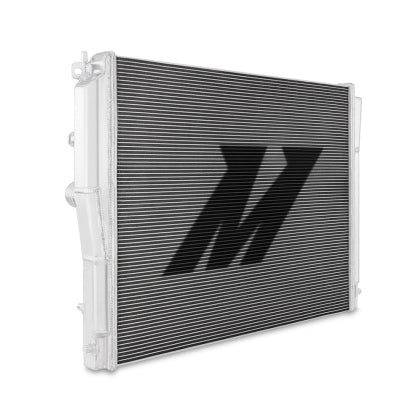

The Mishimoto Performance Aluminum Radiator is a direct-fit upgrade for the 2020+ Toyota GR Supra 3.0L. The A90 has become a tuning-community icon, but even with BMW engineering behind it, high coolant temperatures can end a track day or a hard canyon run early.
Mishimoto replaces the slim factory core and plastic end tanks with full aluminum, TIG-welded construction. Core thickness grows to 1.65", lifting core volume 31% over stock, and an updated tube-and-fin design expands external fin surface area by 57%. Strutted tubes run throughout the core for stability, sharply reducing the risk of cracks or leaks in service.
The radiator is supplied in a polished finish and carries the Mishimoto Lifetime Warranty. Mishimoto notes that maximum heat dissipation is achieved when it is run alongside the Mishimoto Performance Auxiliary Radiators.
SPECS
- 1.65" thick efficiently brazed aluminum core
- Core volume increased 31% over stock
- External fin surface area increased 57% over stock
- Full aluminum construction with TIG-welded end tanks
- Strutted tubes throughout the core for durability
- Overall dimensions: 19.7" length × 27" height × 4.3" width
- 1 row; 1.25" inlet and 1.25" outlet
- Increased coolant capacity over the factory radiator
- Polished finish
- Direct fit — no cutting, fabricating or adapters required
- Mishimoto Lifetime Warranty
PARTS INCLUDED
- (1) Performance Aluminum Radiator
- Mishimoto Lifetime Warranty
TECH RESOURCES
Additional Parts Required
- None. Mishimoto specifies no additional hardware for this radiator.
- Recommended pairing for maximum cooling: Mishimoto Performance Auxiliary Radiators (MMRAD-SUP-20A)
- Consumable: fresh coolant is required to refill the system after installation.
- Installer-supplied hand tools, a coolant funnel and a drain pan are required.
Installation
PART NUMBER
- MMRAD-SUP-20
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| Toyota GR Supra | A90 | B58 3.0L Turbo I6 | 2020–2022 |
