Moton 2-Way Clubsport Coilovers – BMW M2 / M3 / M4 (G87 / G8X) RWD

OVERVIEW

The Moton 2-Way Clubsport is a motorsport-grade monotube coilover system for the rear-wheel-drive G87 M2, G80 / G81 M3 and G82 / G83 M4, with independently adjustable compression and rebound damping plus ride-height adjustment. Built by Moton (AST Suspension) in the Netherlands to the same standards used in professional GT and touring-car racing, it is the step up from Moton's single-adjustable 1-Way Series for cars that split time between the street and real track days.

This listing is the rear-wheel-drive kit only. M3 Competition xDrive and M4 Competition xDrive use a different Moton part number — see the Moton 2-Way Clubsport Coilovers – BMW M3 / M4 Competition xDrive (G80 / G82).

SPECS

• Monotube damper, 2-way adjustable: independent compression and rebound, 15 positions each
• External remote reservoirs for consistent damping and fluid temperature control
• Independent ride-height adjustment, front and rear
• Elevated top guide with helper piston to reduce side-load friction and internal wear
• Camber-adjustable front top mounts and solid rear top mounts (where applicable)
• Application-specific valving and spring rates; fully rebuildable and revalveable
• Manufactured by AST / Moton in the Netherlands

PARTS INCLUDED

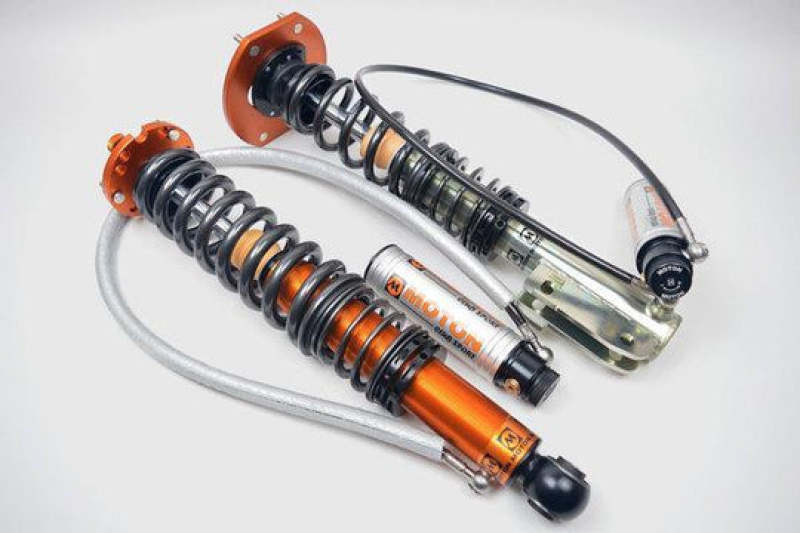

• (4) Moton 2-Way Clubsport dampers with remote reservoirs
• Application-specific springs
• Front and rear top mounts
• Mounting hardware as supplied by Moton

TECH RESOURCES

Required Extras

• None. No additional hardware or accessories are required beyond what is included with this kit.

Installation

• RWD kit only — do not order for an xDrive car.
• Moton does not publish a public installation PDF; kits ship with application-specific setup notes from Moton. Installation should be performed by a shop experienced with motorsport coilovers, followed by a four-wheel alignment.
• Speed Logic offers in-house installation and alignment — request an appointment.
• Fitment questions before ordering? Contact Speed Logic.
• Looking for single-adjustable? See the Moton 1-Way Series Coilovers – BMW M2 / M3 / M4 (G87 / G8X).

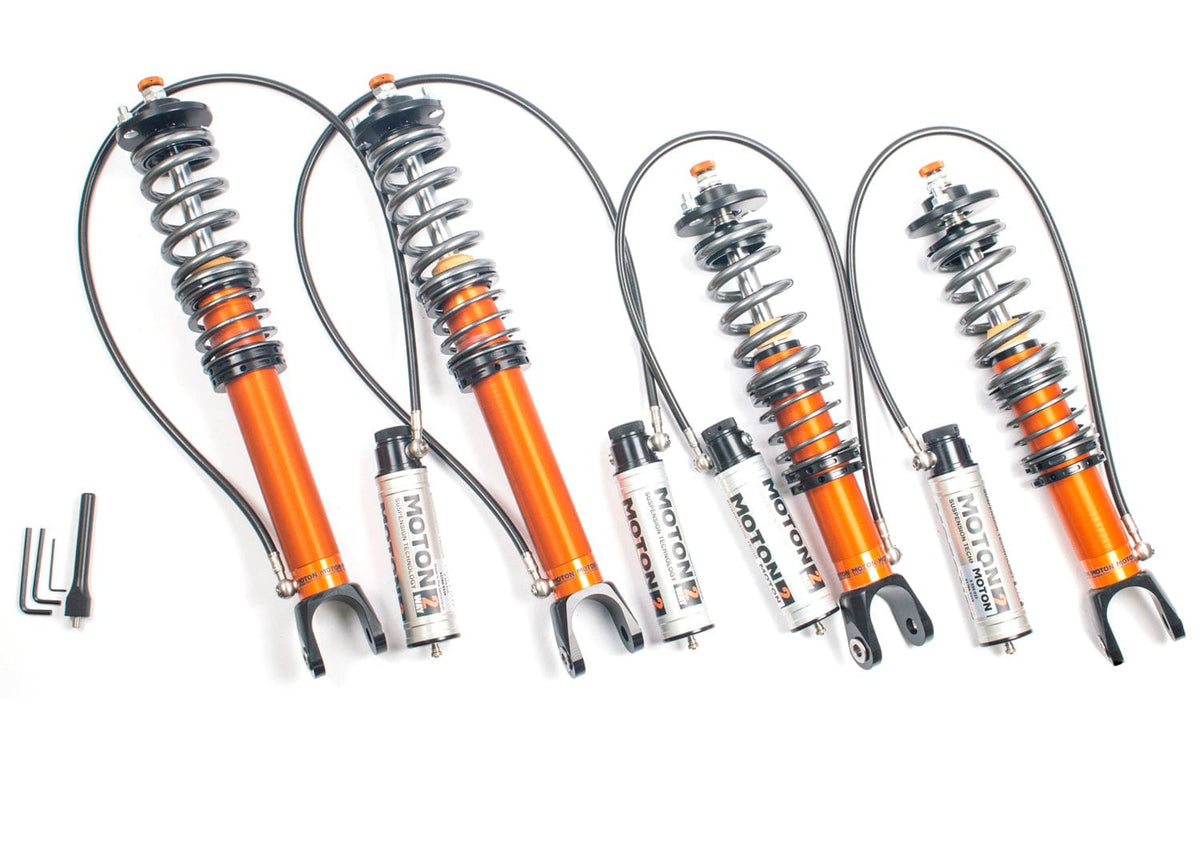

• Need more adjustment? See the Moton 3-Way Motorsport – M2 / M3 / M4 (G87 / G8X) RWD.

PART NUMBER

• M 505 185SD — BMW M2 / M3 / M4 G87 / G8X, RWD

VEHICLE APPLICATIONS
