Precision Raceworks G8X S58 Upgraded Hybrid Primary Fuel Pump

OVERVIEW

The S58 in the G8X M2, M3 and M4 and the F97 / F98 X3 M and X4 M makes big power on a tune alone, and E85 or upgraded turbos quickly use up the factory low pressure pump. When it runs short, rail pressure falls under load and the DME pulls timing.

The Precision Raceworks G8X S58 Upgraded Hybrid Primary Fuel Pump keeps the OEM brushless pump in the bucket and adds a Walbro pump outside it on a billet bracket. Stage 2 adds a Walbro 450 for about 450 LPH. Stage 2.5 adds a Walbro 525 for about 486 LPH, plus a pre-made plug-and-play tank-to-engine line for G8X cars, high-flow quick connects and an inline filter. No aftermarket EKP is needed.

SPECS

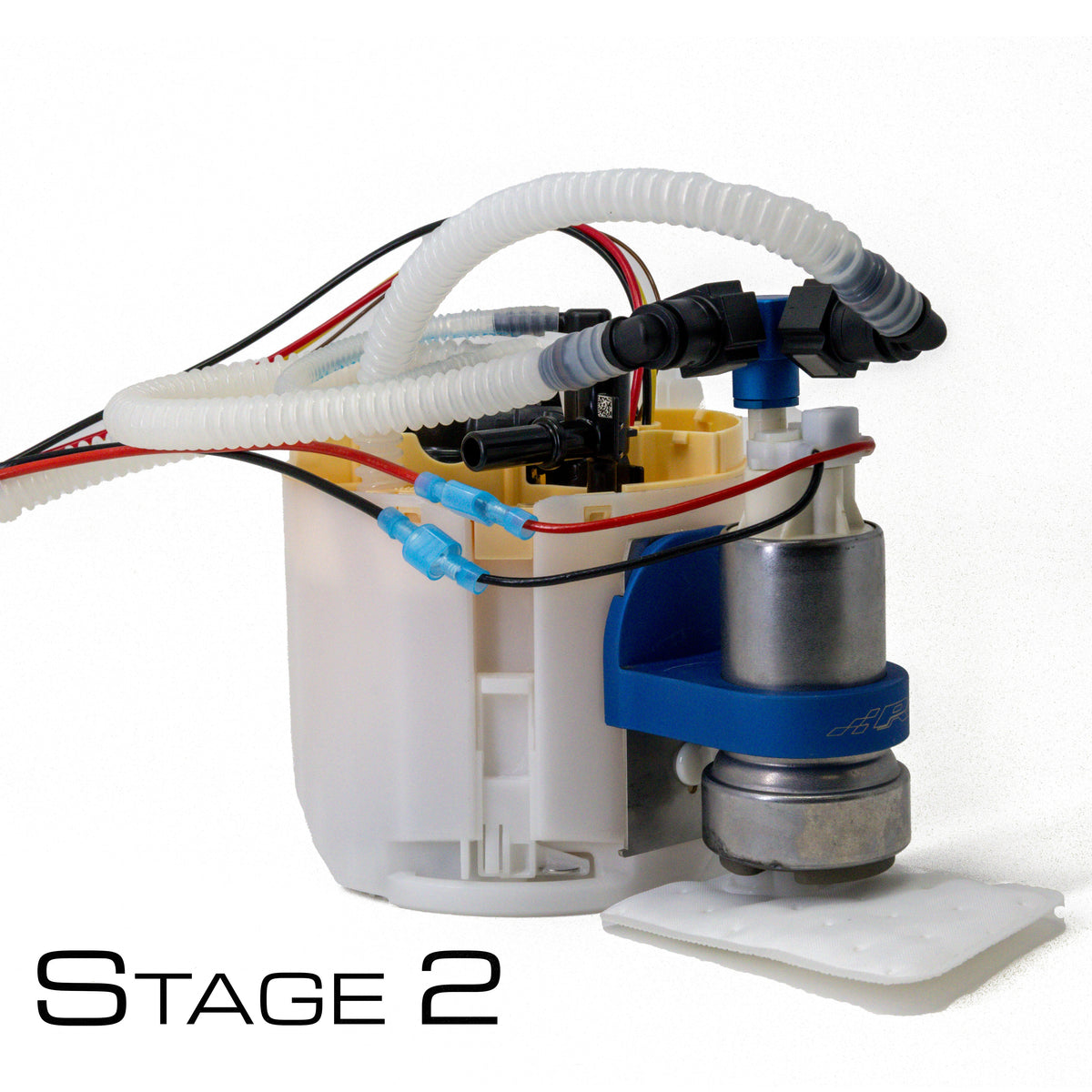

• Stage 2: about 450 LPH at 5 bar (72 psi), 50% over stock, OEM brushless + Walbro 450 (F90000274); rated 850 whp on pump gas / 800 whp on 100% E85; 3.8 lbs added pump weight

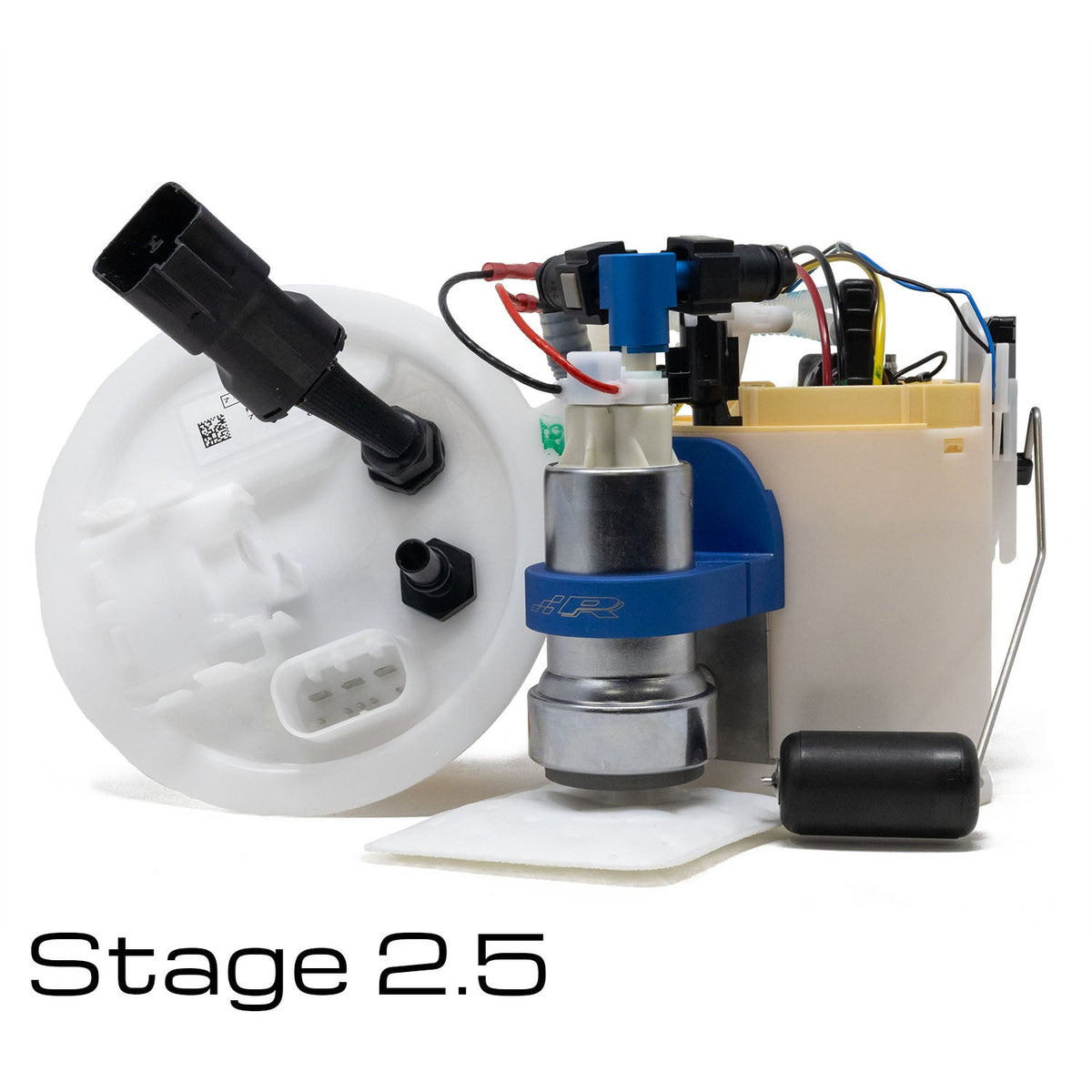

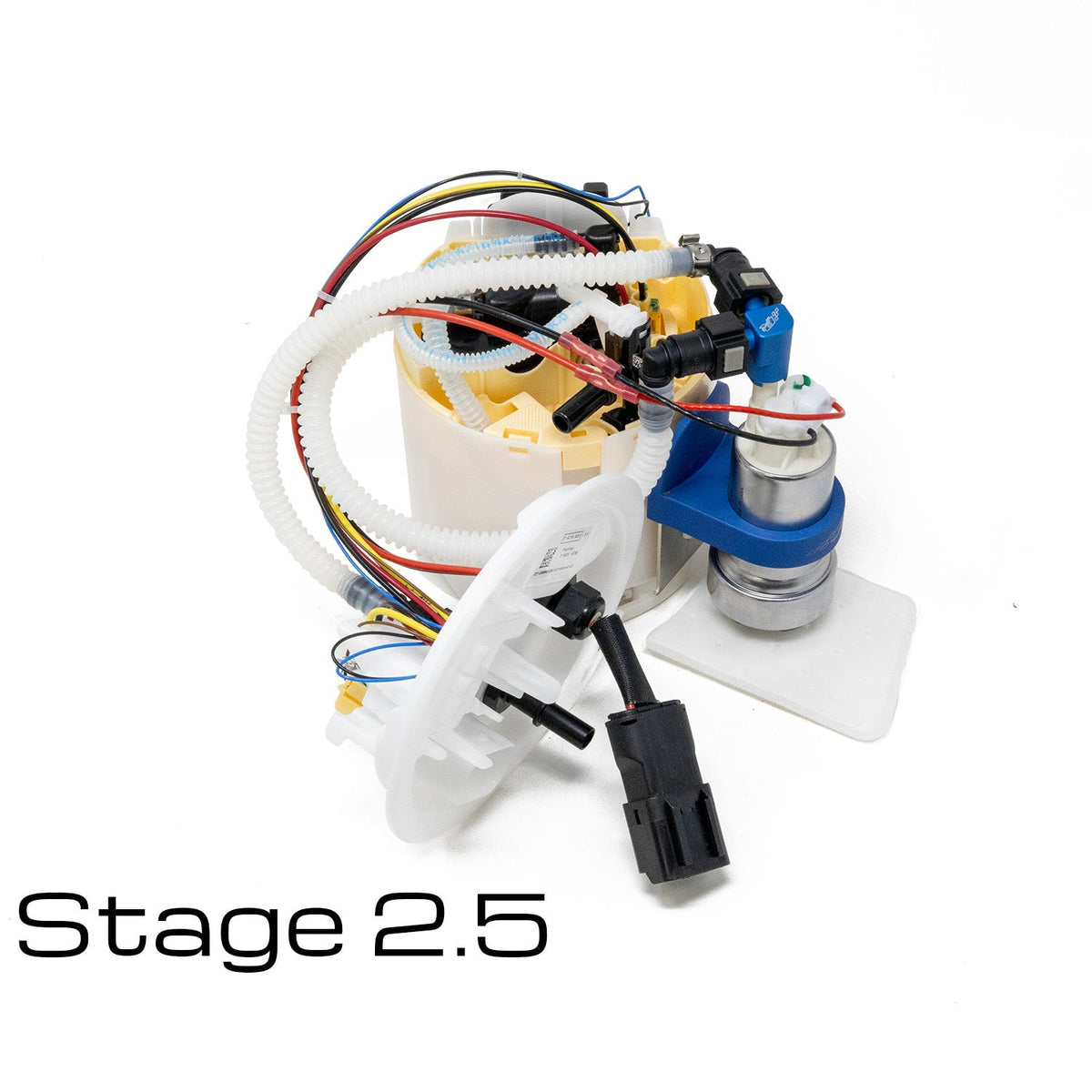

• Stage 2.5: about 486 LPH at 5 bar, 62% over stock, OEM brushless + Walbro 525 (F90000285); rated 950 whp / 900 whp E85; 3.8 lbs pump + 2.5 lbs lines
• Flow tested at 13.5 V
• No aftermarket EKP required

PARTS INCLUDED

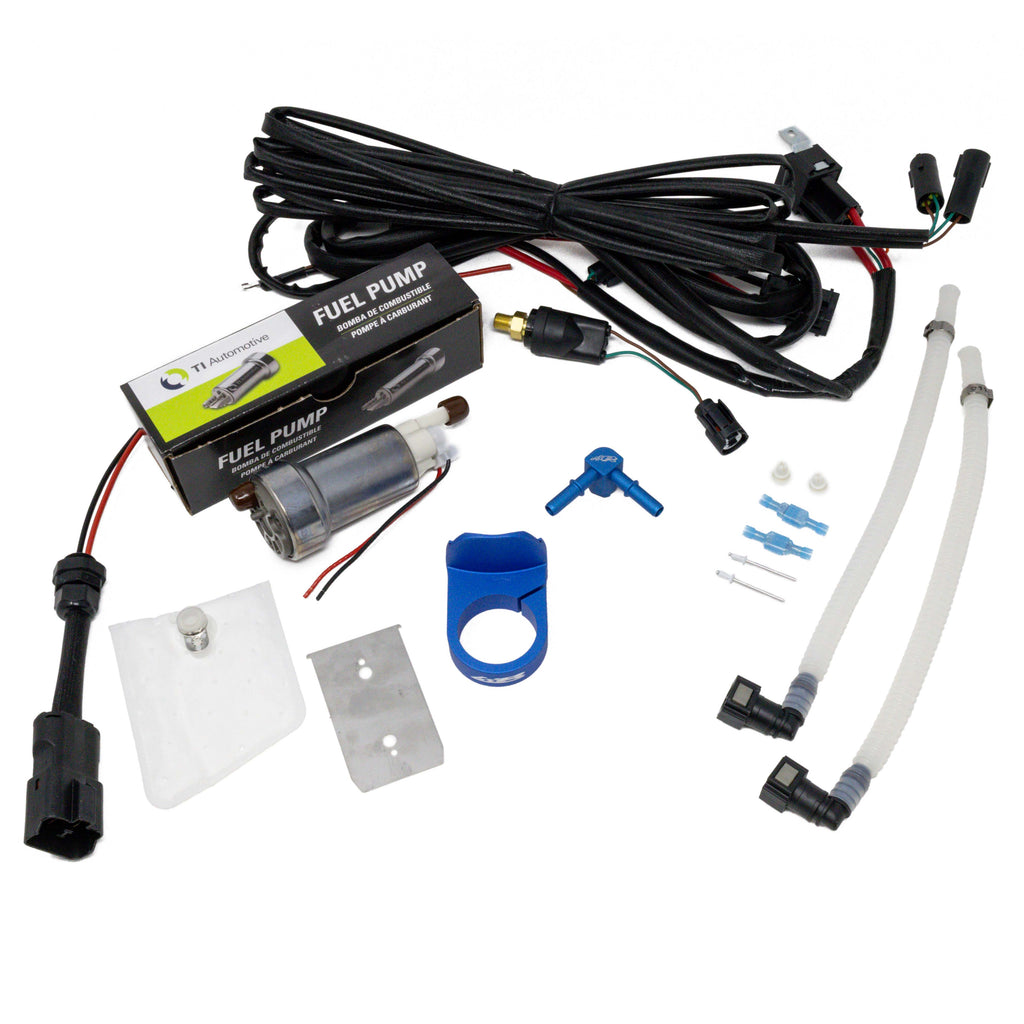

• Stage 2: Walbro 450 (F90000274) fuel pump, billet fuel pump mounting bracket, pump activation harness

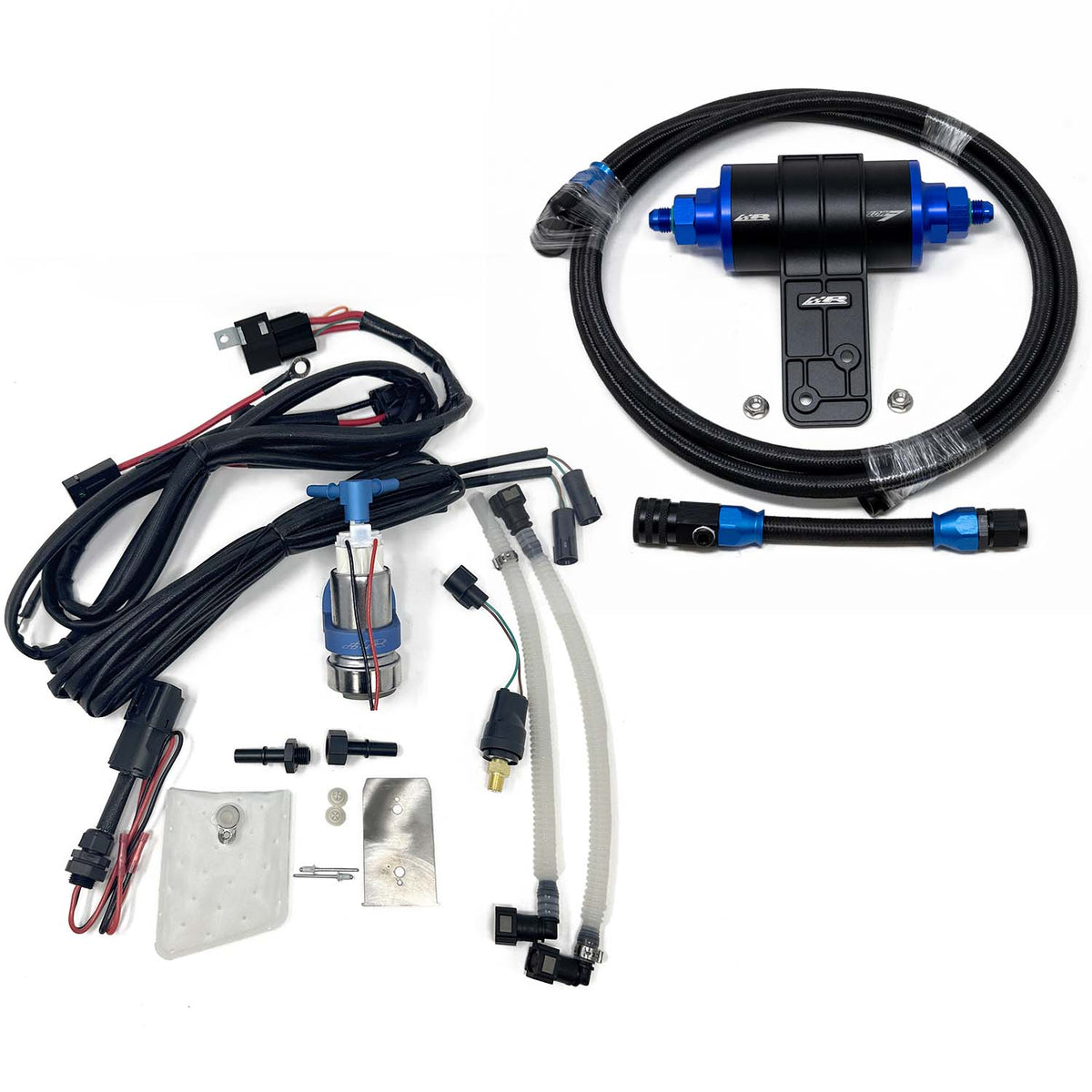

• Stage 2.5: Walbro 525 (F90000285) fuel pump, billet fuel pump mounting bracket, high-flow fuel quick connects for the top hat, upgraded tank-to-engine fuel line (pre-made and plug-and-play for G8X), 10 micron USA-made inline fuel filter, pump activation harness

TECH RESOURCES

Required Extras

• No additional parts are required; the kit is complete as supplied (no aftermarket EKP controller needed).
• Optional for builds adding port injection or a 1:1 regulator: Precision Raceworks G-Series Billet Fuel Pump Top Hat (601-0316) — sold separately (not stocked by Speed Logic). The alternative to a hybrid pump is the Precision Raceworks Stand-Alone AFS: M3 / M4 (G80 / G82 / G83), M2 (G87) or X3 M / X4 M (F97 / F98).
• Matching plug-and-play billet top hat harness for the top hat above, sold separately (not stocked by Speed Logic).
• Optional replacement pump activation harness: Precision Raceworks 201-0049, sold separately (not stocked by Speed Logic).

Installation

• Hybrid Kit Stage 2 Installation Guide (PDF)
• Hybrid Kit Stage 2.5 Installation Guide (PDF)
• Prefer to have it fitted? Contact us for Speed Logic professional installation.

Notes

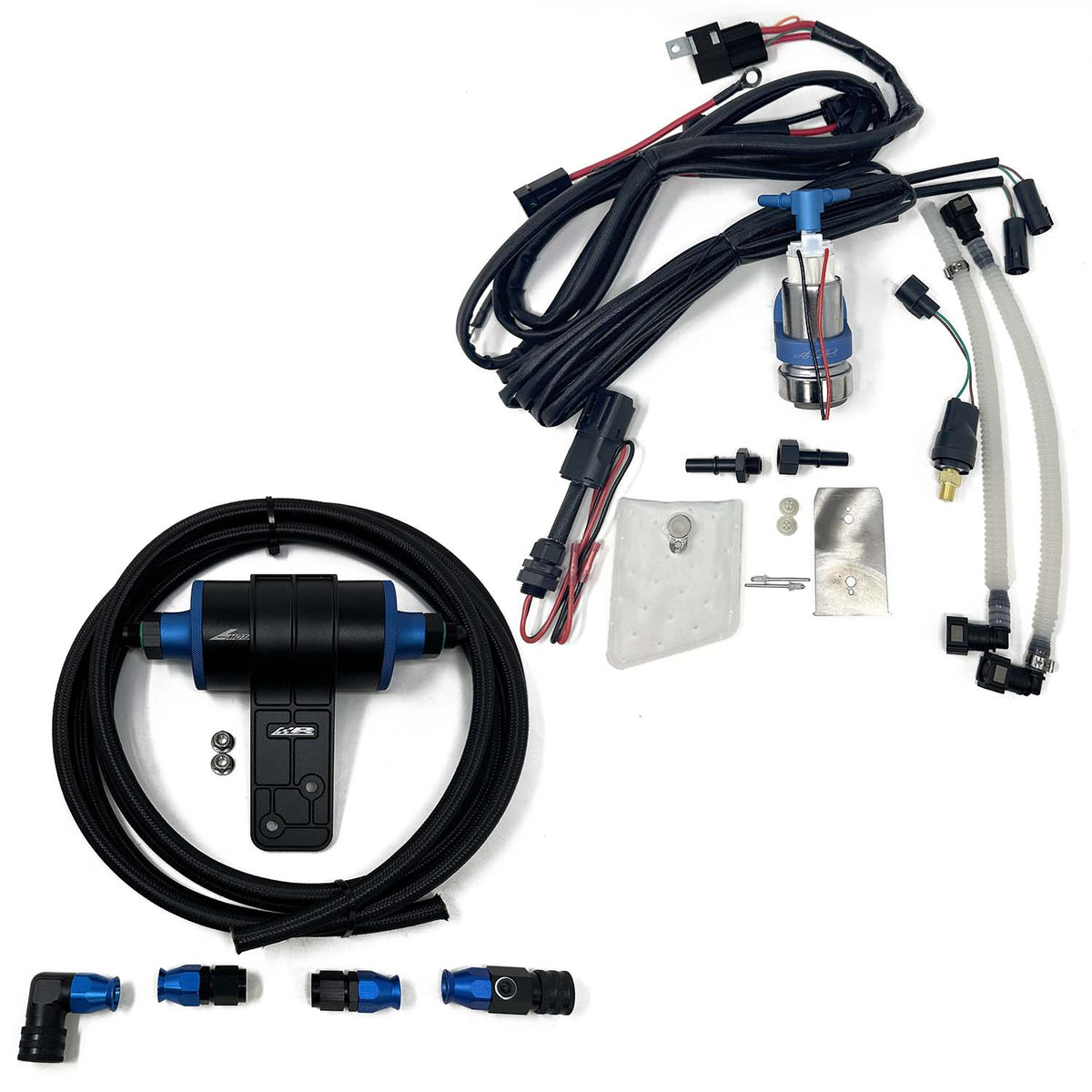

• The Universal-fitment S58 kits (601-0289-S58 Stage 2, 622-0277-S58 Stage 2.5 with a cut-to-fit 110 in. line set, quick connects and AN6 fittings) are available to order — contact us for pricing. The stocked Stage 2.5 line is pre-made for G8X cars; X3 M / X4 M owners should contact us to confirm the right line kit before ordering Stage 2.5.
• Precision Raceworks warns that a fuel filter must sit after every electric pump; Stage 2.5 includes one, and Stage 2 builds should add one to protect the HPFP and injectors.
• B58 G-chassis cars and the GR Supra use the Precision Raceworks G-Series B58 hybrid pump.
• Price is for the item selected only; labor is not included.
• Confirm your engine code before ordering.

PART NUMBER

• 601-0289-G8x — Stage 2, G8X
• 622-0284-G8x — Stage 2.5, G8X
• 601-0289-S58 — Stage 2, Universal (contact us for pricing)
• 622-0277-S58 — Stage 2.5, Universal (contact us for pricing)
