Precision Raceworks X3 / X4 (F25 / F26) High Performance Low Pressure Fuel Pump

OVERVIEW

The F25 X3 and F26 X4 share their engines with the F3X cars but use their own fuel tank and pump bucket, so the standard F-Series pump does not fit. The factory pump is sized for stock power and is not rated for 100% E85.

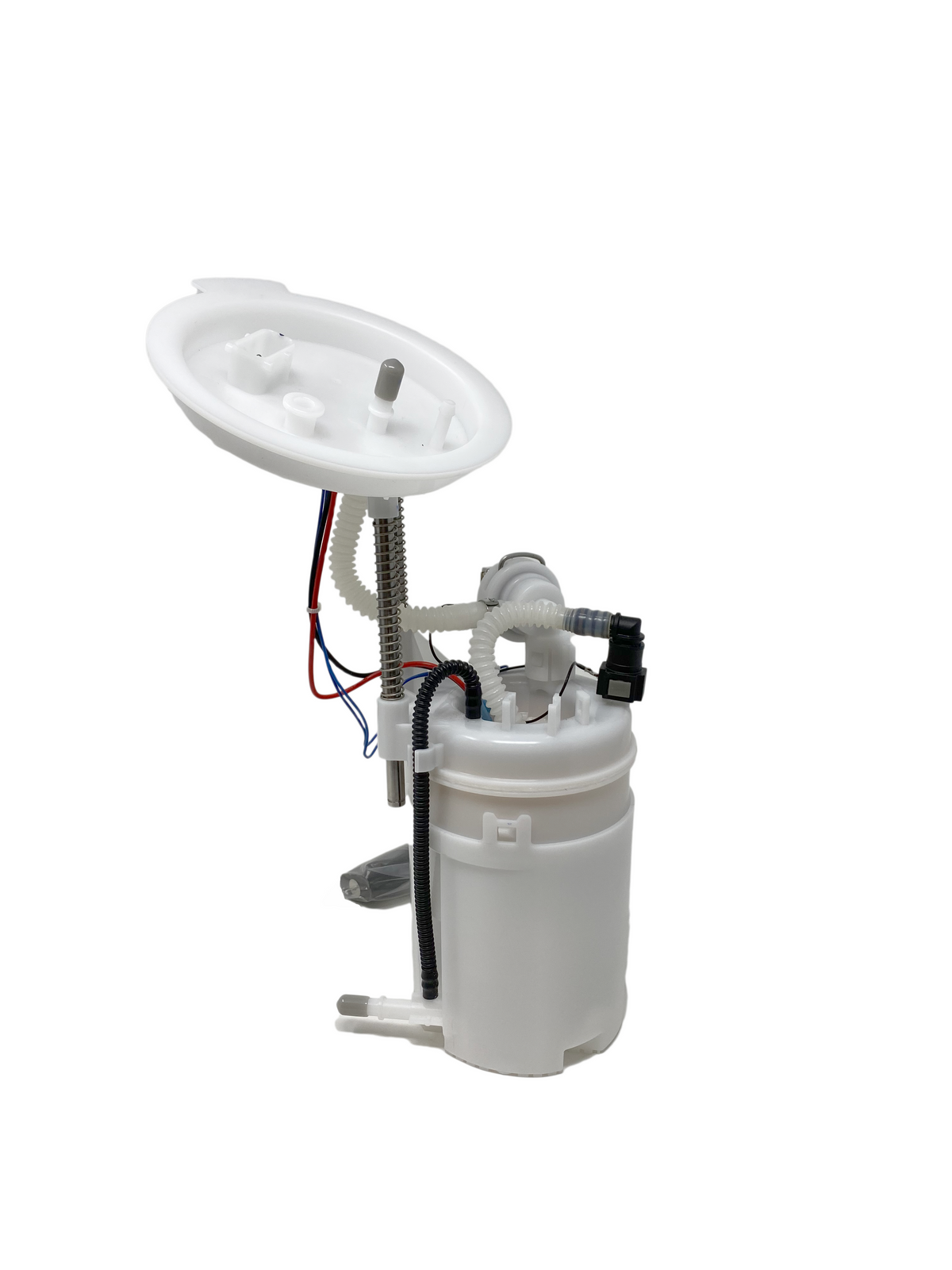

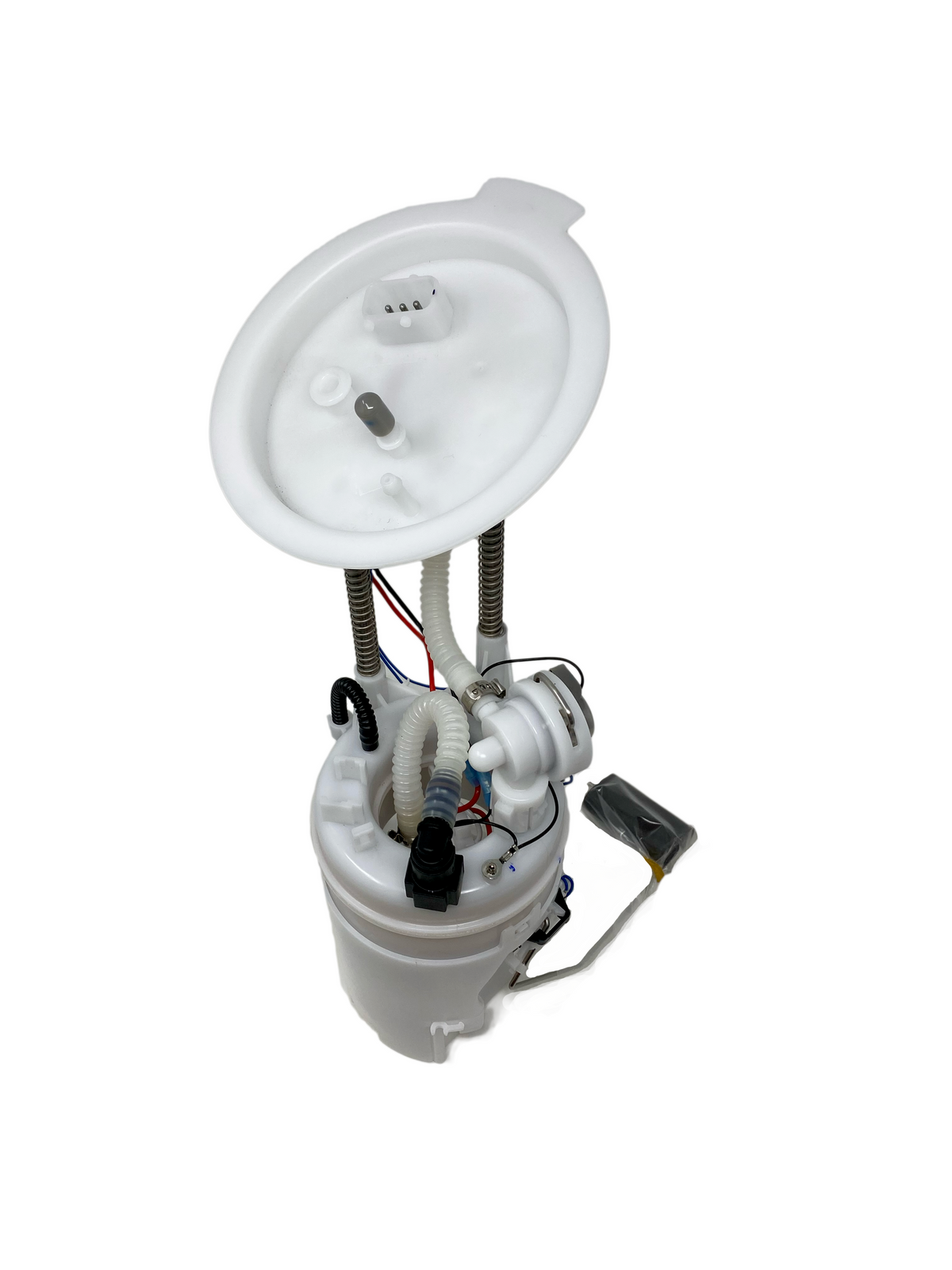

The Precision Raceworks X3 / X4 (F25 / F26) High Performance Low Pressure Fuel Pump is a drop-in replacement: a new OEM-style bucket assembly with a Walbro pump pre-installed, a new sending unit and new filters. Stage 2 uses a Walbro 450 for builds to 575 whp, and Stage 2.5v2 uses a Walbro 535 for 675 whp. There are no wires to cut or splice, nothing to assemble and no core charge.

SPECS

• Stage 2: 2.2 LPM, Walbro 450 (F90000274); rated 575 whp on pump gas / 500 whp on 100% E85
• Stage 2.5v2: 3.5 LPM, Walbro 535 (F90000295); rated 675 whp / 600 whp E85
• Compatible with any blend of E85 (the factory BMW pump is not rated for 100% E85)
• No aftermarket EKP required
• No core charge

PARTS INCLUDED

• Both stages: new OEM-style fuel pump bucket assembly with the Walbro pump pre-installed, new fuel sending unit (level sensor), new primary and secondary fuel filters

TECH RESOURCES

Required Extras

• No additional parts are required; the kit is complete as supplied (no aftermarket EKP controller needed).

Installation

• Installation instructions are supplied with the kit; Precision Raceworks does not publish a public install guide for this part. The pump is a drop-in bucket assembly with no wires to cut or splice.
• Prefer to have it fitted? Contact us for Speed Logic professional installation.

Notes

• Fits F25 X3 and F26 X4 with the N20 or N55 only; it does not fit F3X sedans and coupes or the G01 / G02 X3 / X4.
• Price is for the item selected only; labor is not included.
• Confirm your engine code before ordering.

PART NUMBER

• 601-0236 — Stage 2
• 601-0222 — Stage 2.5v2

VEHICLE APPLICATIONS
