Speed Logic Upgraded 4-Pin Crank Hub – BMW M2 Comp / M3 / M4 (S55 F8x)

OVERVIEW

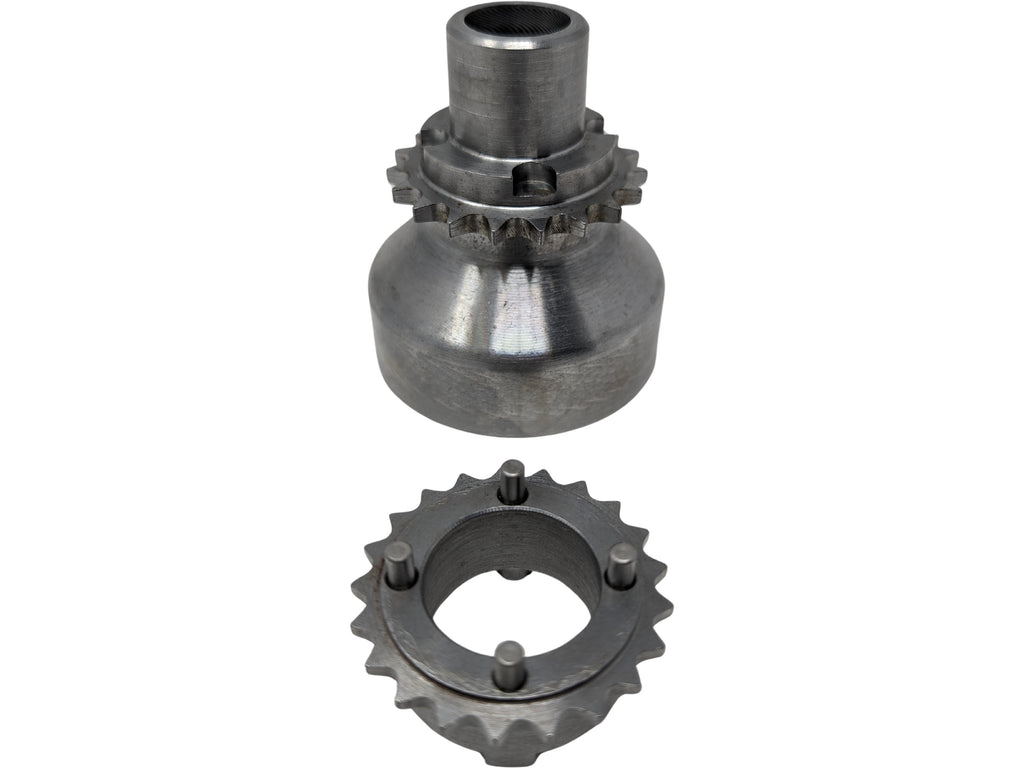

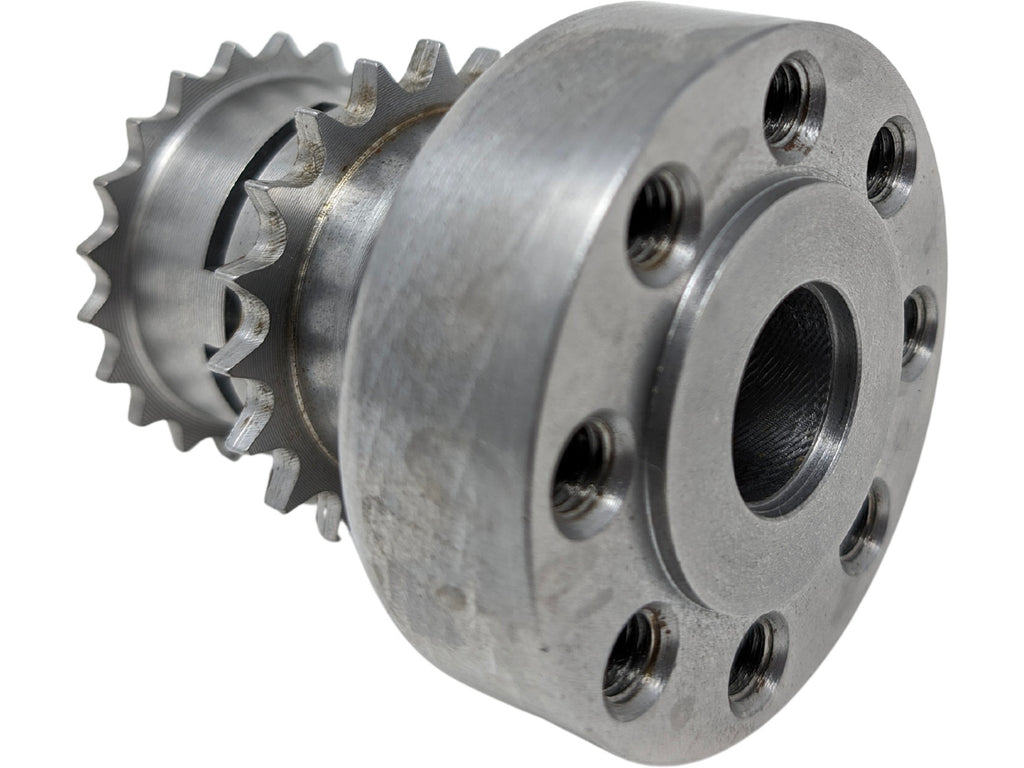

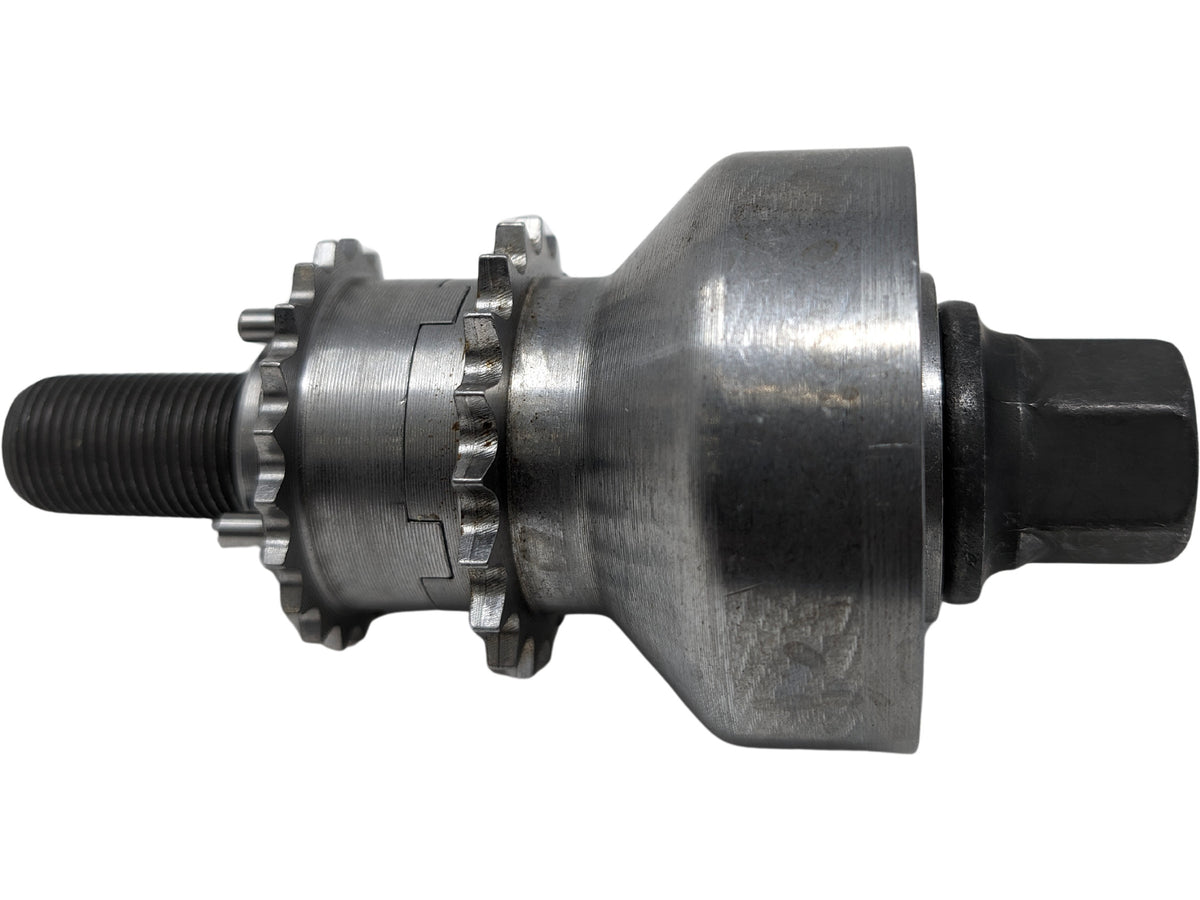

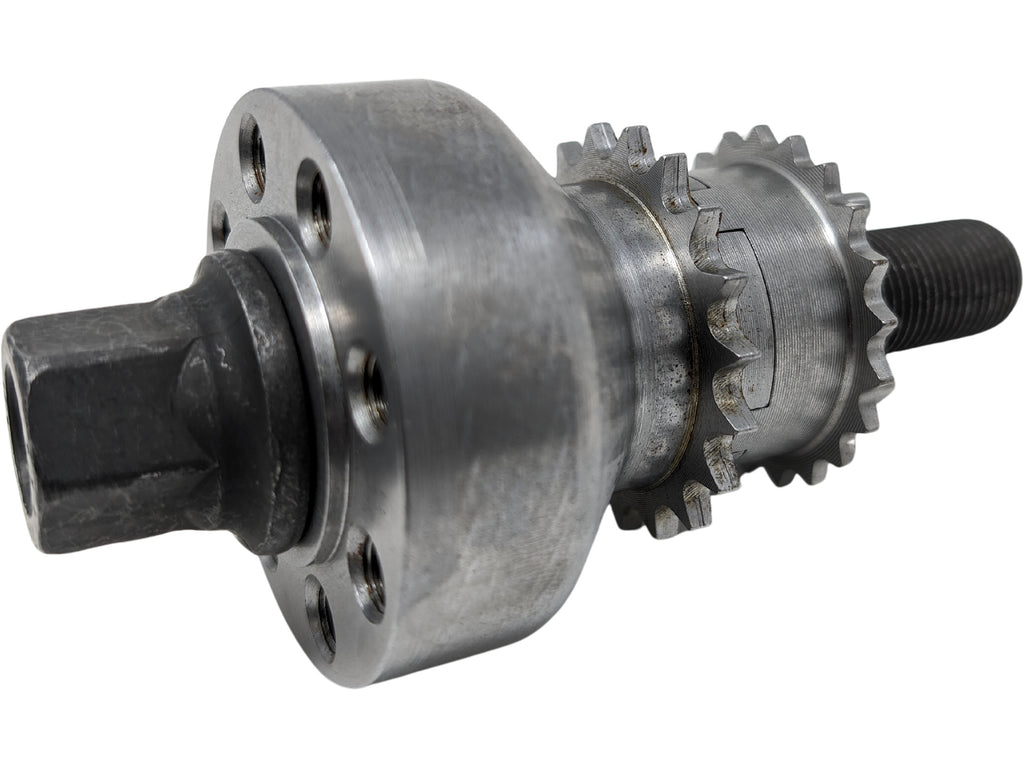

Crank hub failure is one of the most reported issues plaguing the S55 engine - when the hub slips or spins the engine skips timing, which can cause catastrophic engine and valvetrain damage. The Speed Logic 4-pin crank hub uses a keyed timing sprocket hub assembly together with a 4-pin oil pump sprocket that locks into the nose of the crankshaft, a significant upgrade over the stock design, which relies on friction alone to keep the engine in time. It is proudly made and machined in the USA, and installation should be carried out only by a trained technician using the correct specialty tools.

SPECS

• Keyed timing sprocket hub assembly
• 4-pin oil pump sprocket that locks into the nose of the crankshaft
• Upgrade over the factory design, which relies on friction alone to hold engine timing
• Includes the drill fixture tooling required to pin the crankshaft
• Made and machined in the USA
• Professional installation required - specialty tools needed; improper installation can result in permanent engine damage

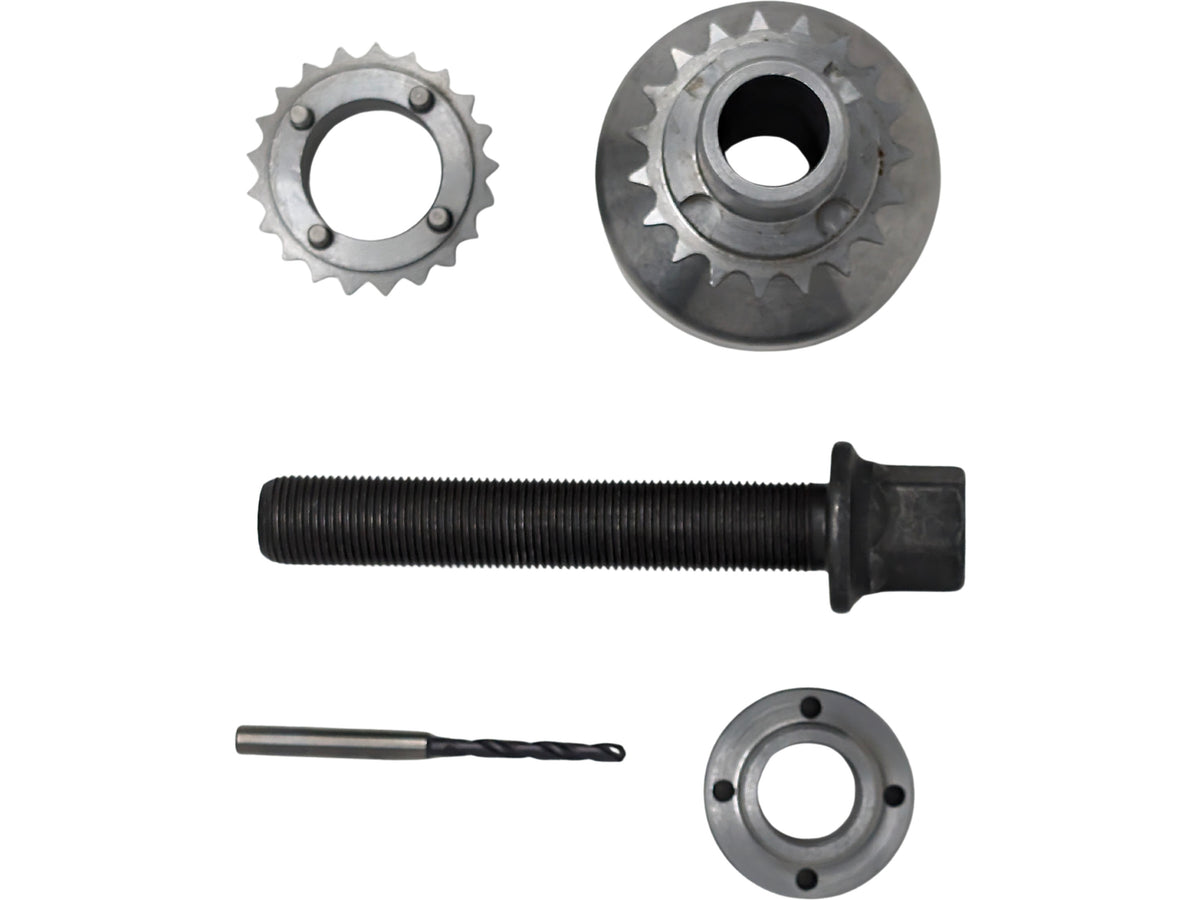

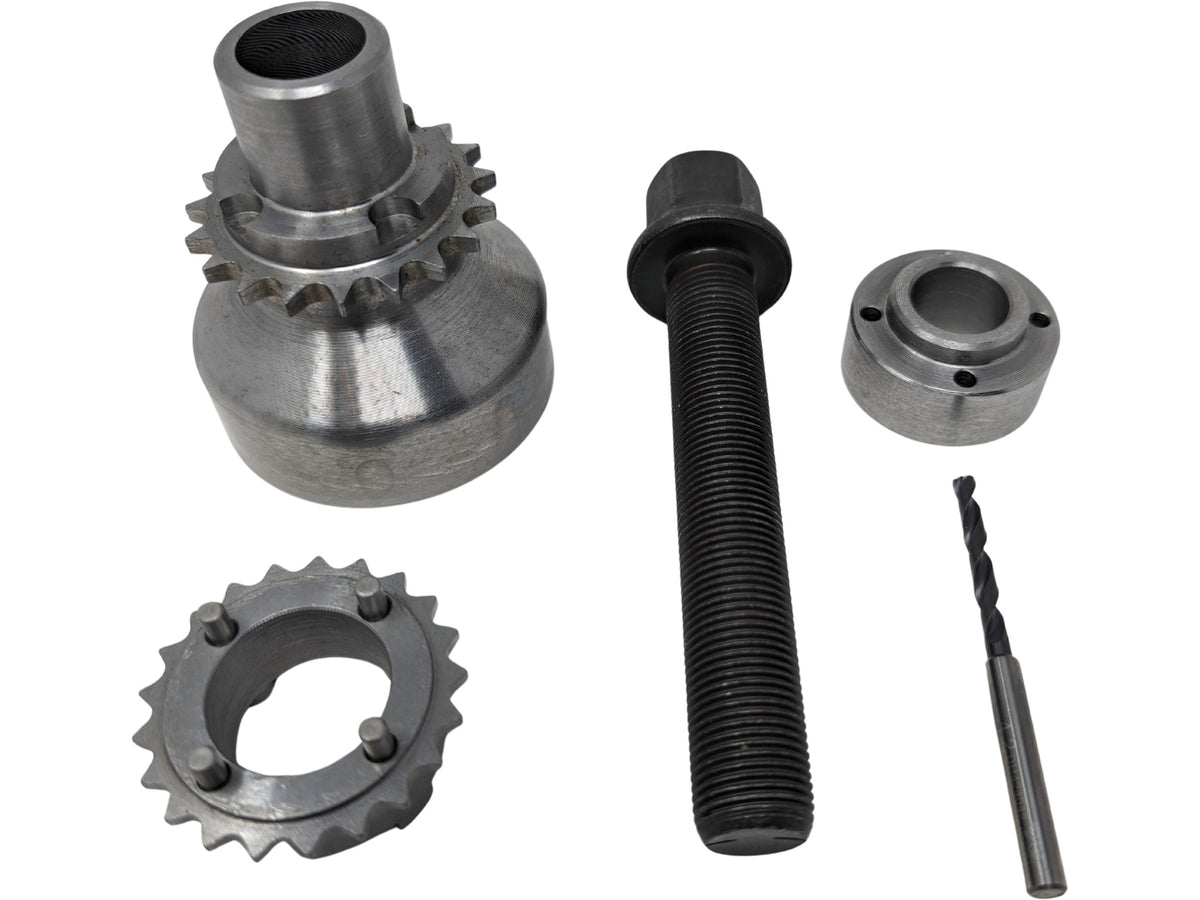

PARTS INCLUDED

• Crank hub timing assembly
• 4-pin oil pump sprocket
• OEM crank bolt
• Specialty drill bit
• Drill fixture tool
• Drill fixture bolt

TECH RESOURCES

Additional Parts Required

• None. The kit ships with the OEM crank bolt, drill bit and drill fixture tooling required to complete the job.
• Professional installation by a trained technician, plus the workshop tooling needed for front-of-engine timing work, is required. Speed Logic performs this installation at our Southern California facility - call (888) 564-4215 or email info@speedlogic.com to schedule an appointment.

Installation

• No installation document is published for this crank hub - it is not a DIY part and must be installed by a trained professional technician. Our team is available to answer questions or to carry out the installation for you.

Notes

• Speed Logic highly recommends this crank hub upgrade only be installed by a trained professional technician. Specialty tools are required to complete this installation. Improper installation can result in permanent engine damage.
• This crank hub is for S55 engines with the 4-pin oil pump sprocket design. Speed Logic does not publish a part number for it, so no part number is listed.
