Speed Logic Wheel Spacers w/ 10 Extended Bolts – BMW E-Series

OVERVIEW

Speed Logic Wheel Spacers for E-Series BMWs push the wheels out to fill the arch, giving the car a more aggressive stance while improving handling and sharpening the way it sits. They are CNC machined from high-grade 7075-T6 aluminum alloy and anodized black for the best protection, and each box contains a pair of fully hub-centric spacers along with extended Grade 10.9 replacement bolts. Sizes run from 5mm to 20mm, and two sets are needed to cover the whole car.

SPECS

• CNC machined from high-grade 7075-T6 aluminum alloy
• Black anodized finish for corrosion protection
• Available in 5mm, 10mm, 12mm, 15mm, 18mm and 20mm thicknesses
• Bolt pattern: 5x120
• Center bore: 72.6mm, fully hub-centric front and rear
• Includes 10 extended M12 x 1.5 cone seat lug bolts, Grade 10.9 zinc coated
• Torque: 105 ft-lb
• Supplied as a pair (2 spacers) - two sets are required to cover all four corners of the car

PARTS INCLUDED

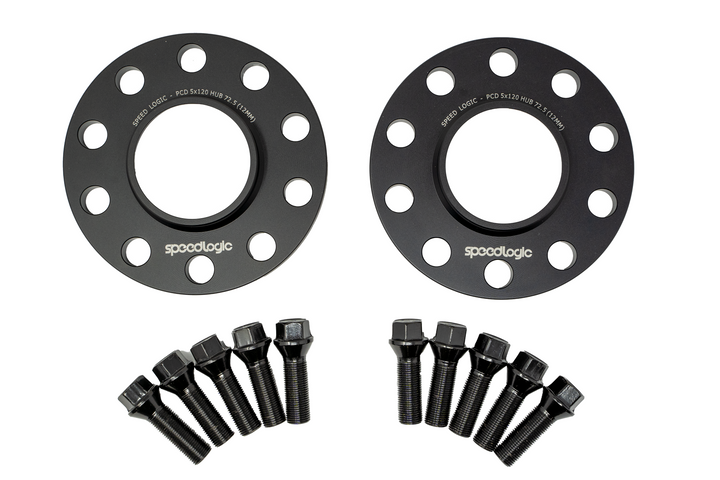

• (2) Speed Logic wheel spacers in the thickness selected
• (10) Extended M12 x 1.5 Grade 10.9 cone seat lug bolts

TECH RESOURCES

Additional Parts Required

• None. The extended lug bolts needed to mount the wheels over the spacers are supplied in the box.
• Order two sets if you are spacing all four corners - one set covers two wheels.
• A torque wrench is supplied by the installer; torque the wheel bolts to 105 ft-lb and re-check after the first drive.

Installation

• No installation document is published for these spacers. They fit between the hub and the wheel and are secured with the supplied extended bolts, and our team is available to help if you have questions about sizing or fitment.
• Bolt length is matched to spacer thickness - do not mix up bolts between different spacer sizes.

Notes

• Recommended for most E chassis cars: 10-12mm front and 12-15mm rear.
• 15mm, 18mm and 20mm spacers may require slight inner fender rolling on the rear of some E chassis cars, and a flush fitment may require rolled rear fenders. Results vary with wheel, tire size and offset.
• Does not fit the E39 5 Series or the X5 / X6.
• Each box covers two wheels - order two sets for the full car.
